Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12

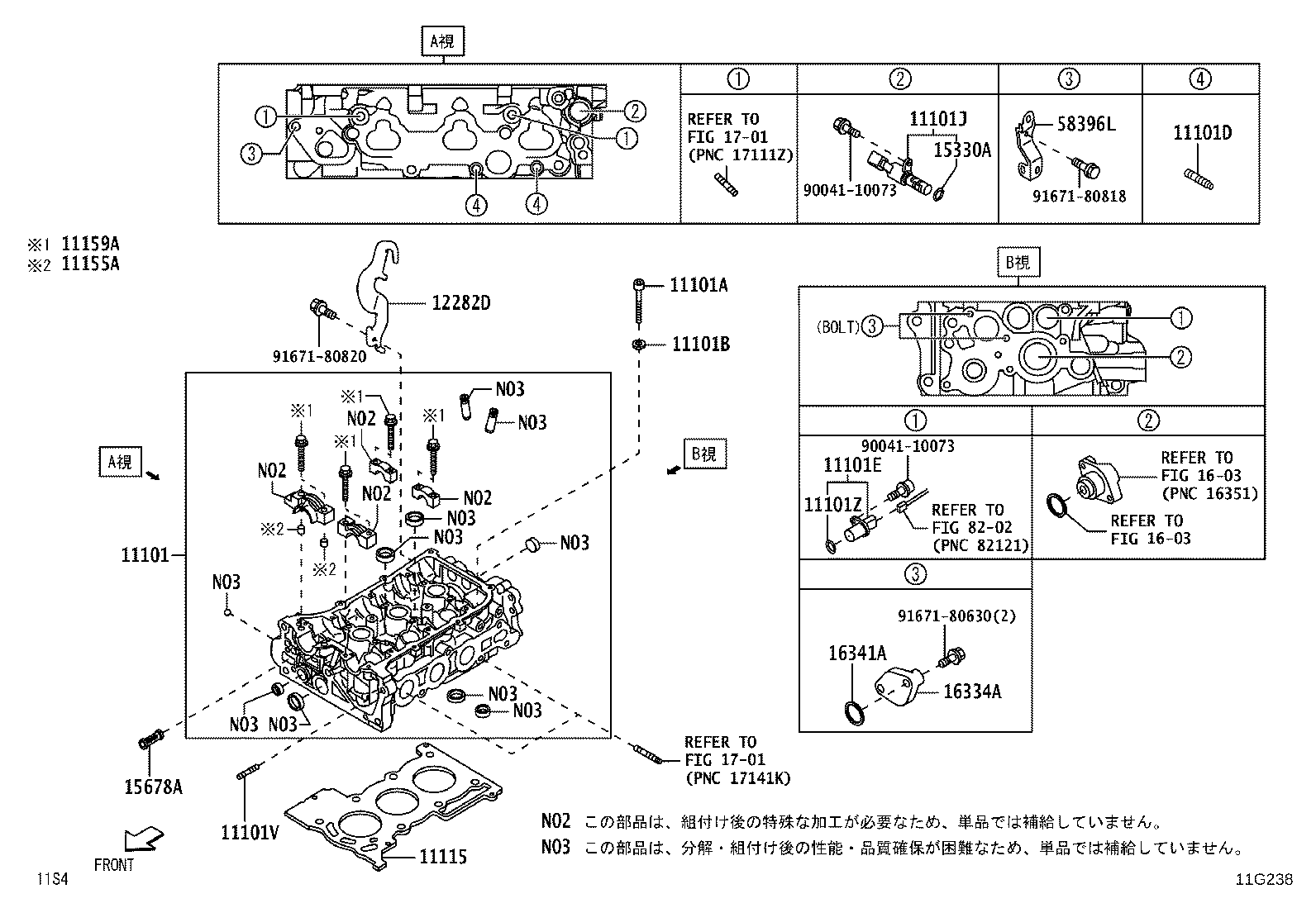

Cylinder Head
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101D | Bolt, Stud(FOR WATER OUTLET) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101V | Bolt(FOR CYLINDER HEAD SET SUB) |
| 11101Z | O Ring, Cam Position Sensor |
| 11115 | Gasket, Cylinder Head |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12161 | Tube, Oil Filler |
| 12166 | Hose, Oil Filler |
| 12282D | Hanger, Engine, NO.2 |
| 12631A | Bracket, Engine Cover |
| 12632 | Bracket, Engine Cover, NO.2 |
| 12633 | Bracket, Engine Cover, NO.3 |
| 12634 | Bracket, Engine Cover, NO.4 |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678A | Filter, Oil Control Valve |
| 16334A | Cover, Water Outlet Housing |
| 16341A | Gasket, Water Outlet |
| 58396L | Bracket, Wire Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
