Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

24 part groups · 3 illustrations

Illustrations

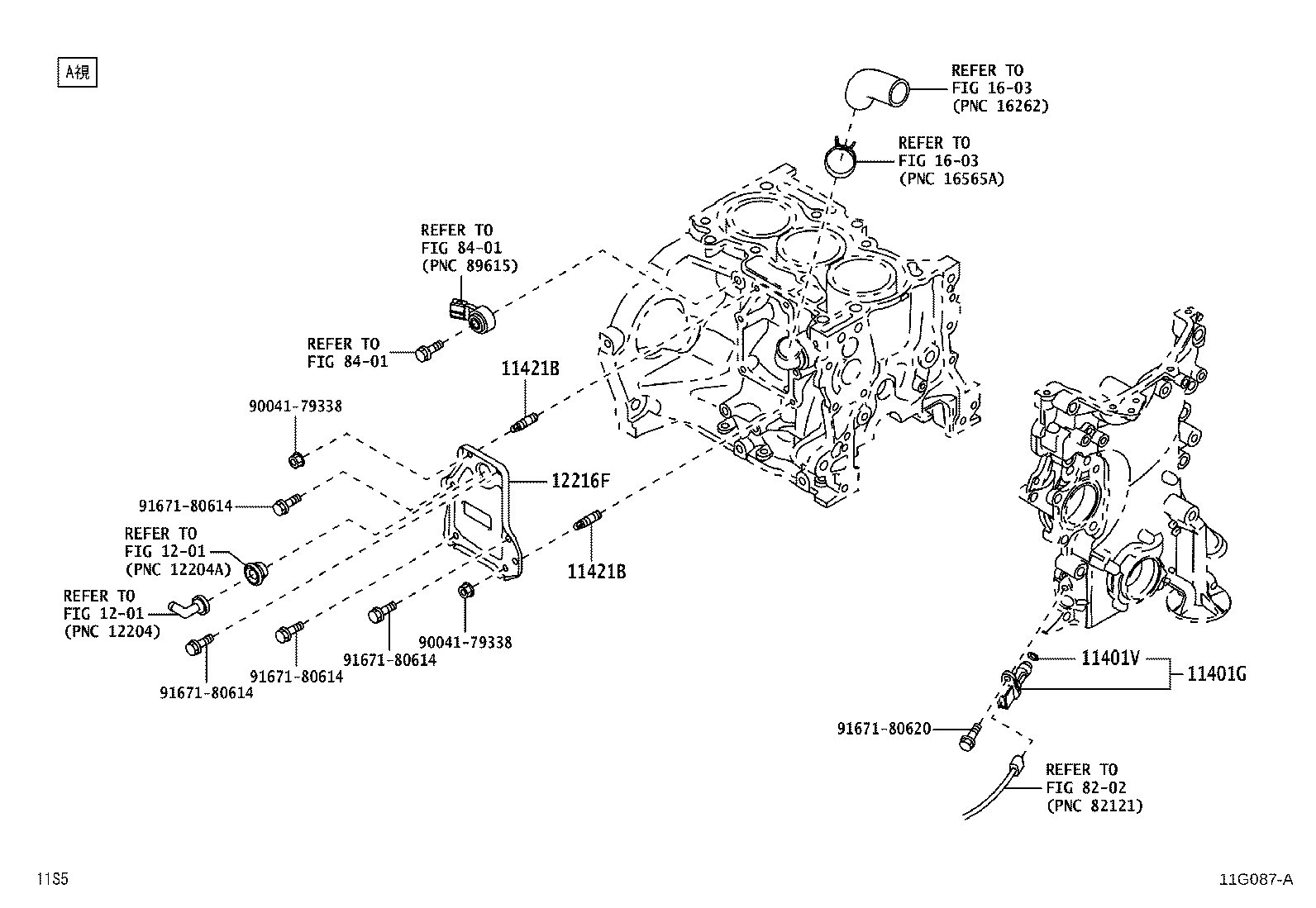

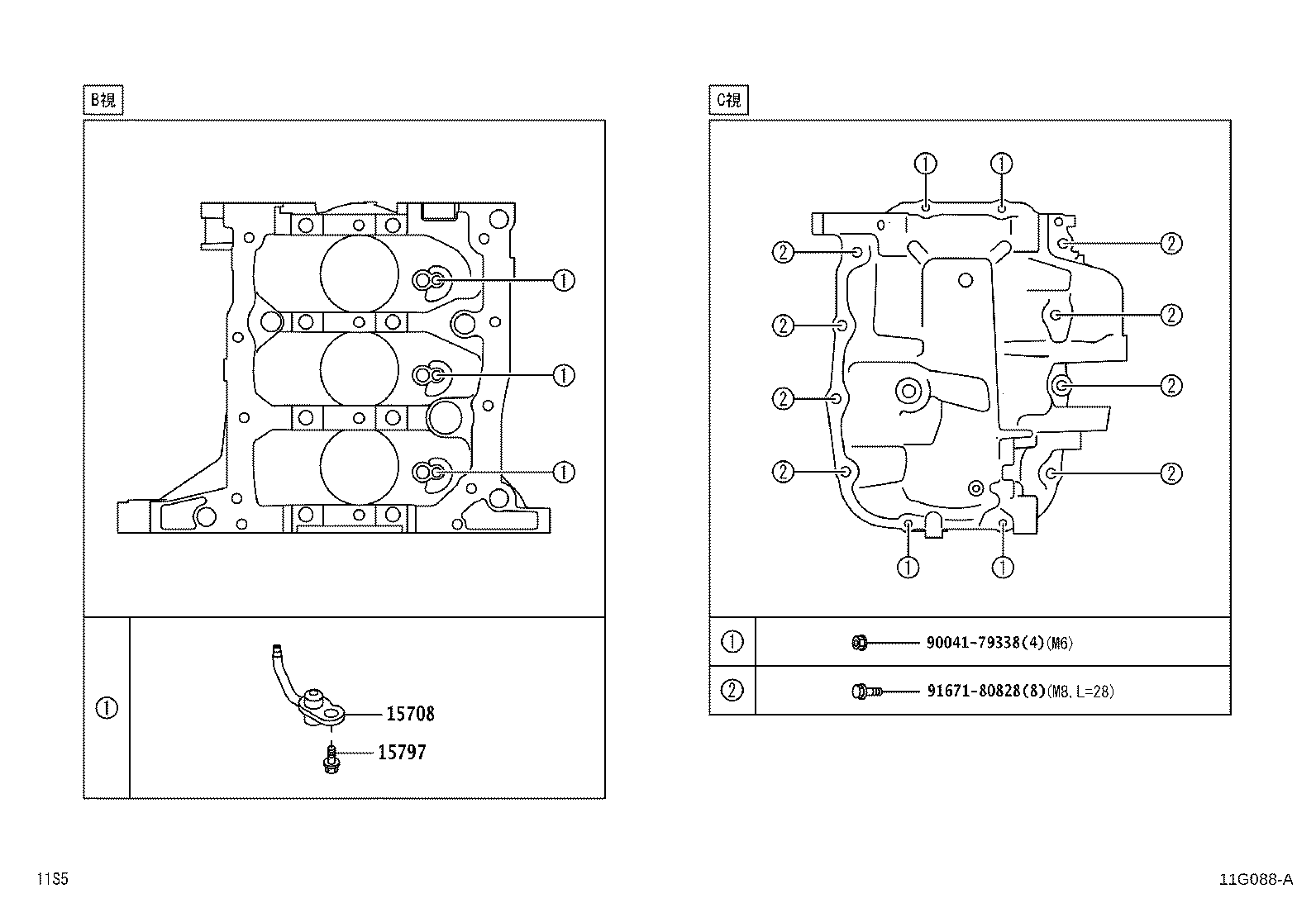

Figure 11G086B 11G086B 2021-12 → — Figure 11G087A 11G087A 2021-12 → — Figure 11G088A 11G088A 2021-12 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401V O-ring, Crank Position Sensor
11411A Pin, Ring(FOR CYLINDER BLOCK NO.1 )
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415J Gasket(FOR DRAIN COCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421B Bolt, Stud(FOR OIL PAN BAFFLE PLATE)
11427 Bolt, Stud(FOR TIMING CHAIN COVER SET)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434V Pin, Straight(FOR TRANSMISSION SET)
11434Y Pin, Straight(FOR OIL PAN)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12216F Plate, Ventilation Baffle
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
