Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

21 part groups · 2 illustrations

Illustrations

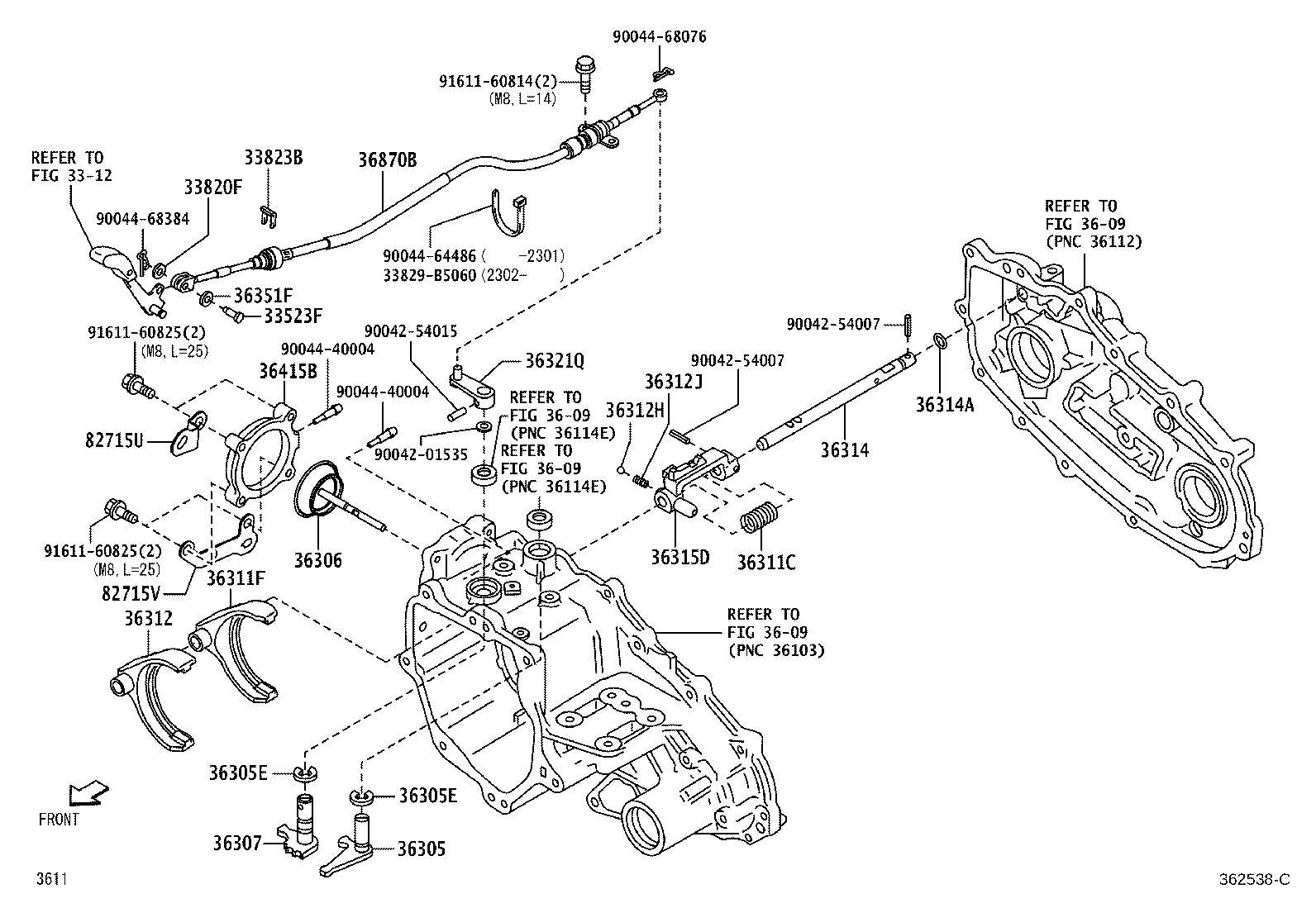

Figure 362537A 362537A 2021-12 → — Figure 362538C 362538C 2021-12 → —

Part groups

PNCDescription
33523F Pin, Shift Lever (FOR TRANSFER)
33820F Washer, Plate (FOR TRANSFER CONTROL CABLE)
33823B Bracket, Transfer Control Cable
36305 Lever Sub-assy, Front Drive Shift Link
36305E Ring, E(FOR FRONT DRIVE SHIFT LINK LEVER)
36306 Shaft Sub-assy, Control
36307 Lever Sub-assy, High & Low Shift Inner
36311C Spring, Compresion (FOR SHIFT FORK)
36311F Fork, Transfer Gear Shift, NO.1
36312 Fork, Transfer Gear Shift, NO.2
36312H Ball (FOR TRANSFER GEAR SHIFT FORK NO.2)
36312J Spring, Compression (FOR TRANSFER GEAR SHIFT FORK NO.2)
36314 Shaft, Transfer High And Low Shift Fork
36314A Ring, O (FOR TRANSFER SHIFT FORK SHAFT)
36315D Head, Transfer Gear Shift, NO.1
36321Q Lever, Transfer Shift
36351F Washer, Wave (FOR TRANSFER SHIFT ROD)
36415B Cover, Diaphragm Cylinder
36870B Cable Assy, Transfer Control
82715U Bracket, Wiring Harness Clamp
82715V Bracket, Wiring Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
