Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

7 part groups · 2 illustrations

Illustrations

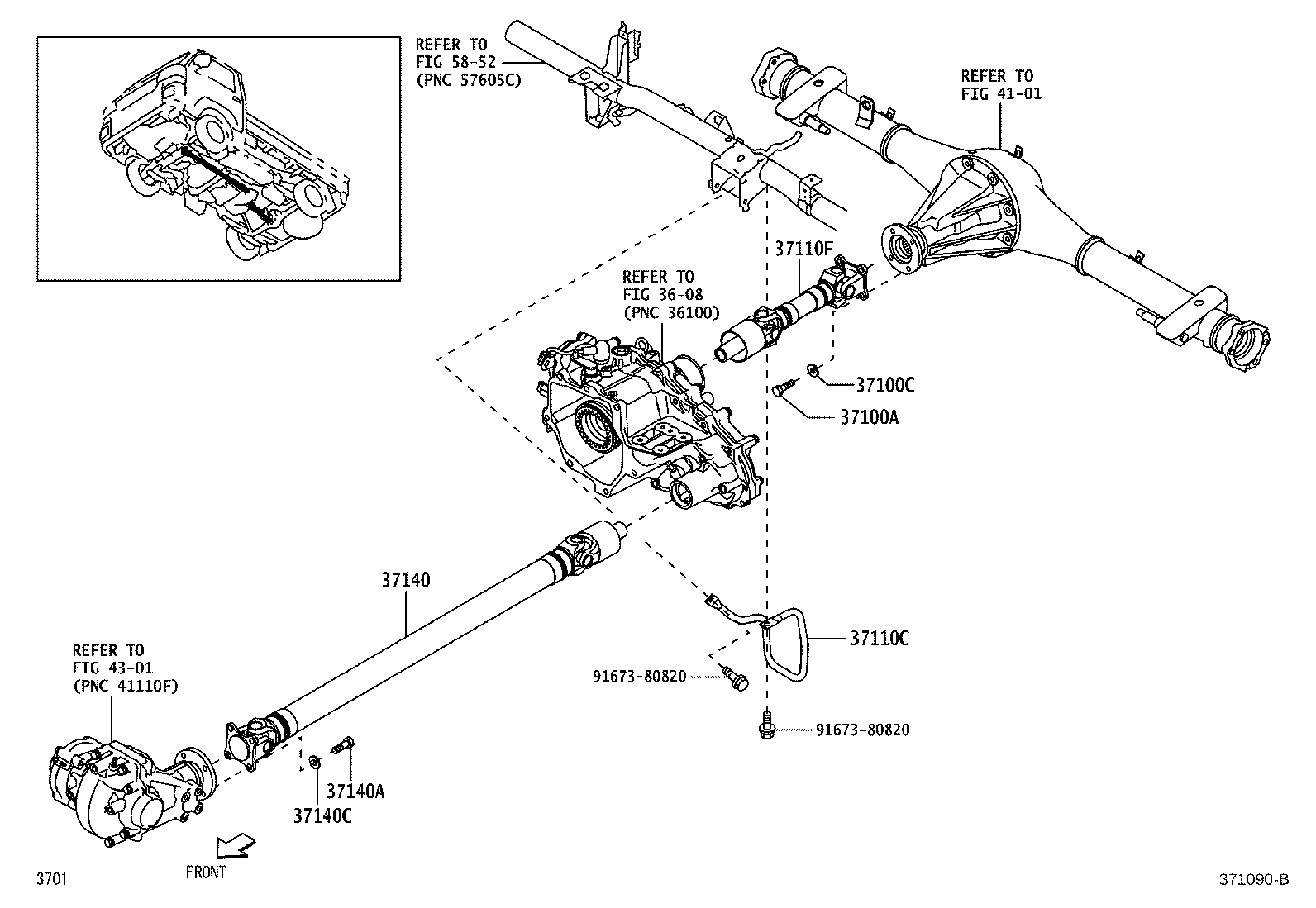

Figure 371089B 371089B 2021-12 → — Figure 371090B 371090B 2021-12 → —

Part groups

PNCDescription
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110C Bracket, Propeller Shaft Guard
37110F Shaft Assy, Propeller, Rear
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
