Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12

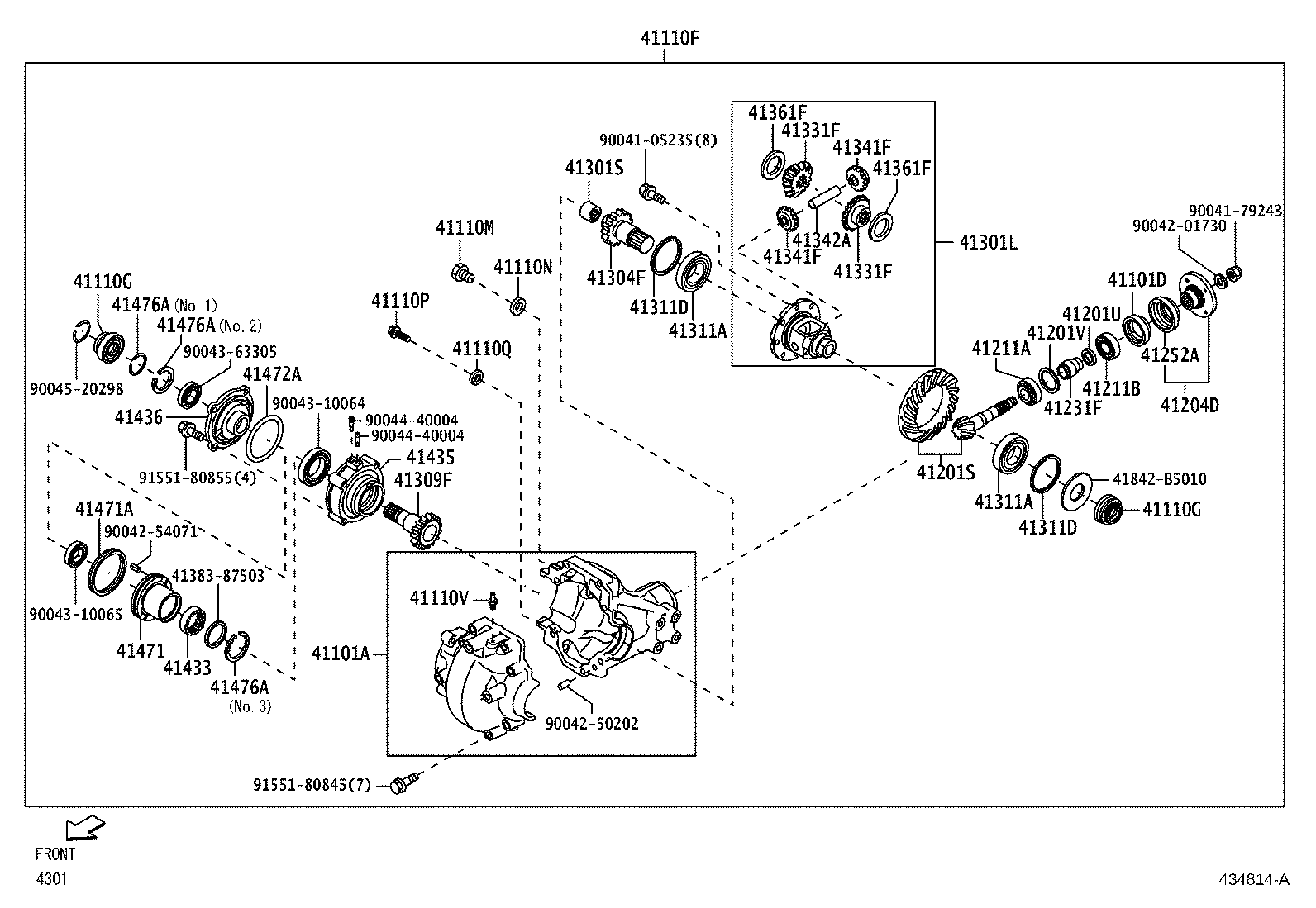

Front Axle Housing & Differential
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |
| 41110V | Union (FOR FRONT DIFFERENTIAL) |
| 41201S | Final Gear Kit, Differential, Front |
| 41201U | Shim (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41201V | Shim (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41301S | Bearing, Needle Roller |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41309F | Shaft Sub-assy, Differential Side Gear, LH |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41433 | Sleeve, Differential Clutch |
| 41435 | Case, Differential Clutch |
| 41436 | Cover, Front Differential Clutch Case |
| 41471 | Piston, Differential Lock Clutch, NO.1 |
| 41471A | Ring, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1) |
| 41472A | Ring, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) |
| 41476A | Ring, Hole Snap (FOR DIFFERENTIAL LOCK CLUTCH FLANGE) |
| 52392A | Support, Front Differential, NO.1 |
| 52393A | Support, Front Differential, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
