Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

11 part groups · 2 illustrations

Illustrations

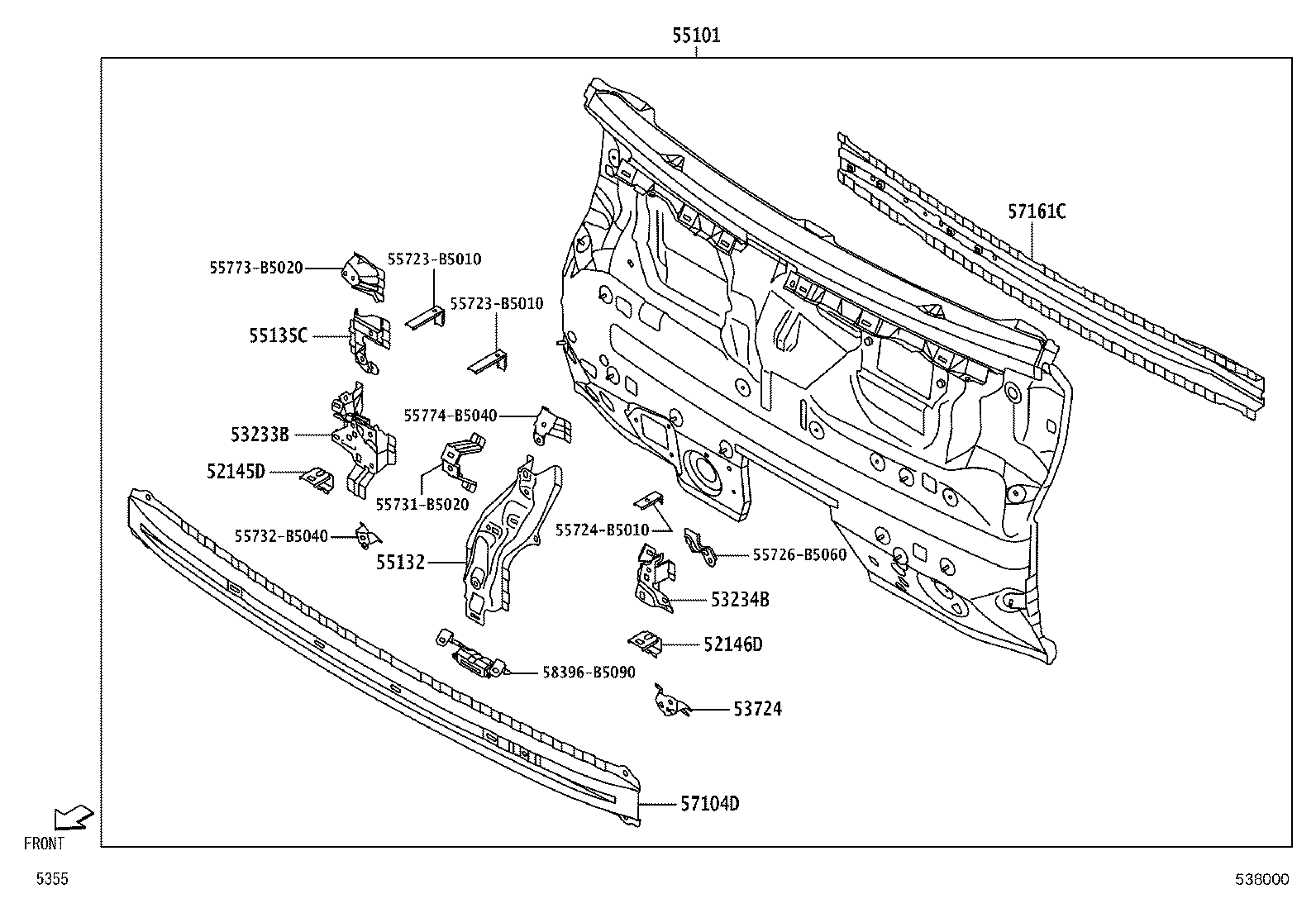

Figure 538001A 538001A 2021-12 → — Figure 538000 538000 2021-12 → —

Part groups

PNCDescription
52145D Bracket, Front Bumper Side Mounting, RH
52146D Bracket, Front Bumper Side Mounting, LH
53233B Bracket, Headlamp, Inner RH
53234B Bracket, Headlamp, Inner LH
53301G Cushion, Hood Bumper
53724 Bracket, Clamp
55101 Panel Sub-assy, Dash
55132 Reinforcement, Dash Panel, NO.2
55135C Bracket, Brake Pedal, NO.2
57104D Member Sub-assy, Front Cross
57161C Member, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
