Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12

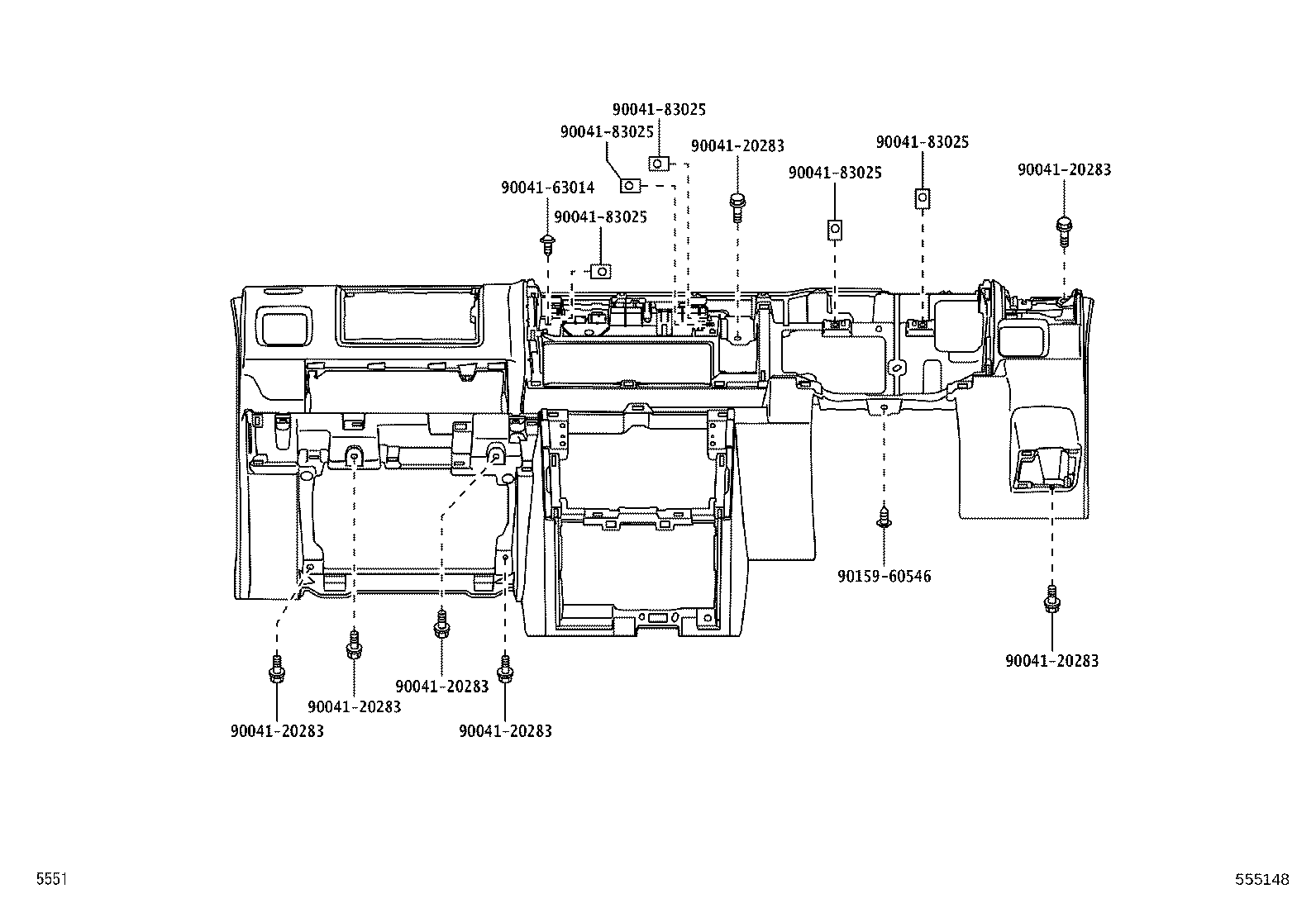

Instrument Panel & Glove Compartment
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51960B | Hook Assy, Front |

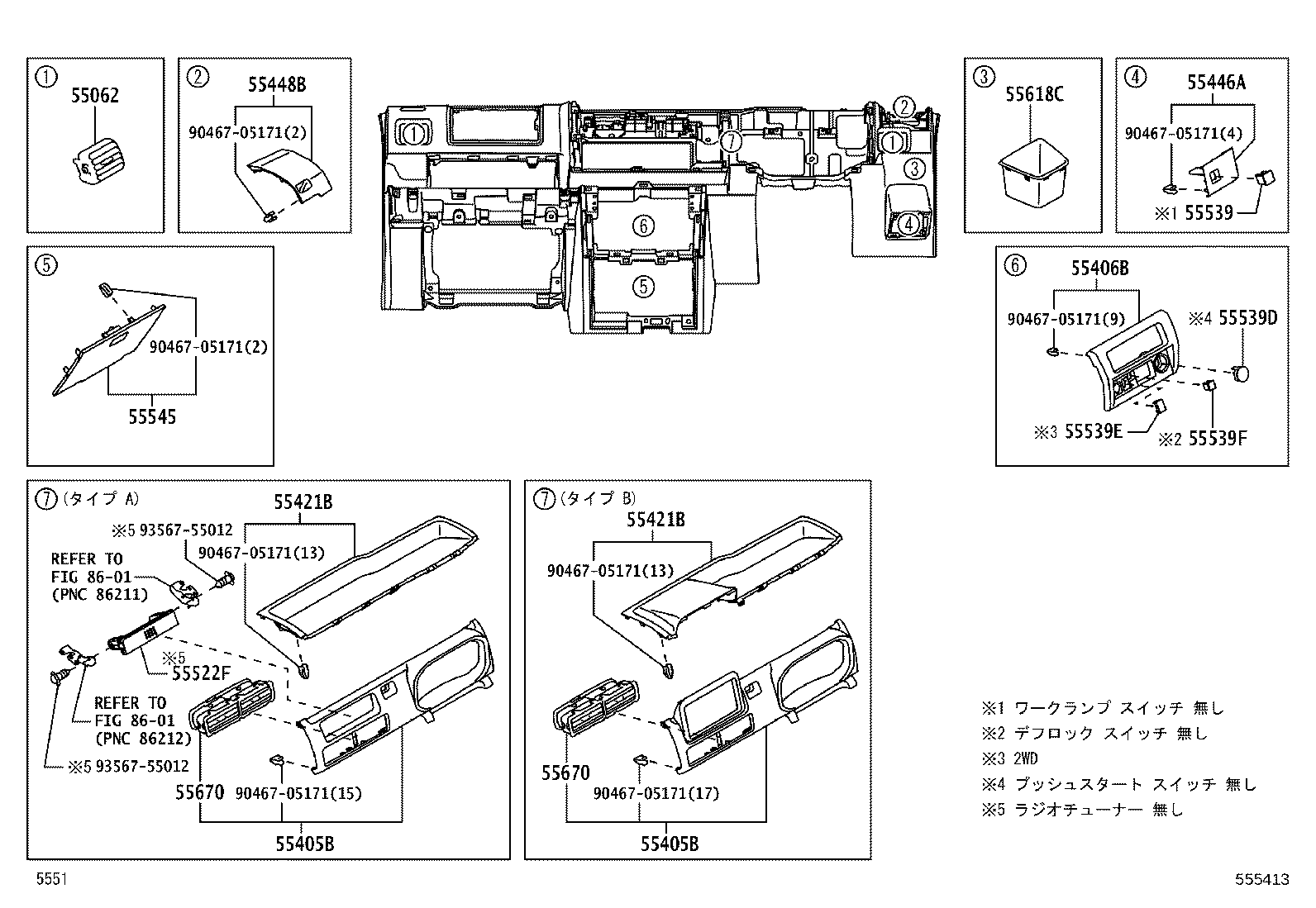

| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55305C | Reinforcement Sub-assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55446A | Base, Switch Hole, NO.1 |
| 55448B | Cover, Oil Reservoir Tank, RH |
| 55522F | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |

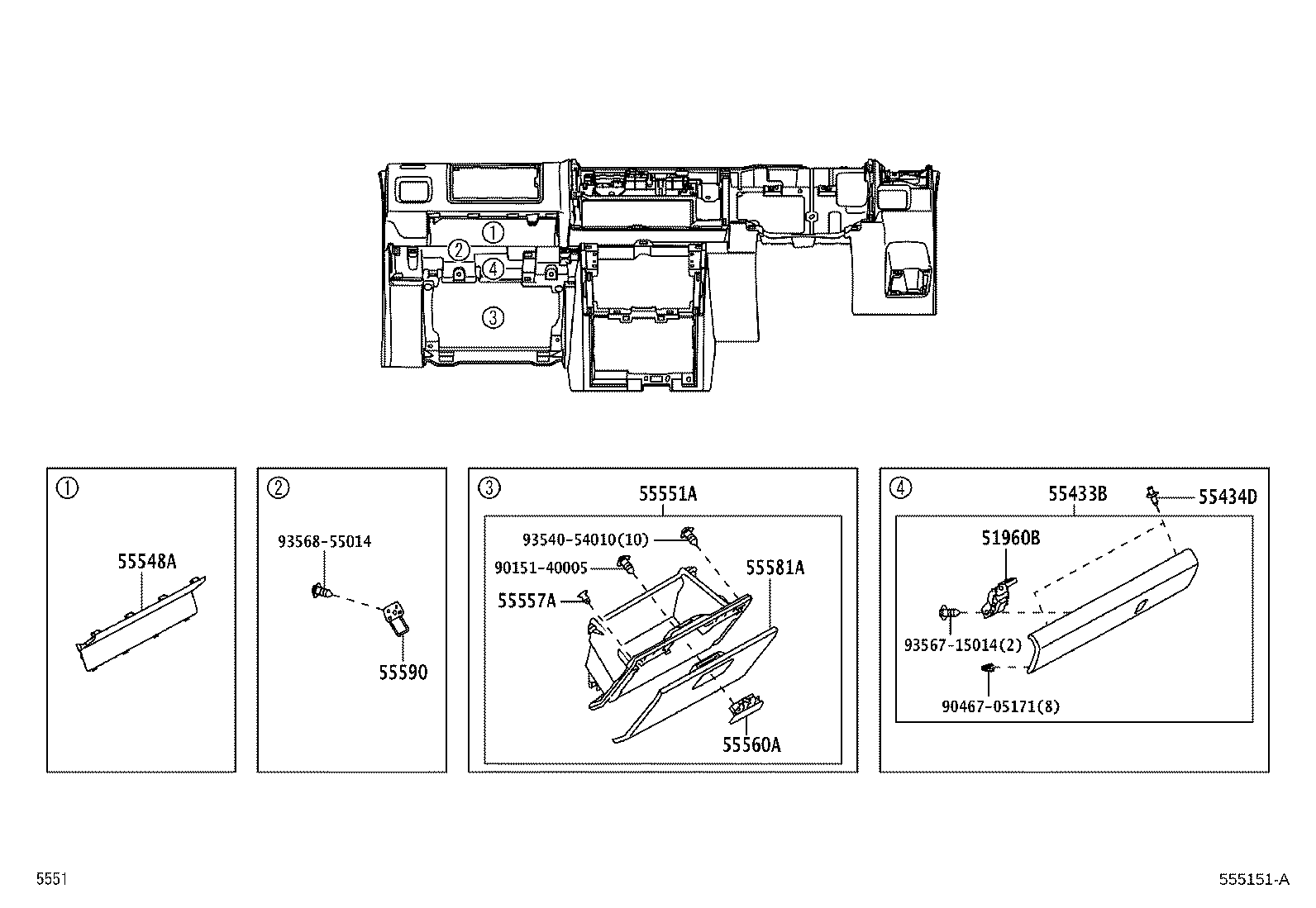

| 55551A | Door, Glove Compartment, Outer |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55581A | Compartment, Glove |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55618C | Holder, Instrument Panel Cup |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
