Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

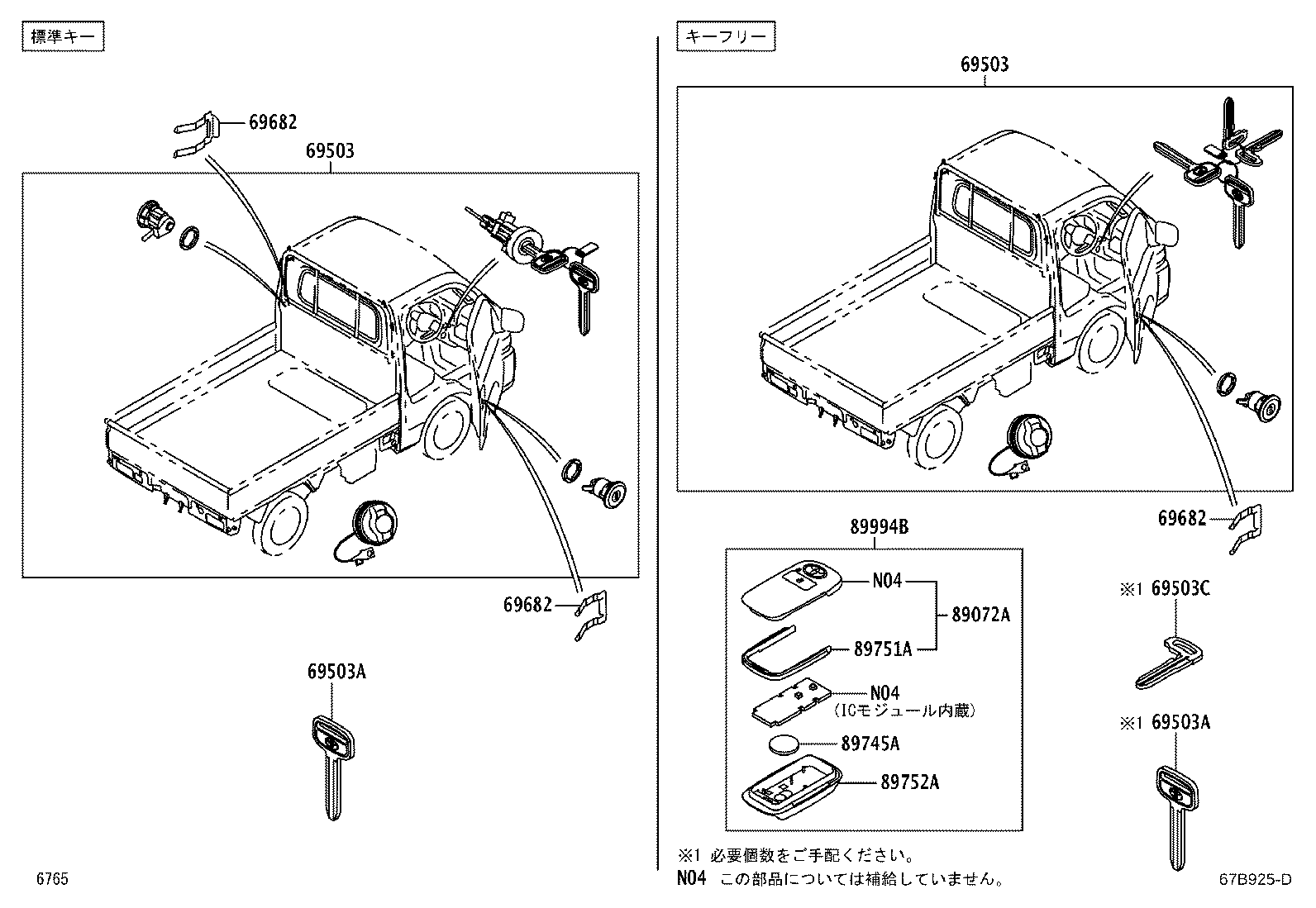

Figure 67B924 67B924 2021-12 → — Figure 67B925D 67B925D 2021-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69058D Cylinder & Key Set, Fuel Tank Filler
69503 Cylinder Set, Lock
69503A Key, Blank
69503C Key, Sub
69513A Pad, Door Cylinder
69682 Retainer, Lock Cylinder
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
