Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12
Seat & Seat Track

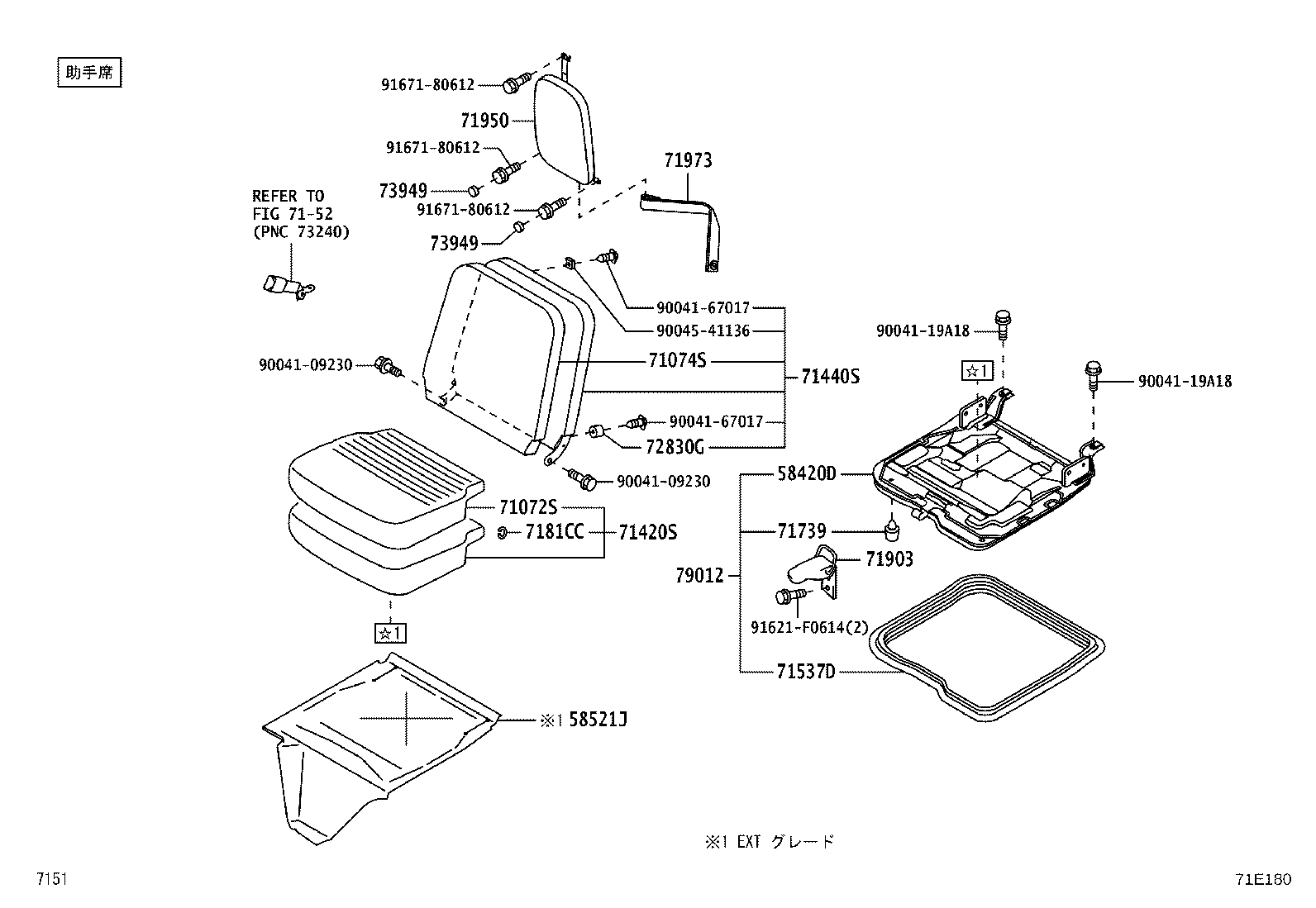

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410T | Cover Assy, Engine Service Hole, RH |
| 58420D | Cover Assy, Engine Service Hole, LH |
| 58521H | Carpet, Engine Service Hole Cover |
| 58521J | Carpet, Engine Service Hole Cover LH |
| 70012B | Band, Engine Service Hole Cover Support |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71327 | Catch, Seat Stop |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71739 | Cushion, Seat Support |
| 7181CB | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 7181CC | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 71903 | Catch Sub-assy, Seat Cushion, Front |
| 71910A | Headrest Assy, Front Seat |
| 71950 | Headrest Assy, Front Seat |
| 71973 | Band, Engine Service Hole Cover Support |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72830G | Cushion |
| 73949 | Cap |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
