Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 2 illustrations

Illustrations

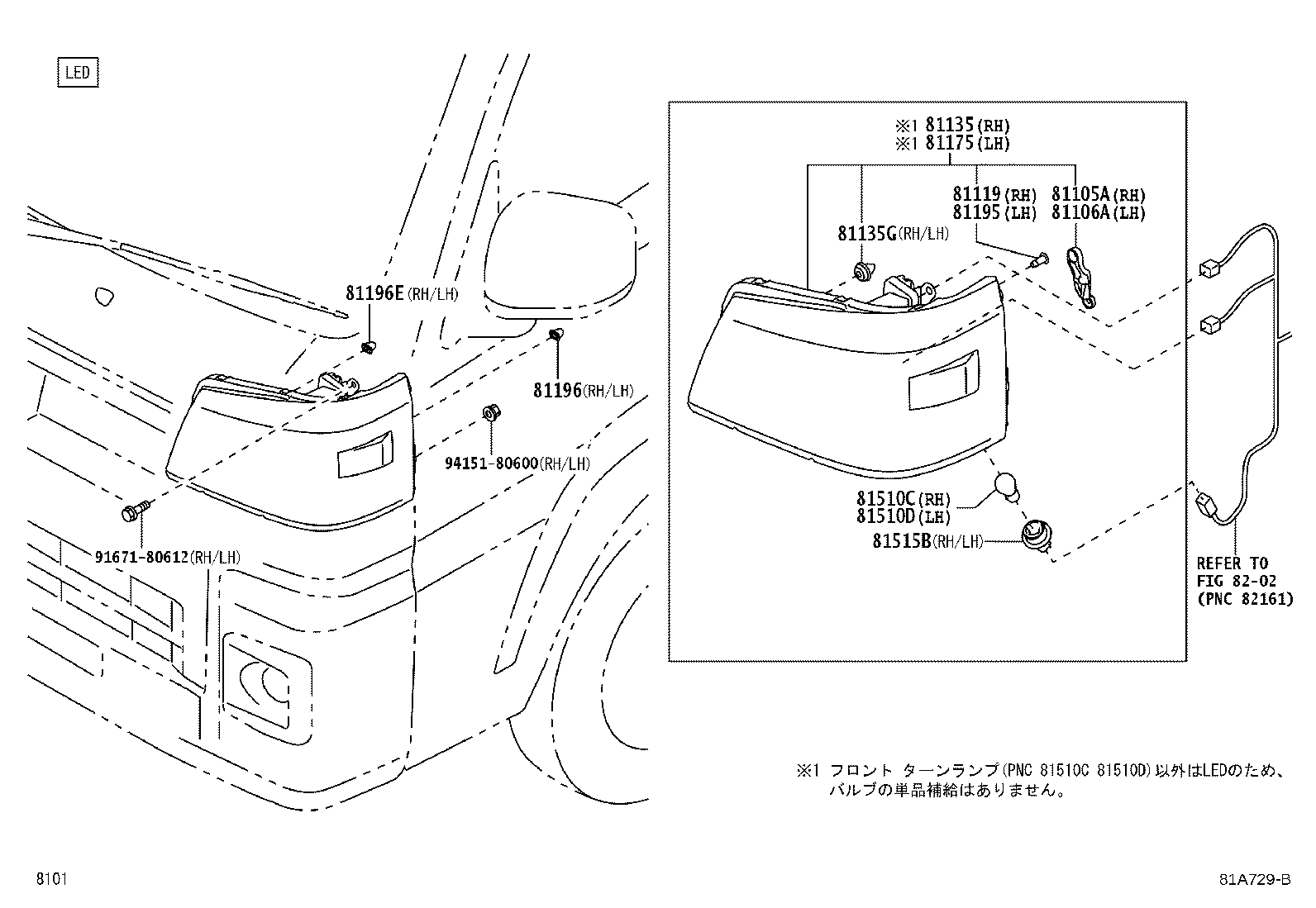

Figure 81A728B 81A728B 2021-12 → — Figure 81A729B 81A729B 2021-12 → —

Part groups

PNCDescription
81105A Bracket Sub-assy, Headlamp, RH
81106A Bracket Sub-assy, Headlamp, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81119 Screw, Headlamp
81135 Unit Assy, Headlamp, RH
81135G Clip
81139 Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81196 Retainer, Headlamp
81196E Retainer, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615H Socket, Clearance Lamp, RH
81615J Socket, Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
