Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

13 part groups · 9 illustrations

Illustrations

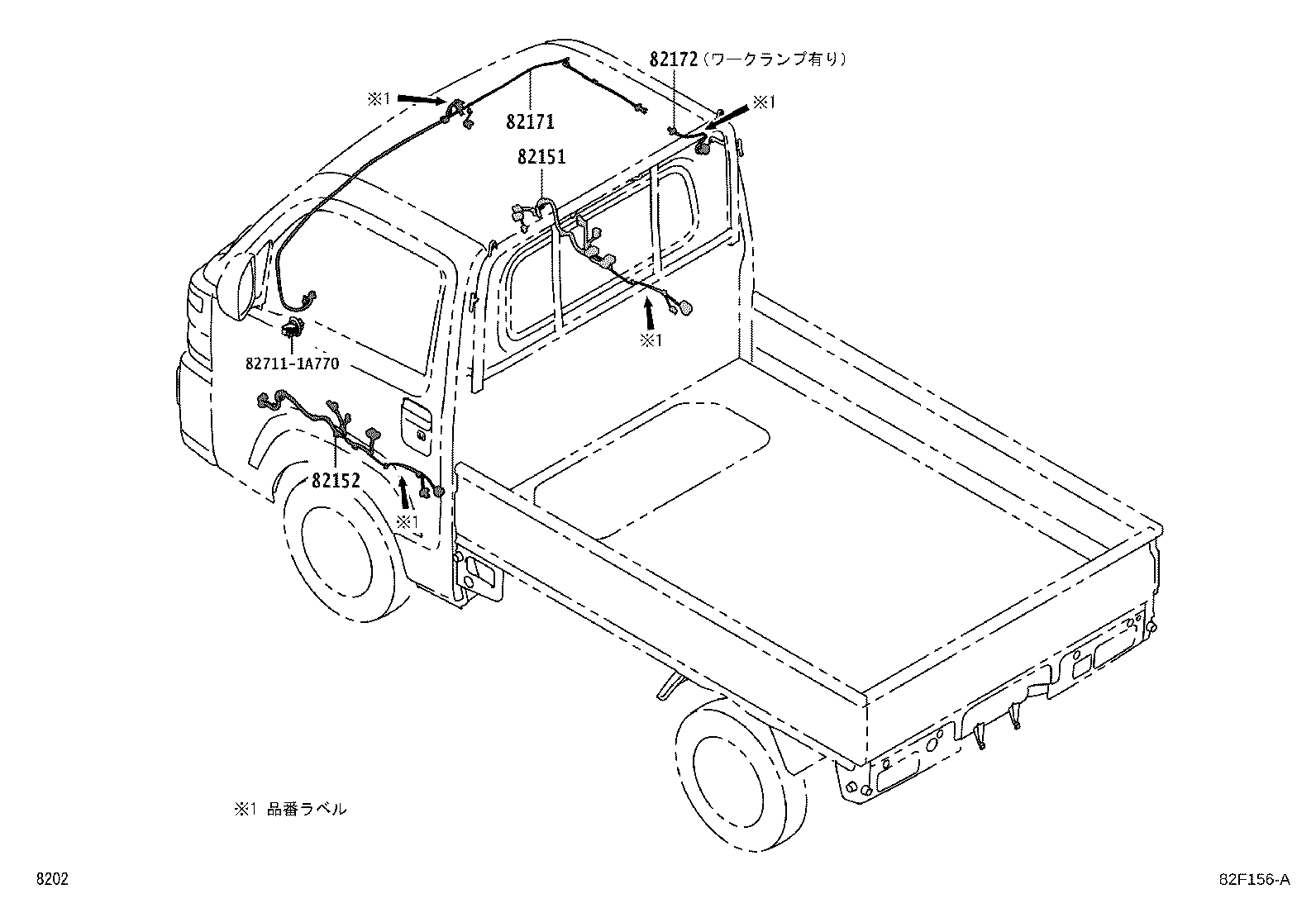

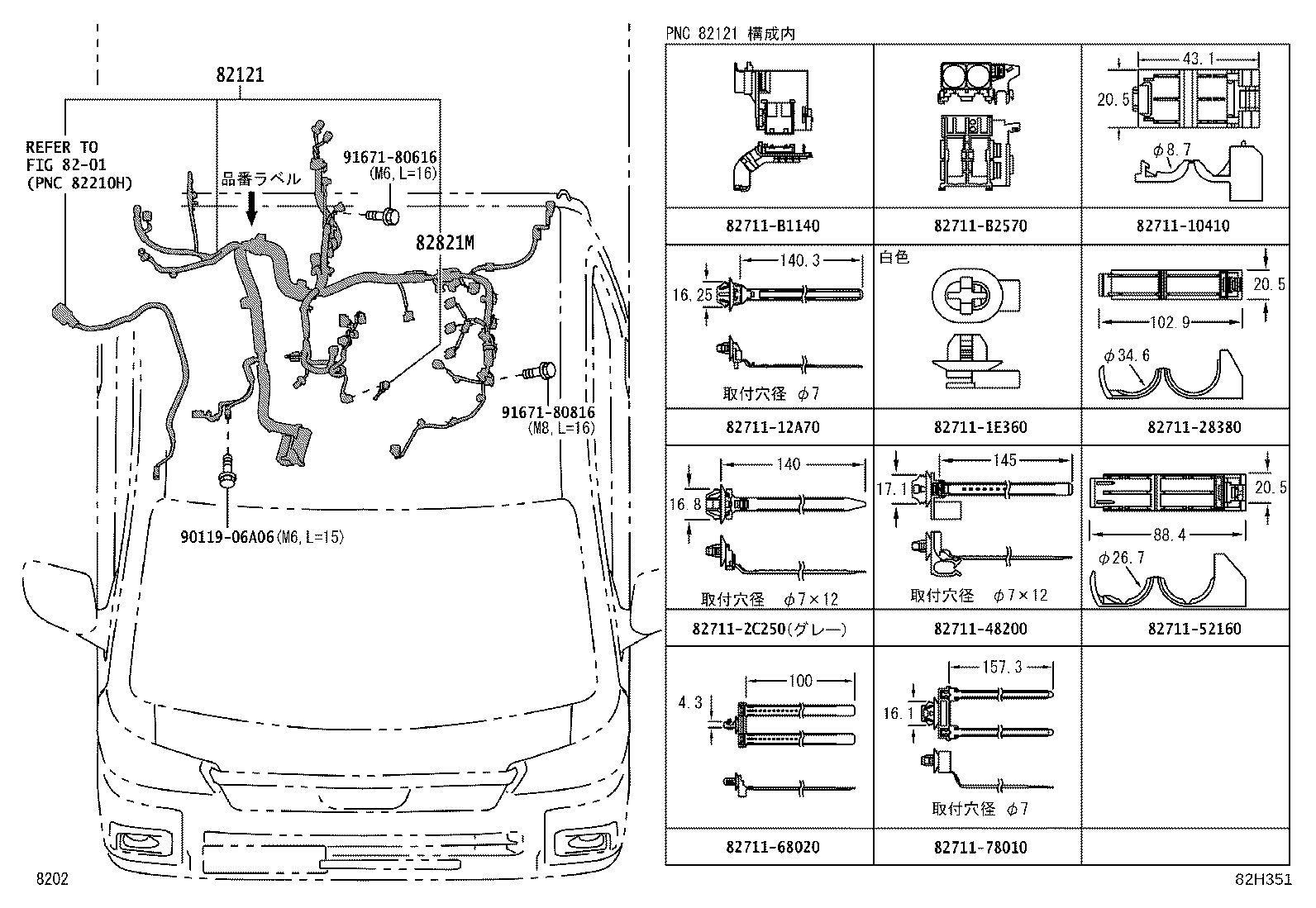

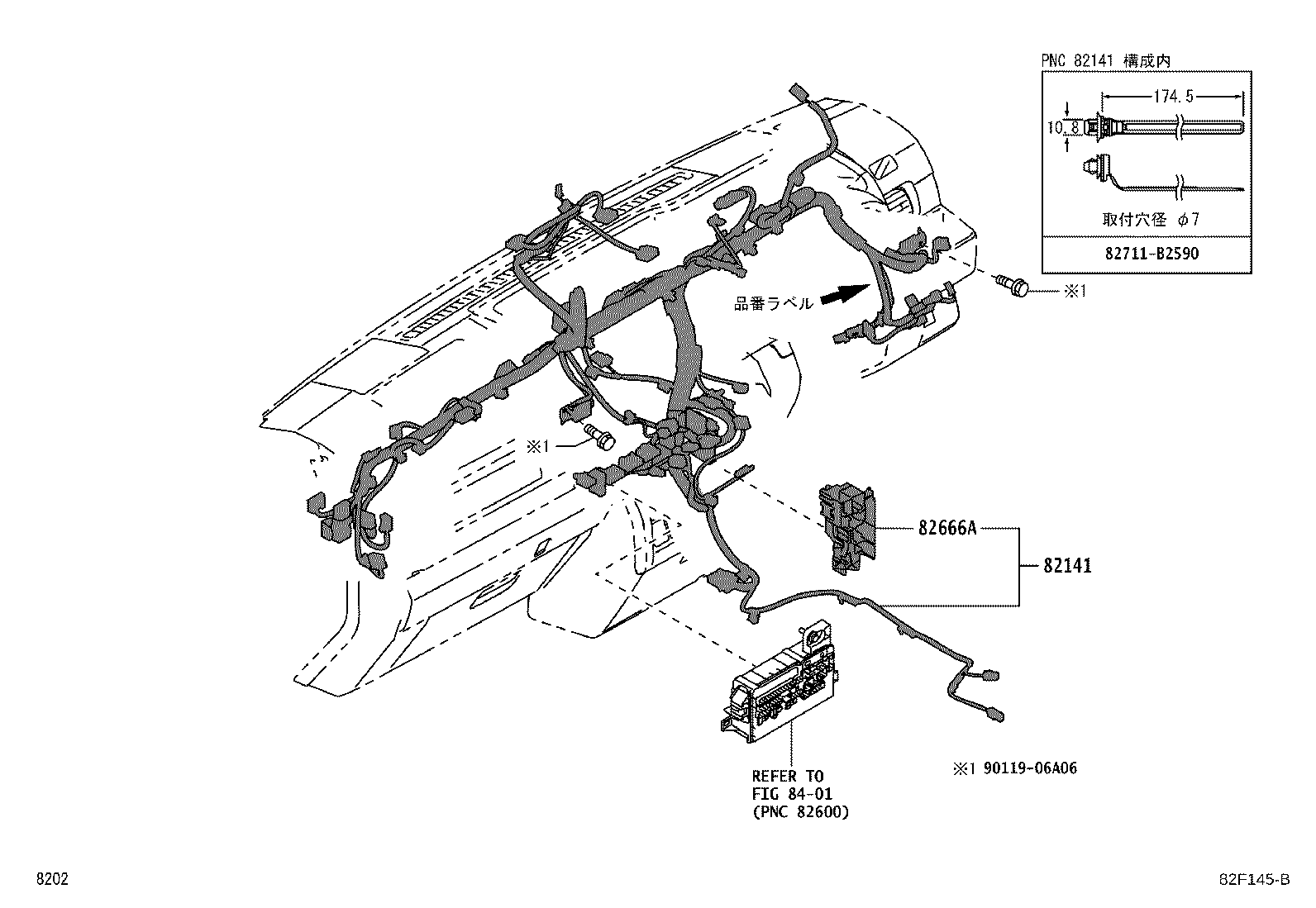

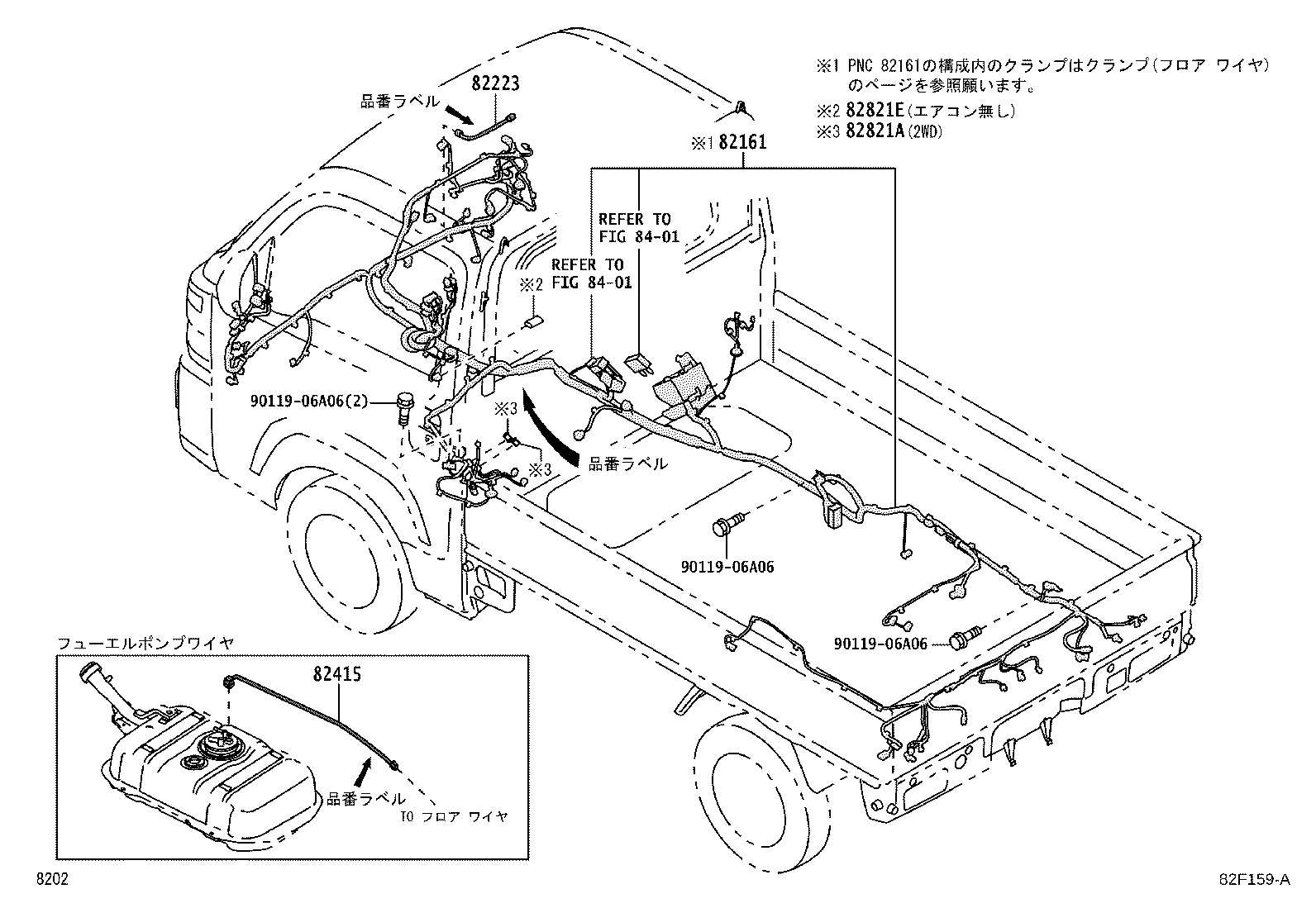

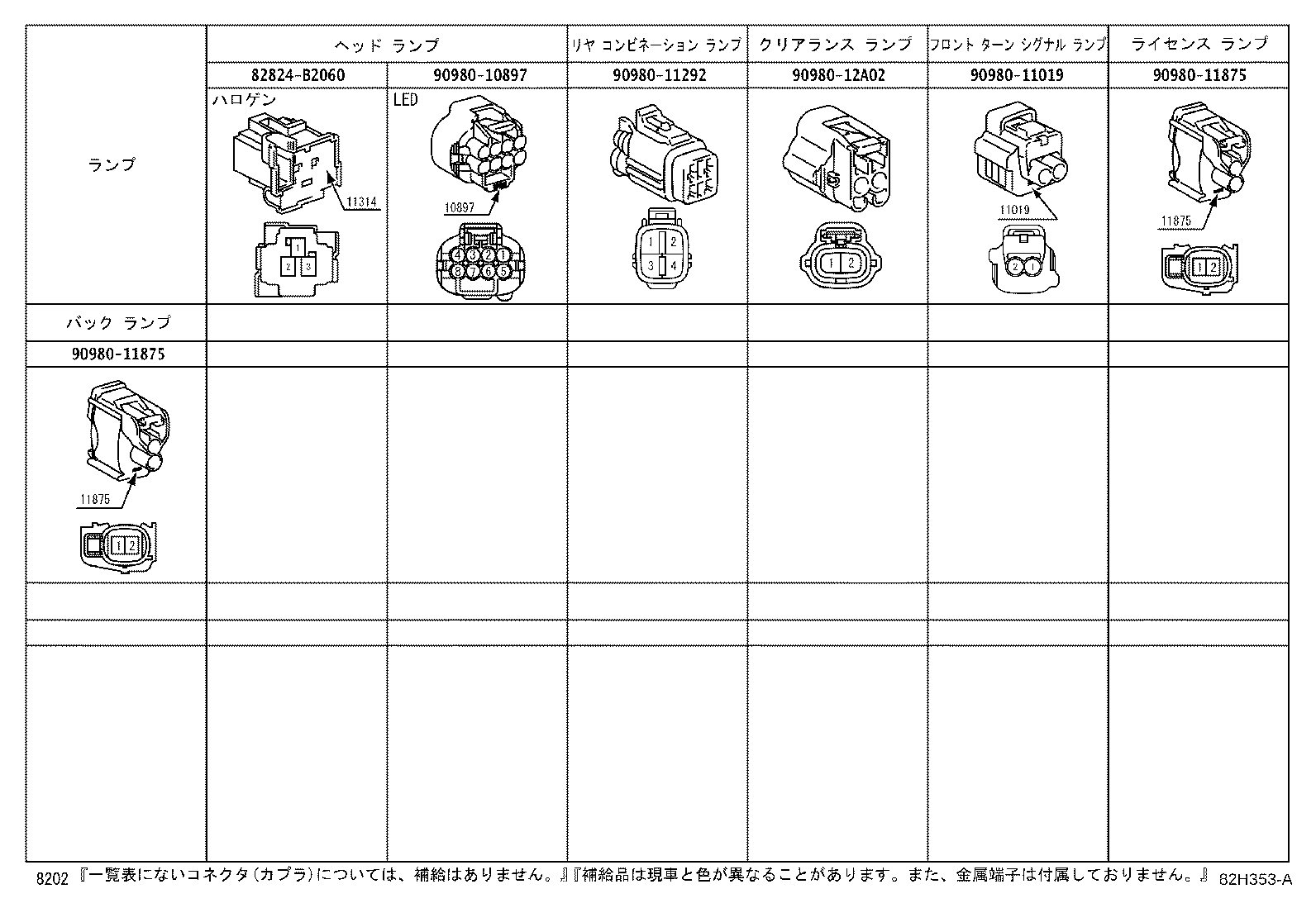

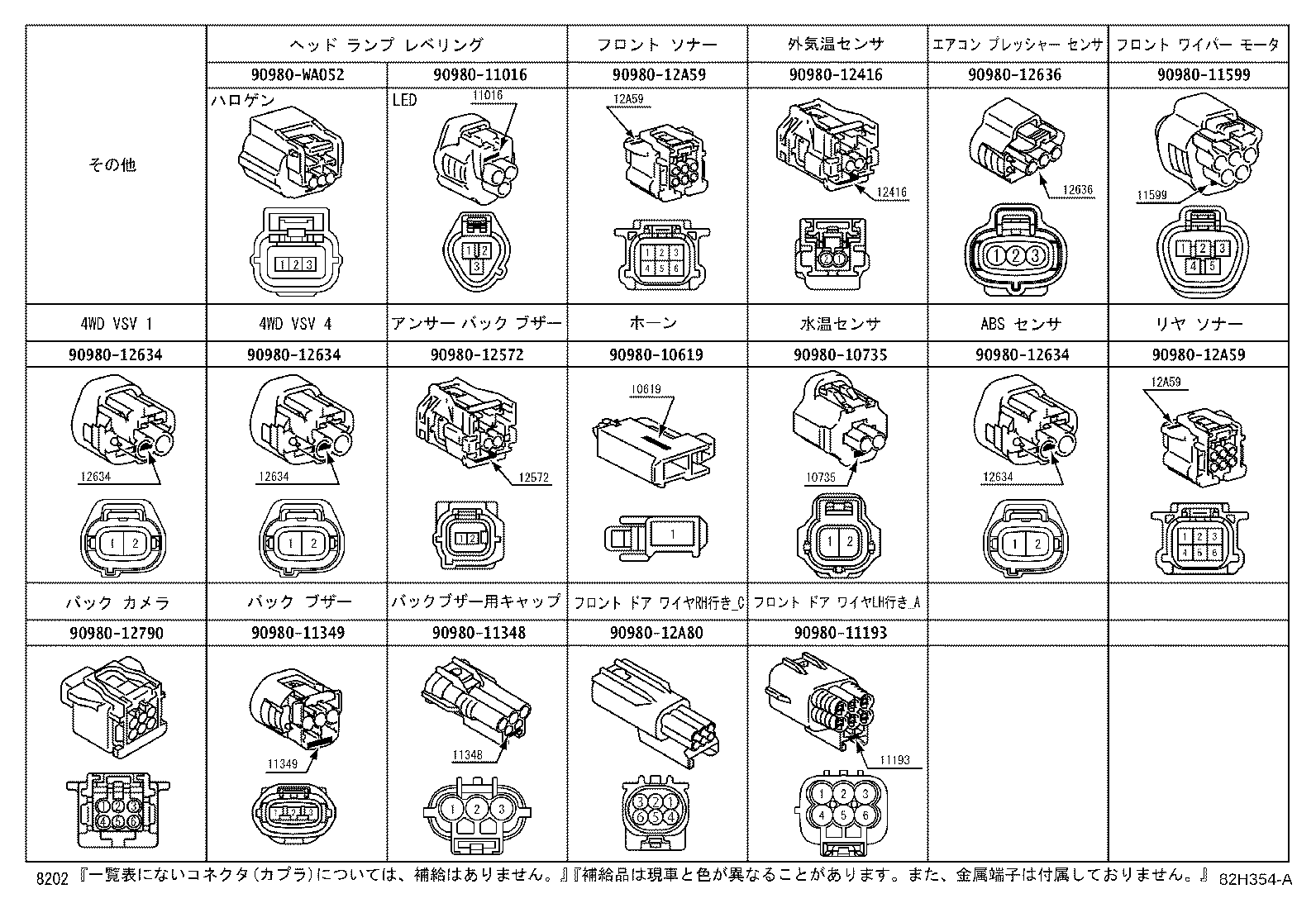

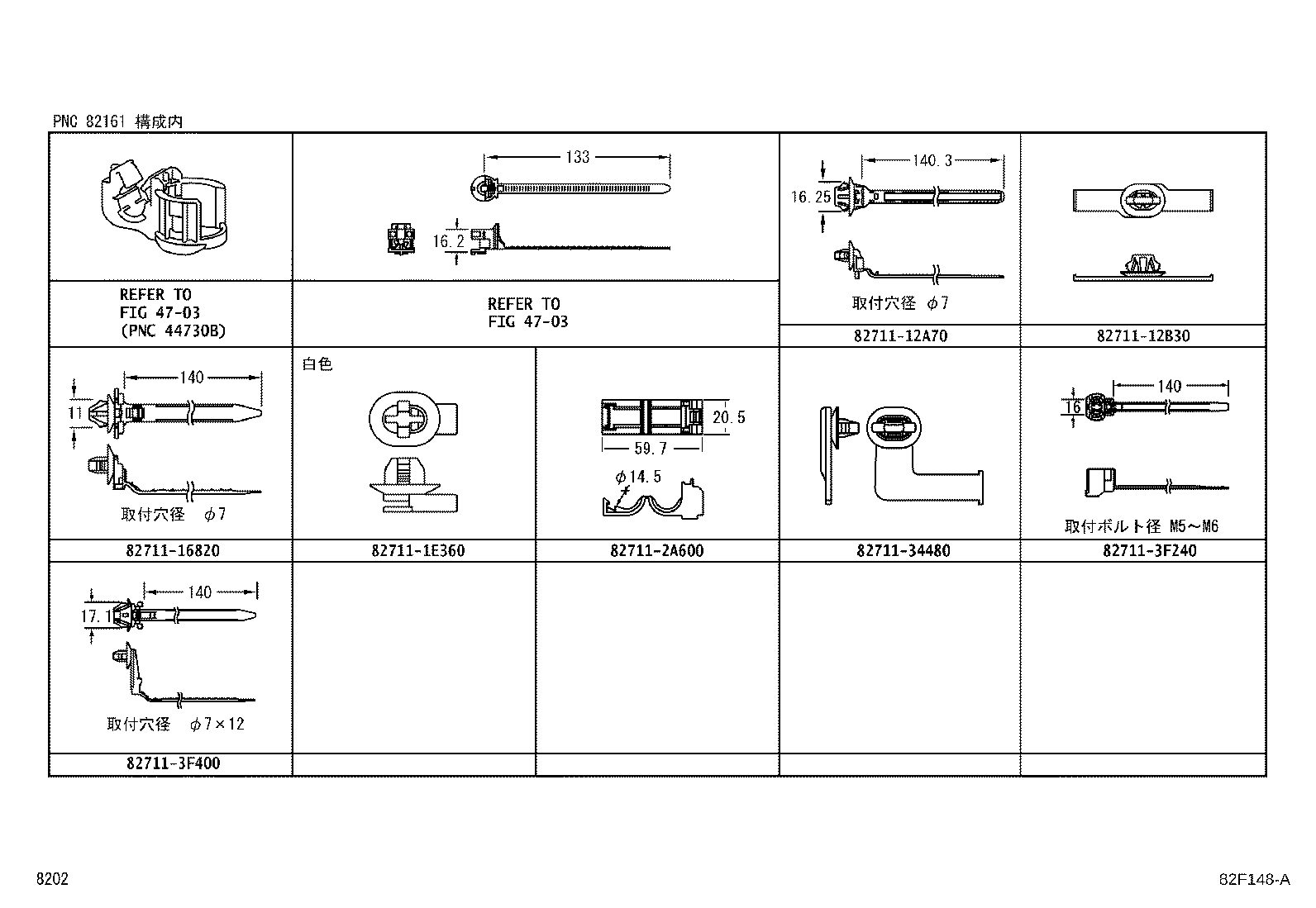

Figure 82F158 82F158 2021-12 → — Figure 82H351 82H351 2021-12 → — Figure 82F145B 82F145B 2021-12 → — Figure 82F156A 82F156A 2021-12 → — Figure 82F159A 82F159A 2021-12 → — Figure 82F148A 82F148A 2021-12 → — Figure 82F154 82F154 2021-12 → — Figure 82H353A 82H353A 2021-12 → — Figure 82H354A 82H354A 2021-12 → —

Part groups

PNCDescription
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82223 Wire, Switch
82415 Wire, Fuel Pump
82666A Holder, Connector NO.2
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
