Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

52 part groups · 8 illustrations

Illustrations

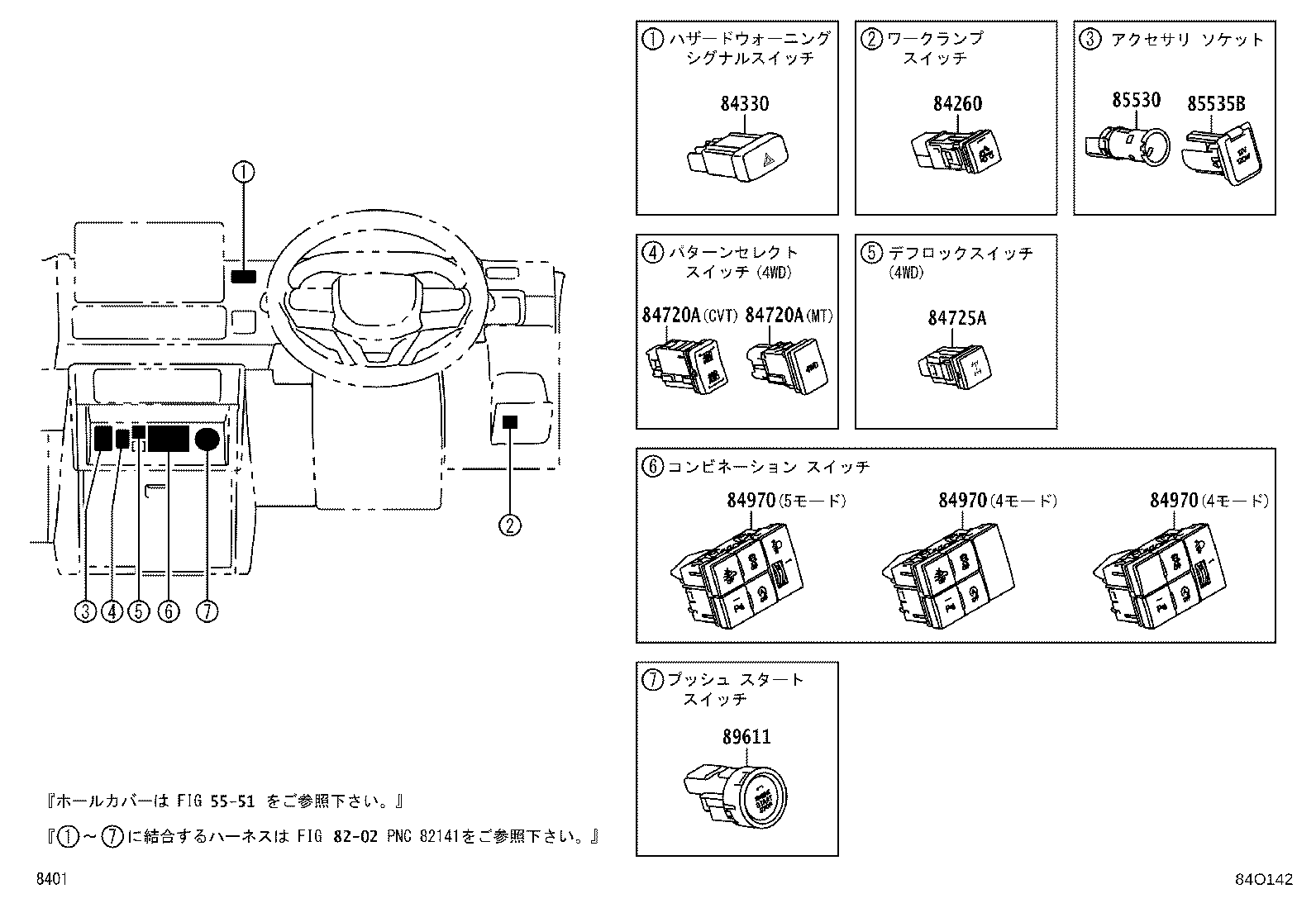

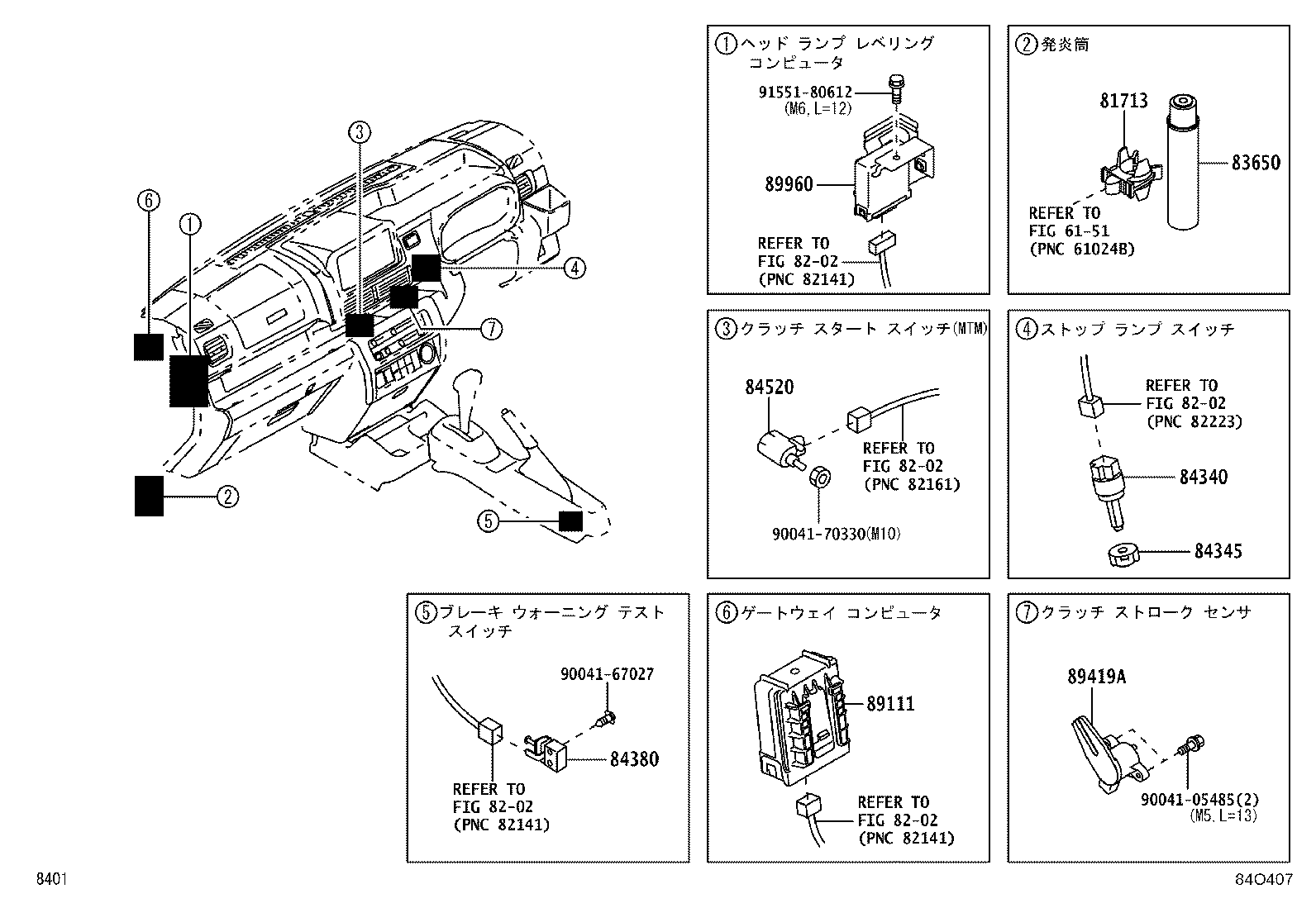

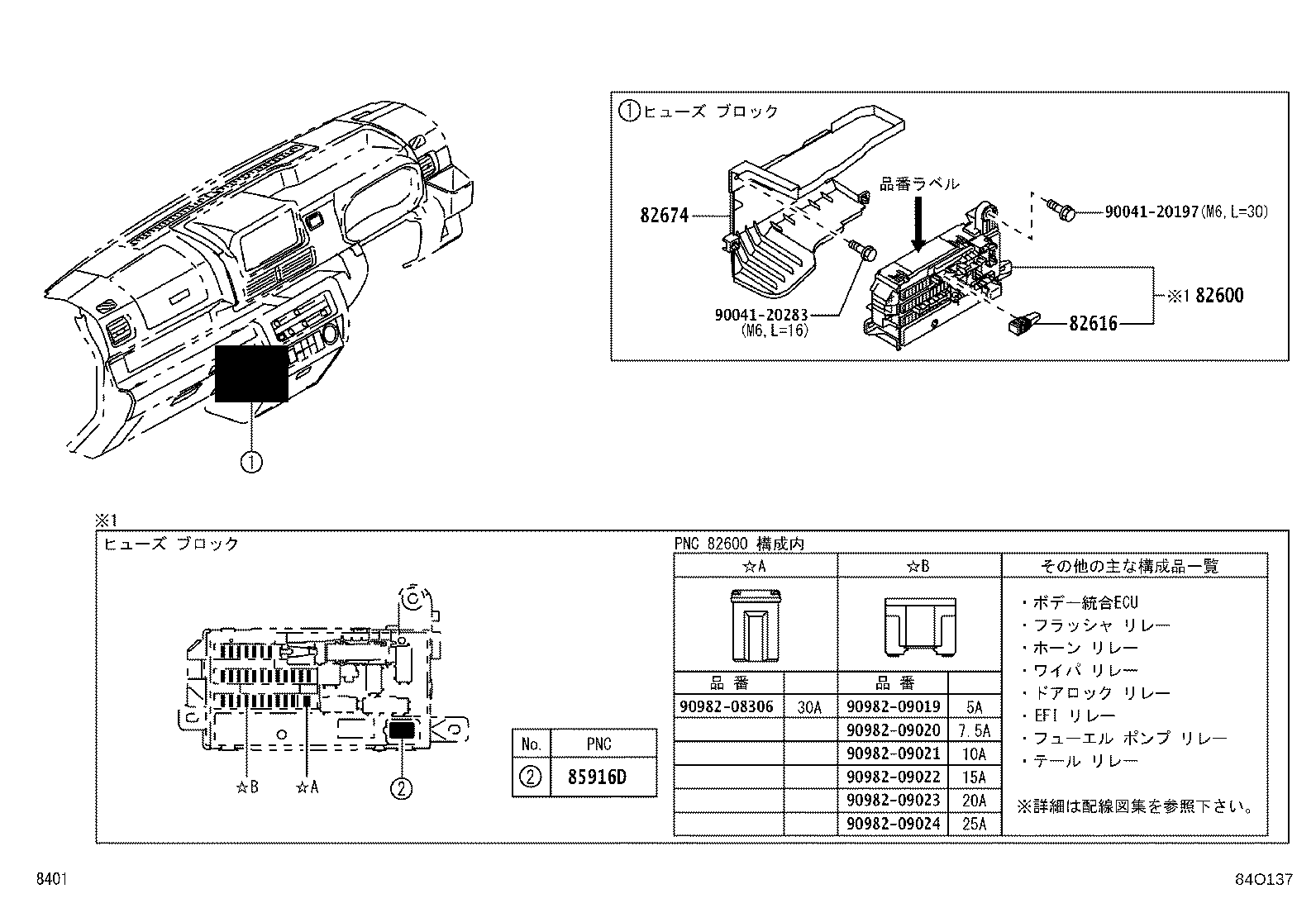

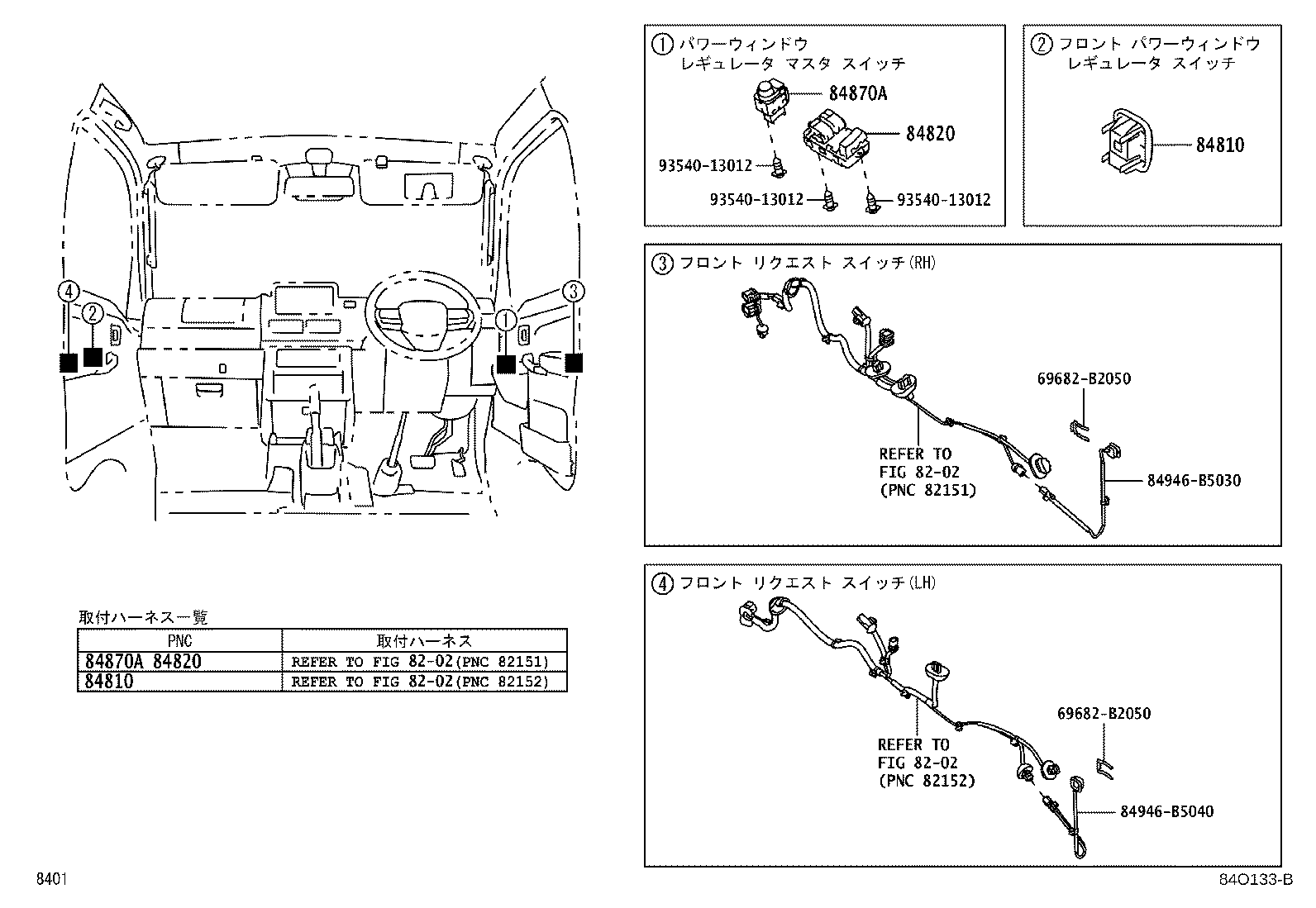

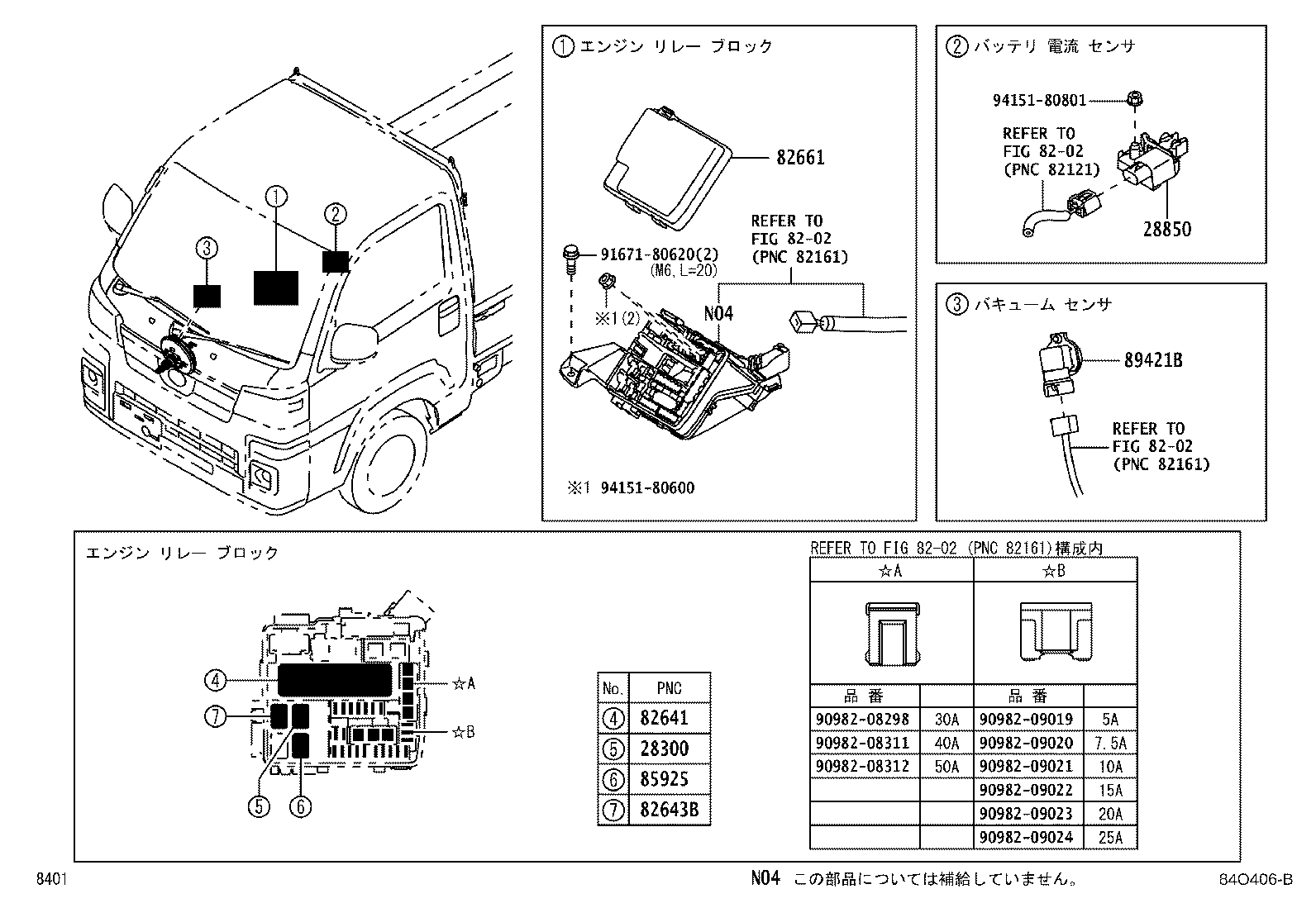

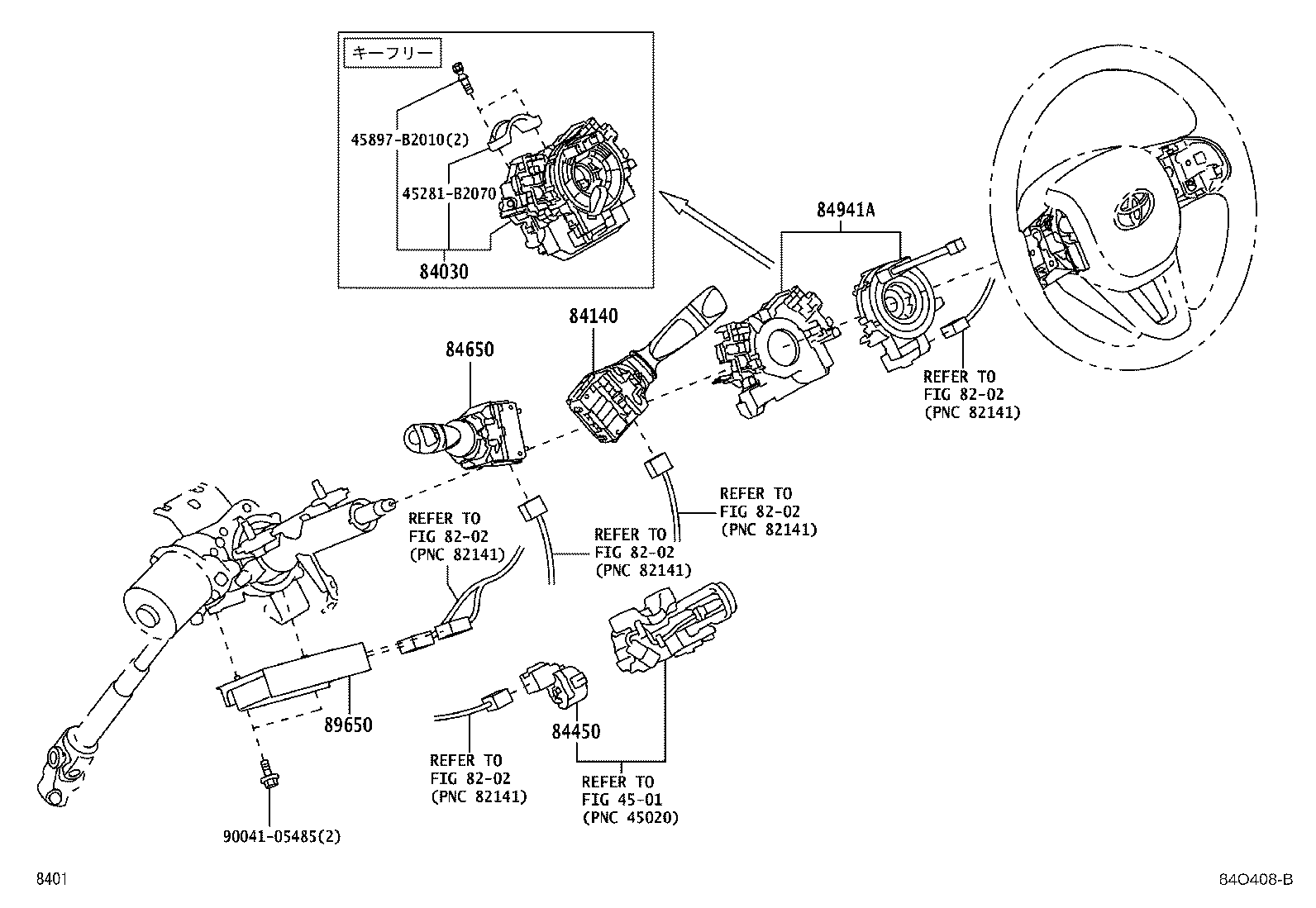

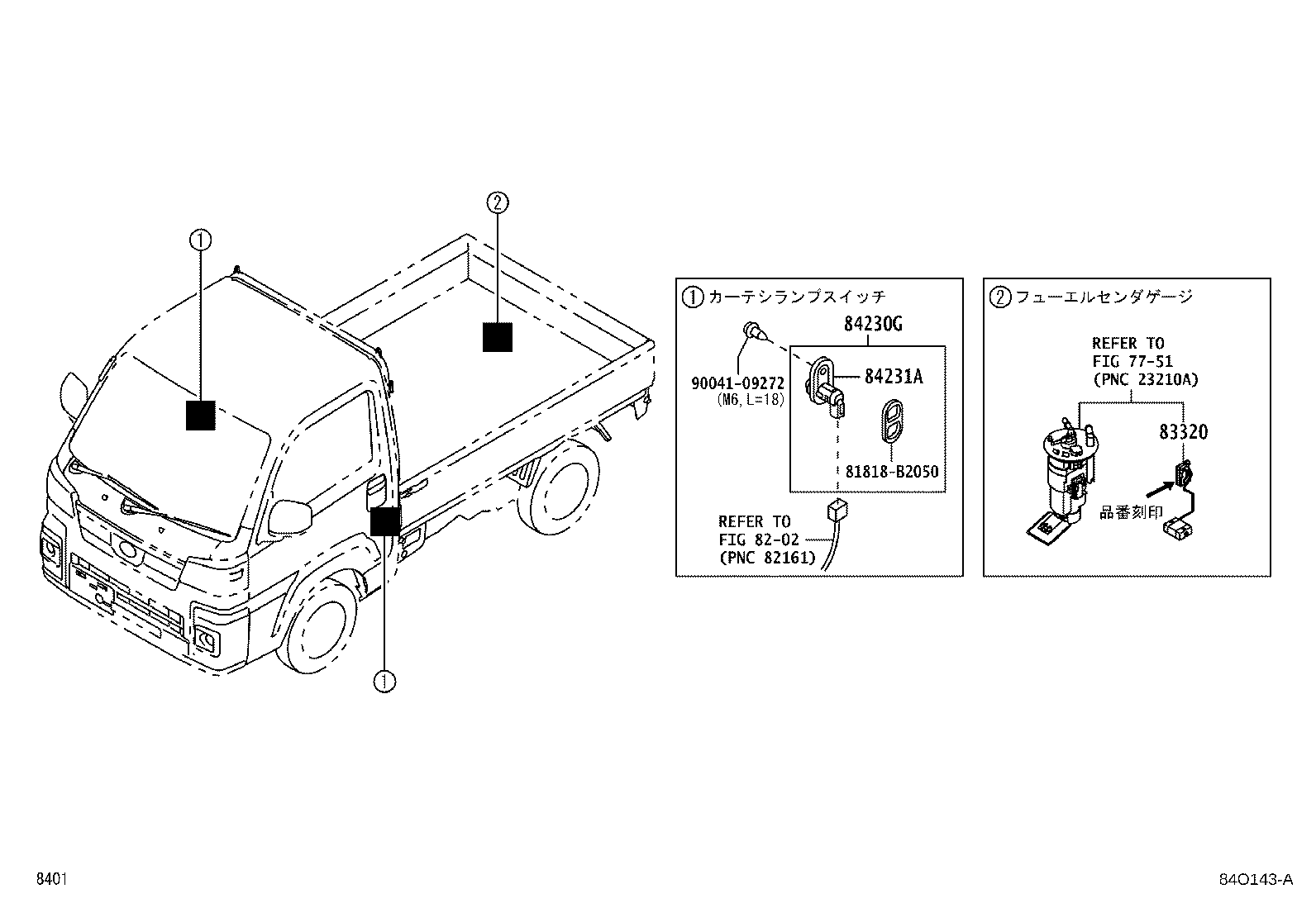

Figure 84O405A 84O405A 2021-12 → — Figure 84O406B 84O406B 2021-12 → — Figure 84O137 84O137 2021-12 → — Figure 84O407 84O407 2021-12 → — Figure 84O142 84O142 2021-12 → — Figure 84O133B 84O133B 2021-12 → — Figure 84O408B 84O408B 2021-12 → — Figure 84O143A 84O143A 2021-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
81713 Holder, Fusee
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82643B Relay, Dim
82661 Cover, Relay Block, NO.1
82674 Cover, Junction Block Lower
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84030 Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84220 Switch Assy, Transfer Lever Select
84220C Switch Assy, Transmission Position Indicator
84230G Switch Assy, Courtesy Lamp
84231A Switch, Courtesy Lamp
84260 Switch Assy, Deck Lamp
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84720A Switch Assy, Pattern Select, NO.1
84725A Switch, Differential Lock
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85916D Relay, Fog Lamp
85925 Relay, Radiator Fan
89111 Computer, Network Gateway
89419A Sensor, Clutch Stroke
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
