Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 3 illustrations

Illustrations

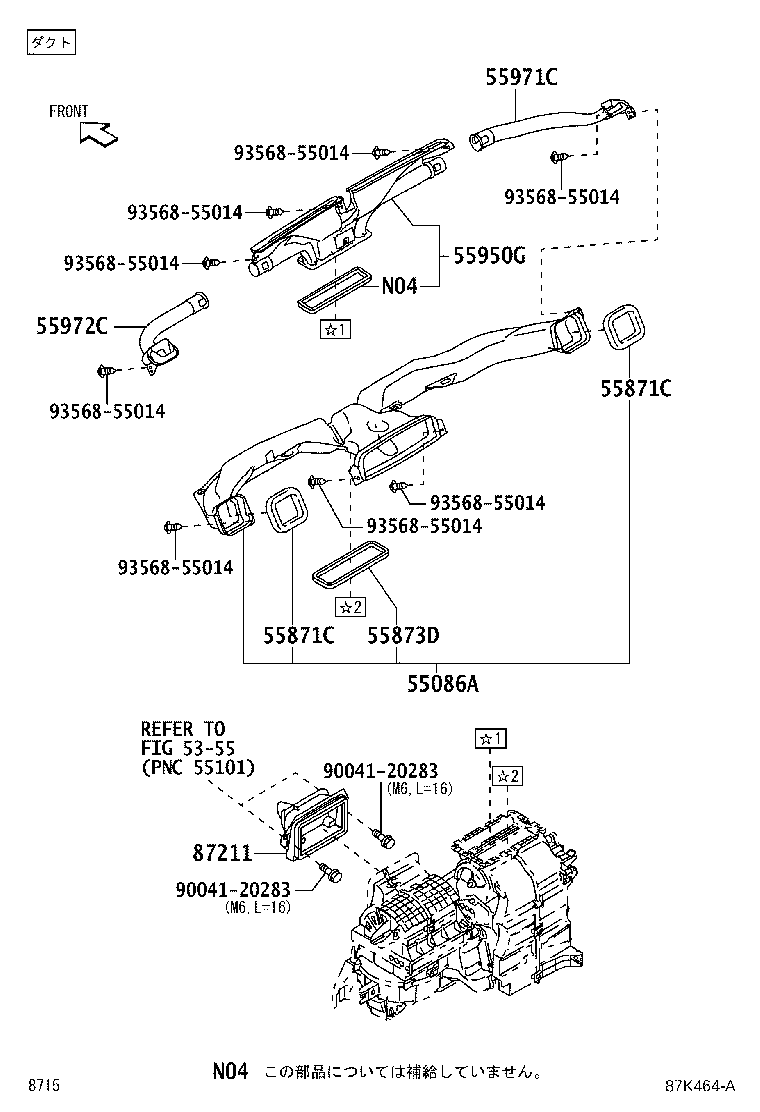

Figure 87K710A 87K710A 2021-12 → — Figure 87K464A 87K464A 2021-12 → — Figure 87K711A 87K711A 2021-12 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871C Seal, Air Duct
55873D Seal, Air Duct, Center
55906A Cable Sub-assy, Defroster Damper Control
55907R Cable Sub-assy, Temperature Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55937 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
84660H Switch Assy, Cooler Control
87211 Duct, Air, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
