Toyota Scion IQ
2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States
Supported model
Data version 2015-12

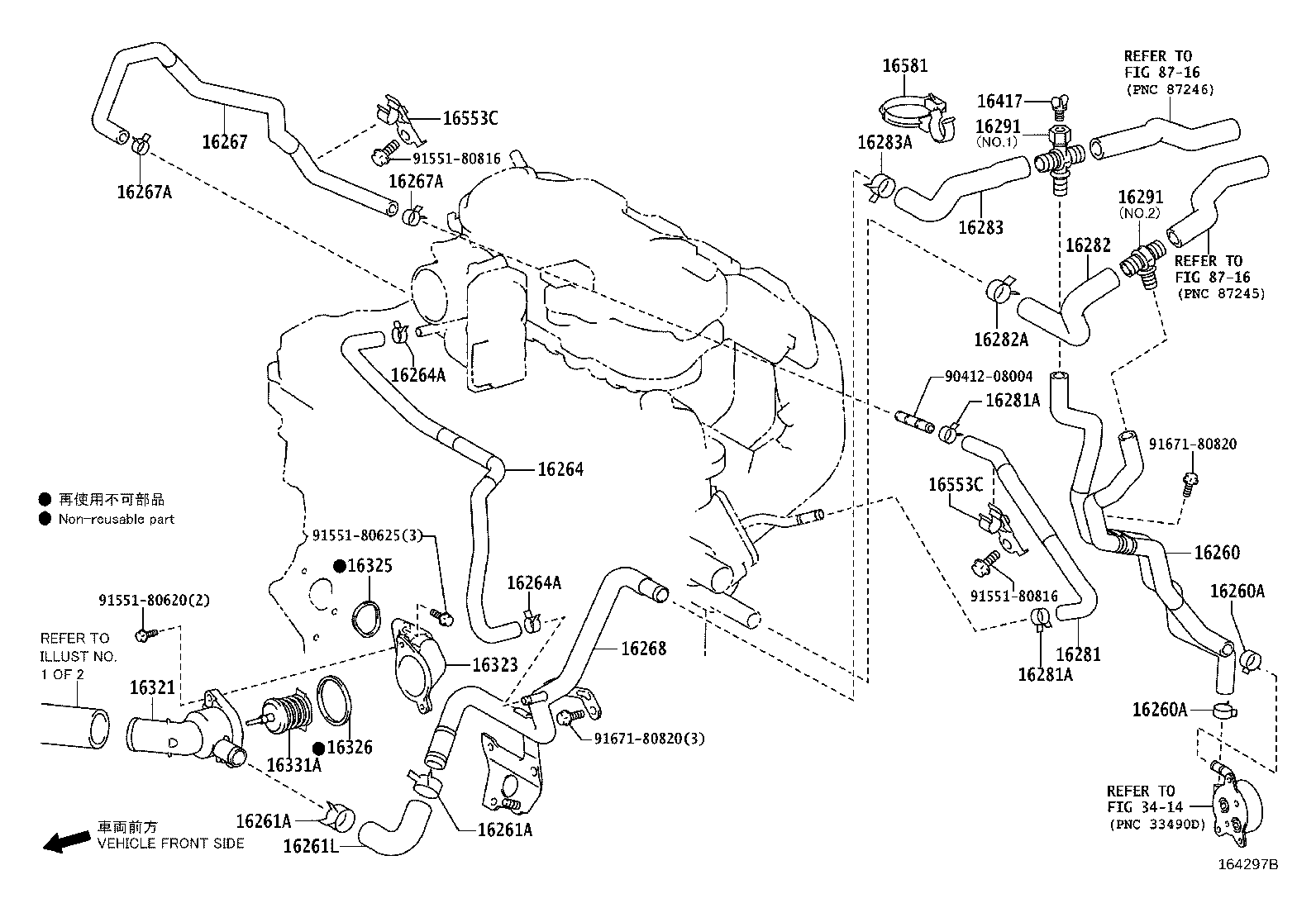

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16260 — Hose Assy, Water By-pass | ||||
| 16260-47030 |
Hose Assy, Water By-pass
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16260A — Clip(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96134-41900 |
Clip(FOR WATER BY-PASS HOSE ASSY)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 96136-42901 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16261L — Hose, Water By-pass | ||||
| 16261-47120 |
Hose, Water By-pass
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-47020 |
Hose, Water By-pass, NO.2
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-47020 |
Hose, Water By-pass, NO.3
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-47061 |
Pipe, Water By-pass, NO.1
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-47020 |
Hose, Water By-pass, NO.4
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-47020 |
Hose, Water By-pass, NO.5
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-47021 |
Hose, Water By-pass, NO.6
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16291 — Joint, Water Hose | ||||
| 16291-47020 note |
Joint, Water Hose
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16291-47040 note |
Joint, Water Hose
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16321 — Inlet, Water | ||||
| 16321-47021 |
Inlet, Water
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16323 — Housing, Water Inlet | ||||
| 16323-47010 |
Housing, Water Inlet
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-47010 |
Gasket, Water Inlet Housing, NO.1
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16331A — Thermostat | ||||
| 90916-03147 note |
Thermostat
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16417 — Cock | ||||
| 16407-97201 |
Cock
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16553C — Clamp, Hose | ||||
| 16581-47030 |
Clamp, Hose
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-47010 |
Clamp, Hose(FOR WATER HOSE)
2011-07 → 2015-06
ended
|
1NRFE NGJ10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
