Toyota Scion IQ
2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States
Supported model
Data version 2015-12
Starter
8 part groups · 2 illustrations

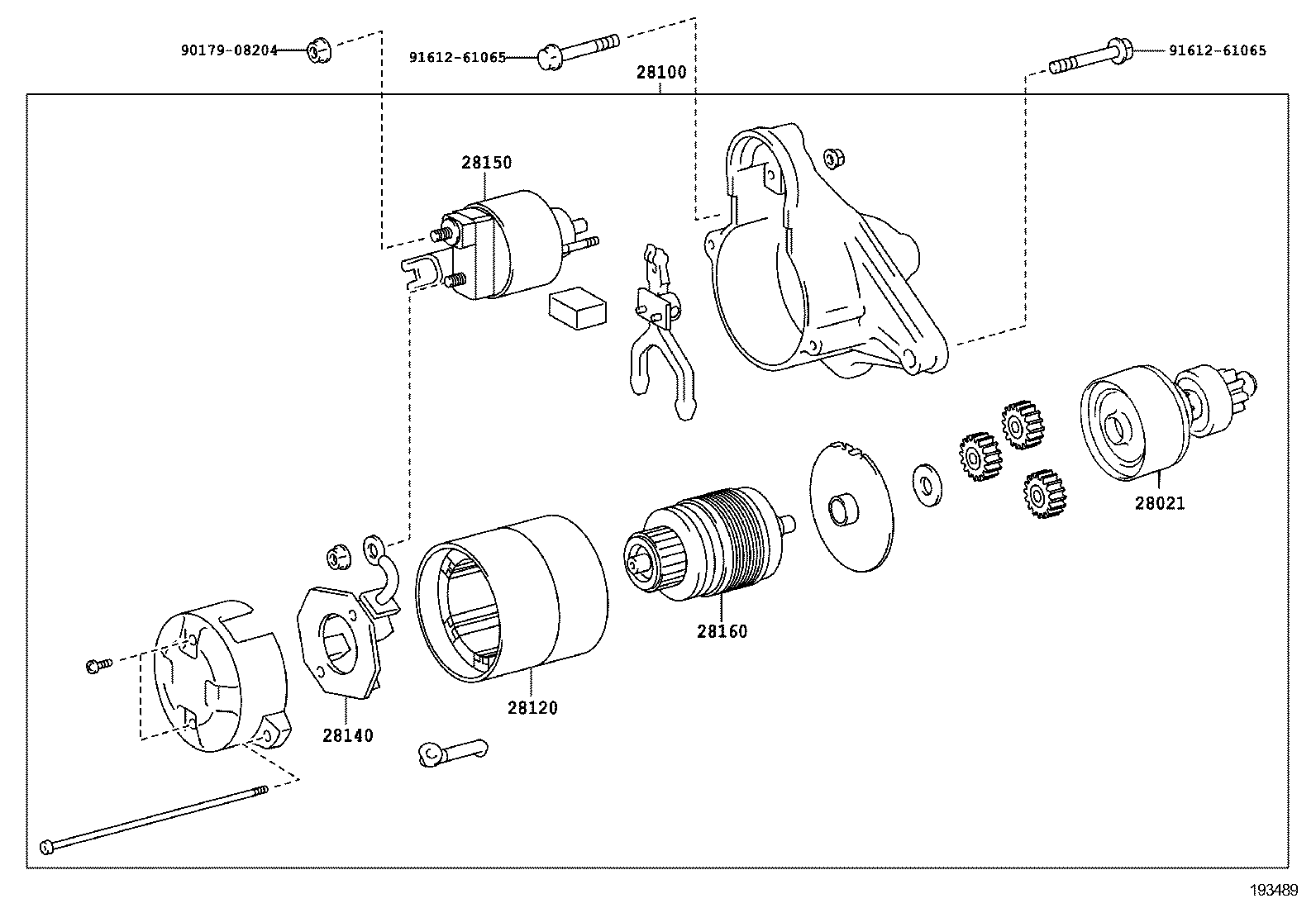

Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28140 | Holder Assy, Starter Brush |
| 28142A | Starter Kit |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
