Toyota Scion IQ
2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States
Supported model
Data version 2015-12

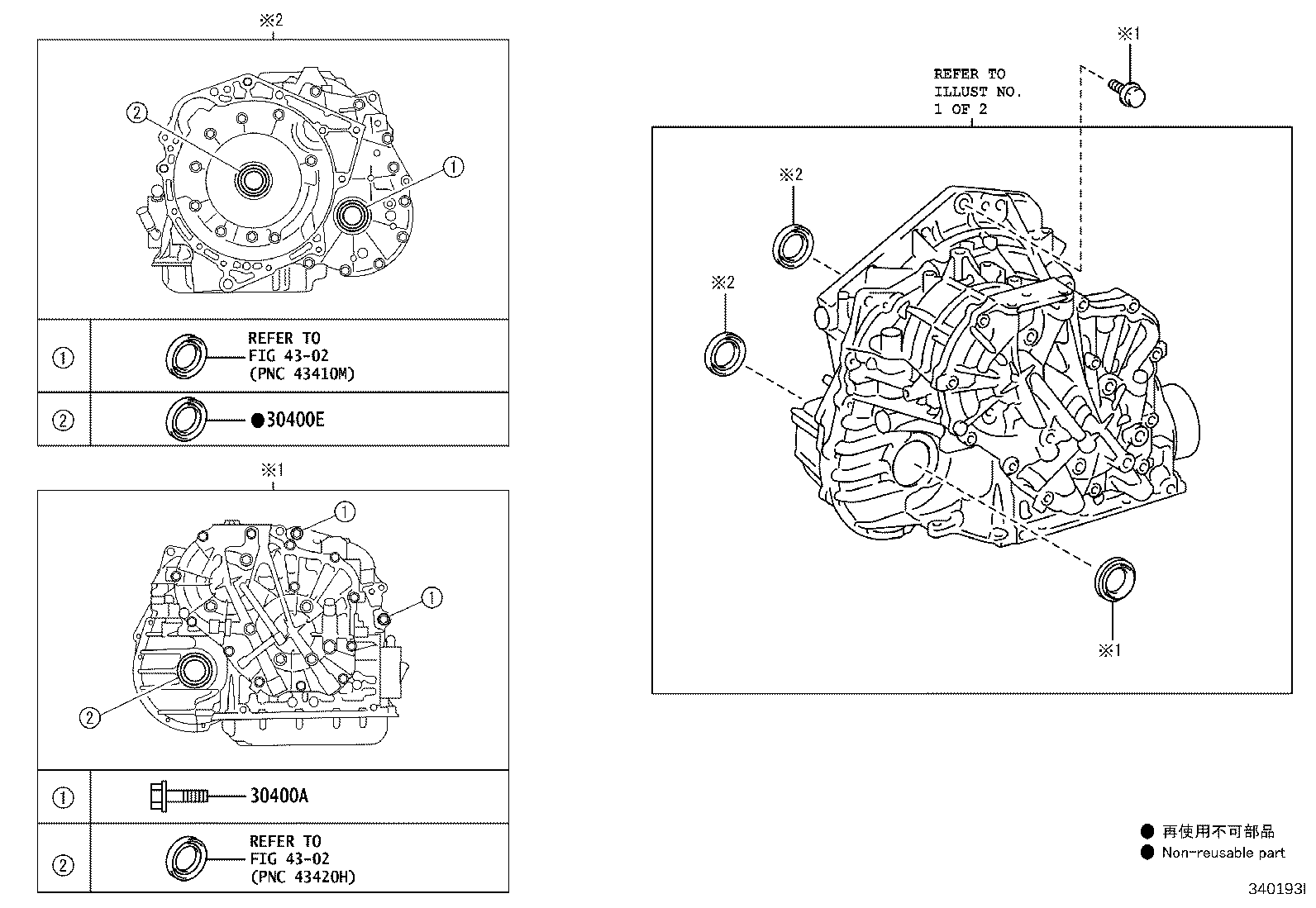

Transaxle Assy(CVT)
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30400 | Transaxle Assy, Continuously Variable |
| 30400A | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 30400E | Seal, Type T Oil(FOR CVT OIL PUMP) |
| 30400J | Plug, Transaxle Hole |
| 30400N | Plug, Refill(CVT) |
| 30400P | Gasket, Refill Plug(CVT) |
| 35012B | Hose Sub-assy, Transmission Breather |
| 35106L | Pan Sub-assy, Transaxle Oil(CVT) |
| 35106P | Bolt(FOR TRANSAXLE OIL PAN) |
| 35125E | Tube, Overflow(CVT) |
| 35125F | Plug, Overflow(CVT) |
| 35125G | Gasket, Overflow Plug(CVT) |
| 35141E | Ring, O(FOR BREATHER PLUG) |
| 35141F | Plug, Breather, NO.1(CVT) |
| 35150B | Plug Assy, Transmission Case |
| 35150C | Ring, O (FOR TRANSMISSION CASE PLUG) |
| 35168C | Gasket, Transaxle Oil Pan(CVT) |
| 35394D | Magnet, Oil Cleaner(CVT) |
| 35572C | Lever, Transmission Control Shaft |
| 82125M | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
