Toyota Scion IQ

2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

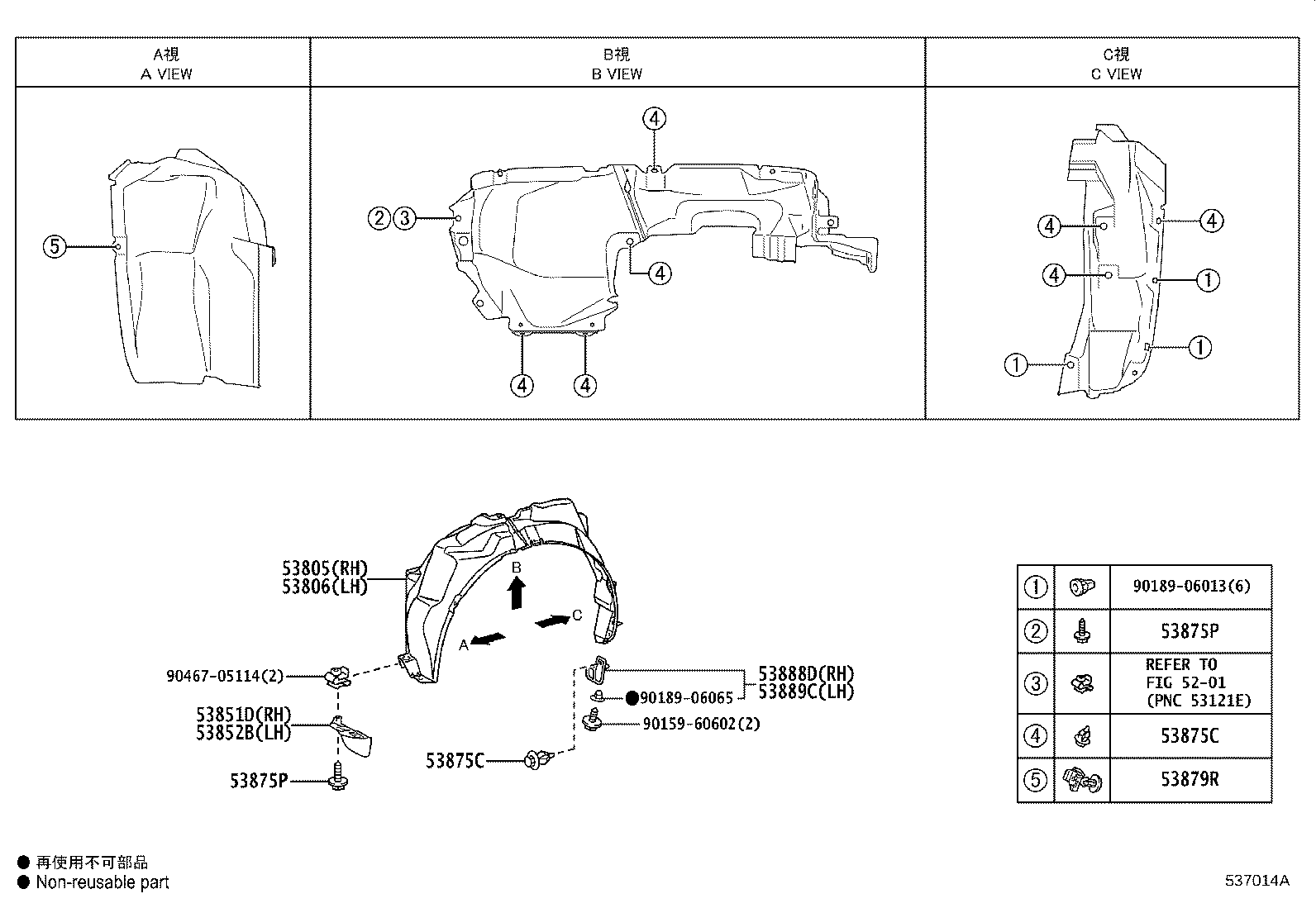

Figure 537013A 537013A 2011-07 → — Figure 537014A 537014A 2011-07 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53878C Spacer, Front Fender
53879R Retainer, Front Fender Liner
53882F Seal, Front Fender
53888D Mudguard, Fender Rear Plate, RH
53889C Mudguard, Fender Rear Plate, LH
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
