Toyota Scion IQ

2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States

Supported model Data version 2015-12

Instrument Panel & Glove Compartment

36 part groups · 4 illustrations

PNC	Description

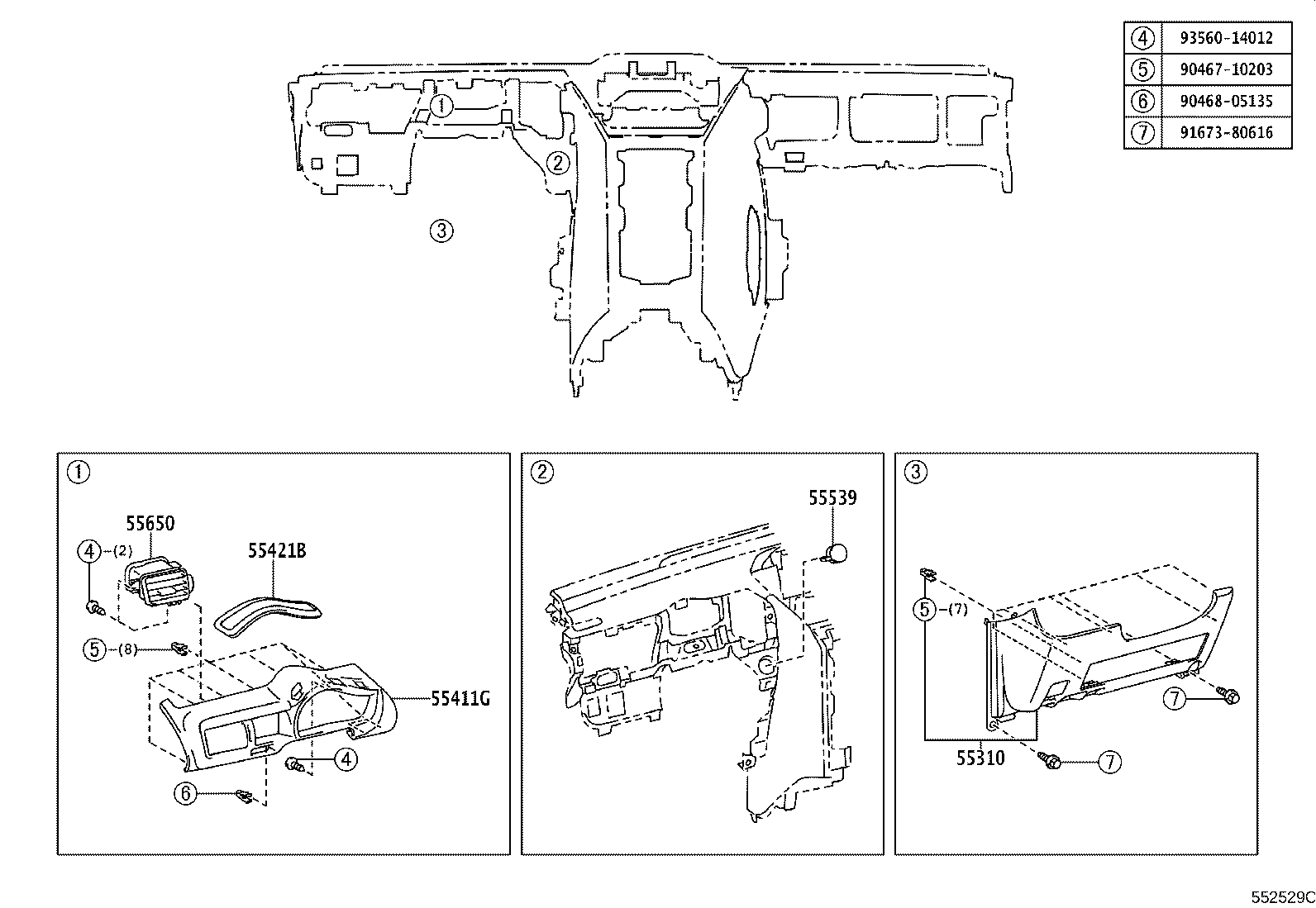

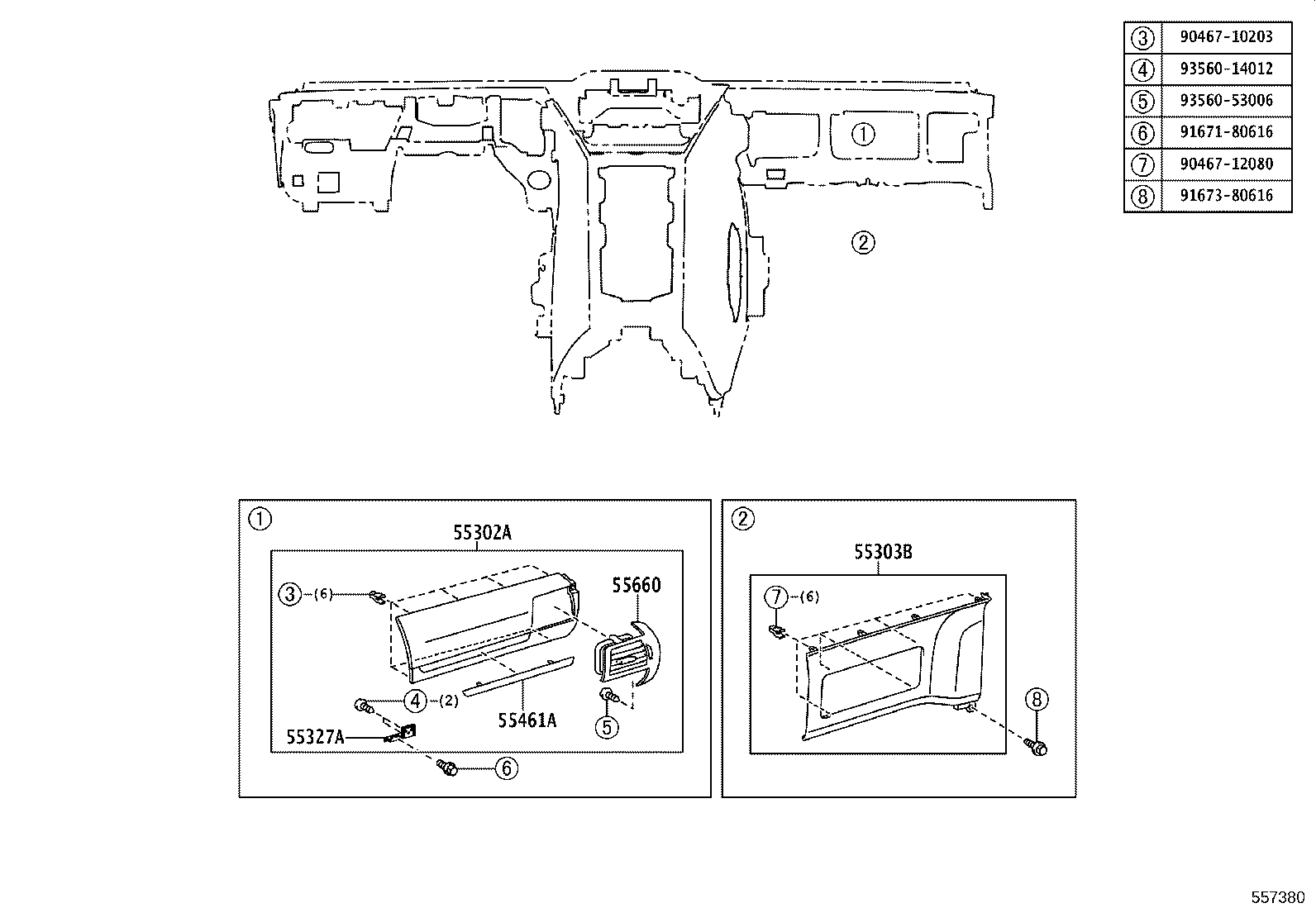

55301	Panel Sub-assy, Instrument
55302A	Panel Sub-assy, Instrument, Upper
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55310	Panel Assy, Instrument, Lower
55312	Panel, Instrument, Lower
55312A	Clip, Instrument Panel
55317A	Panel, Instrument Side, RH
55318C	Panel, Instrument Side, LH
55327A	Stay, Instrument Panel, NO.2
55330B	Reinforcement Assy, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55355E	Cushion, Instrument Panel
55356C	Cushion, Instrument Panel, NO.2
55374B	Bracket, Instrument Panel
55376	Bracket, Instrument Panel Mounting, NO.1
55394C	Bolt, Instrument Panel
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G	Panel, Instrument Cluster Finish, NO.1
55412C	Panel, Instrument Cluster Finish, Center NO.1
55413D	Panel, Instrument Cluster Finish, Center Lower
55414A	Panel, Instrument Cluster Finish, End
55416C	Retainer, Instrument Cluster Finish Panel
55421B	Panel, Instrument Cluster Finish, Upper
55422C	Panel, Instrument Cluster Finish, Center Upper
55437A	Retainer, Instrument Panel Finish Panel, NO.1
55461A	Ornament, Instrument Panel
55476C	Garnish, Instrument Panel Finish Plate
55522B	Cover, Radio Tuner Opening
55539	Cover, Spare Switch Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
73990	Airbag Assy, Instrument Panel, Lower NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
