Toyota Scion IQ

2011-07 → 2015-06 · chassis NGJ10 · catalogue 102410 · United States

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

9 part groups · 2 illustrations

Illustrations

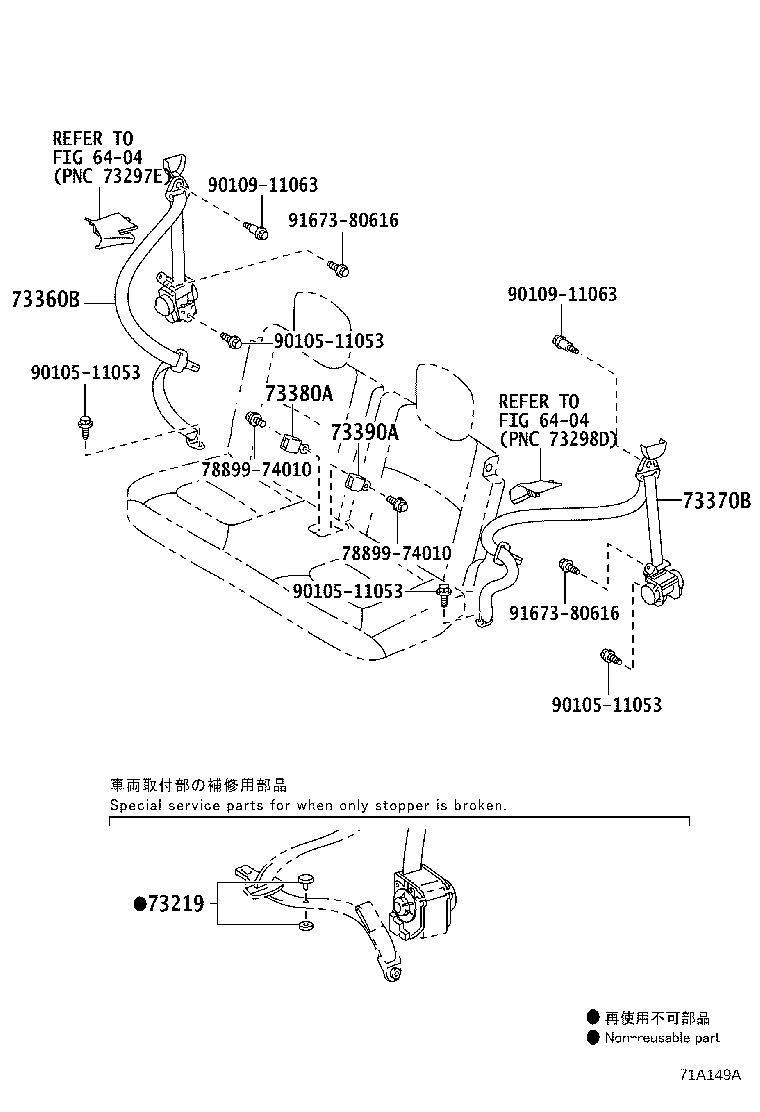

Figure 716709C 716709C 2011-07 → — Figure 71A149A 71A149A 2011-07 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380A Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
