Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09

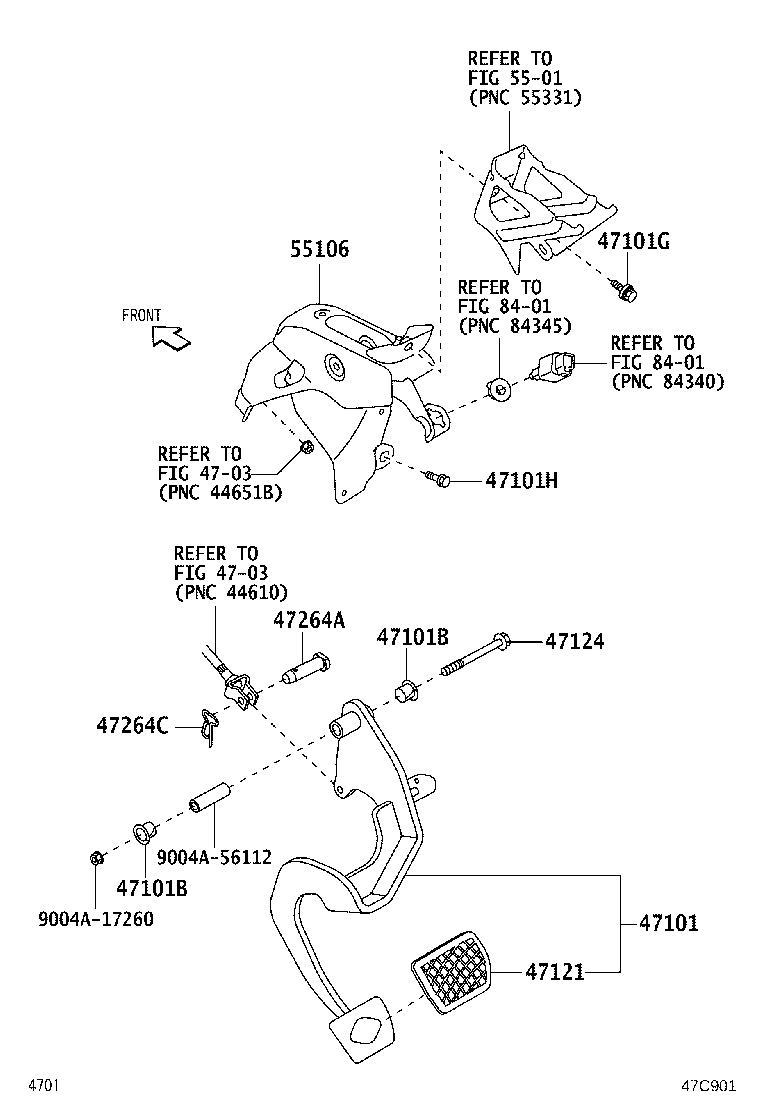

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47110-BZ530 |
Pedal Sub-assy, Brake
2021-04 → 2026-07
ended
|
A25# RHD CVT | — | |
| 47110-BZ540 |
Pedal Sub-assy, Brake
2021-04 → 2026-07
ended
|
A25# RHD 5F | — | |
| 47110-BZ550 |
Pedal Sub-assy, Brake
2021-08 → 2026-08
ended
|
A250 LHD CVT;A251 LHD +5 | — | |
| 47110-BZ560 |
Pedal Sub-assy, Brake
2021-08 → 2026-08
ended
|
A25# LHD 5F | — | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 9004A-38094 |
Bush(FOR BRAKE PEDAL)
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 47101G — Bolt, Brake Pedal Stop, NO.1 | ||||
| 9004A-11380 |
Bolt, Brake Pedal Stop, NO.1
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 47101H — Bolt, Brake Pedal Stop, NO.2 | ||||
| 9004A-11381 |
Bolt, Brake Pedal Stop, NO.2
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-BZ070 |
Pad, Brake Pedal
2021-04 → 2026-08
ended
|
A251 L GCC;A25# CVT +1 | — | |
| 47121-BZ080 |
Pad, Brake Pedal
2021-04 → 2024-12
ended
|
A25# 5F | — | |
| 47121-BZ081 |
Pad, Brake Pedal
2025-01 → 2026-08
ended
|
A25# 5F | — | |
| 47124 — Shaft, Brake Pedal | ||||
| 9004A-10281 |
Shaft, Brake Pedal
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90042-40151 |
Pin(FOR PUSH ROD)
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 47264C — Clip(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68076 |
Clip(FOR PUSH ROD CLEVIS PIN)
2021-04 → 2026-08
ended
|
A250;A251 5F;A251 L GCC;A251 +2 | — | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-BZ520 |
Support Sub-assy, Brake Pedal
2021-04 → 2026-07
ended
|
A25# RHD | — | |
| 55106-BZ530 |
Support Sub-assy, Brake Pedal
2021-08 → 2021-12
ended
|
A25# LHD | — | |
| 55106-BZ531 |
Support Sub-assy, Brake Pedal
2022-01 → 2026-08
ended
|
A250 LHD;A251 LHD 5F;A251 +6 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
