Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 3 illustrations

Illustrations

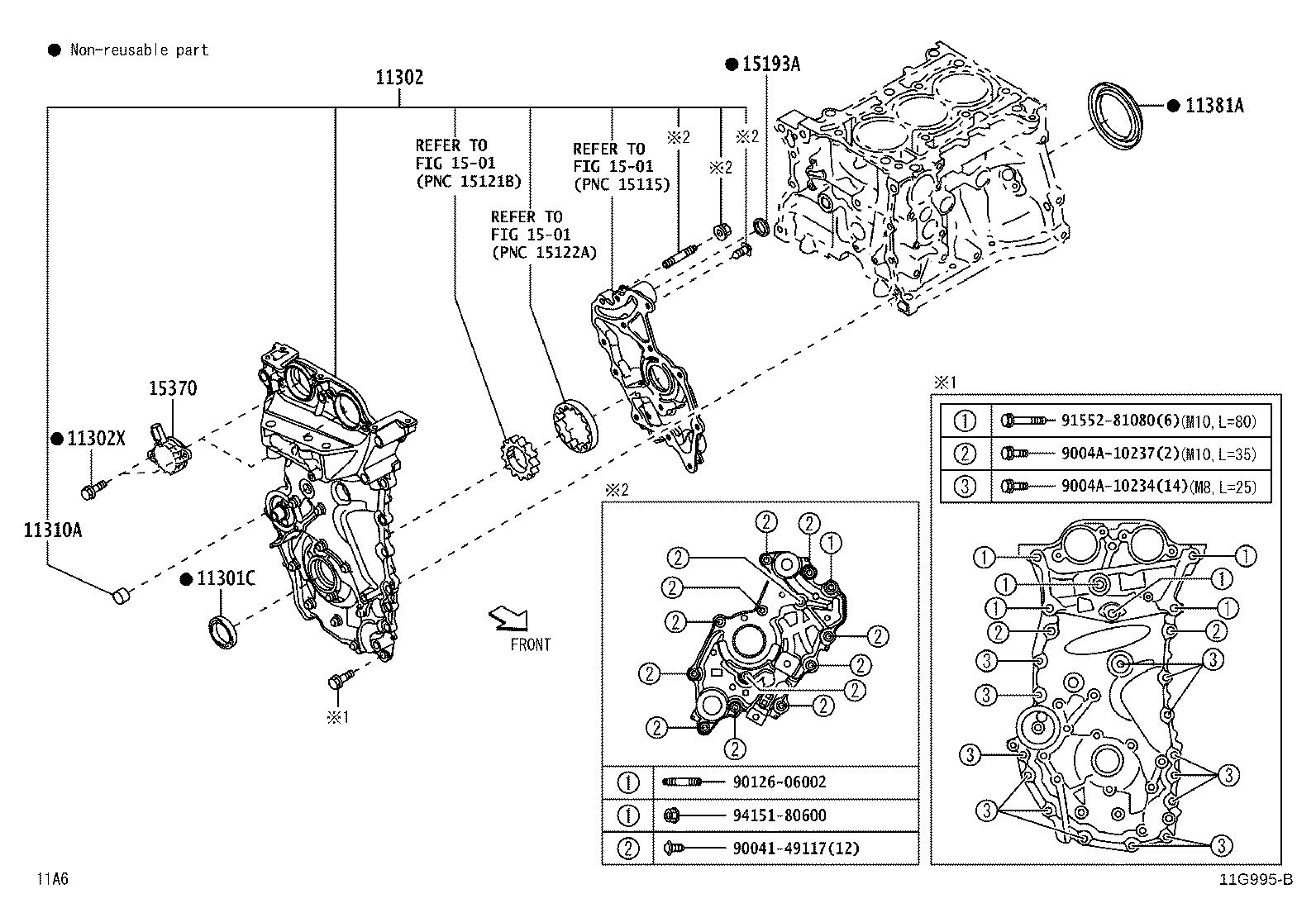

Figure 11G996B 11G996B 2021-04 → — Figure 11G995B 11G995B 2021-04 → — Figure 11G995B 11G995B 2021-10 → 2025-07

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302X Bolt, Flange
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
12316B Bracket, Engine Mounting, NO.2 RH
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
