Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

4 part groups · 4 illustrations

Illustrations

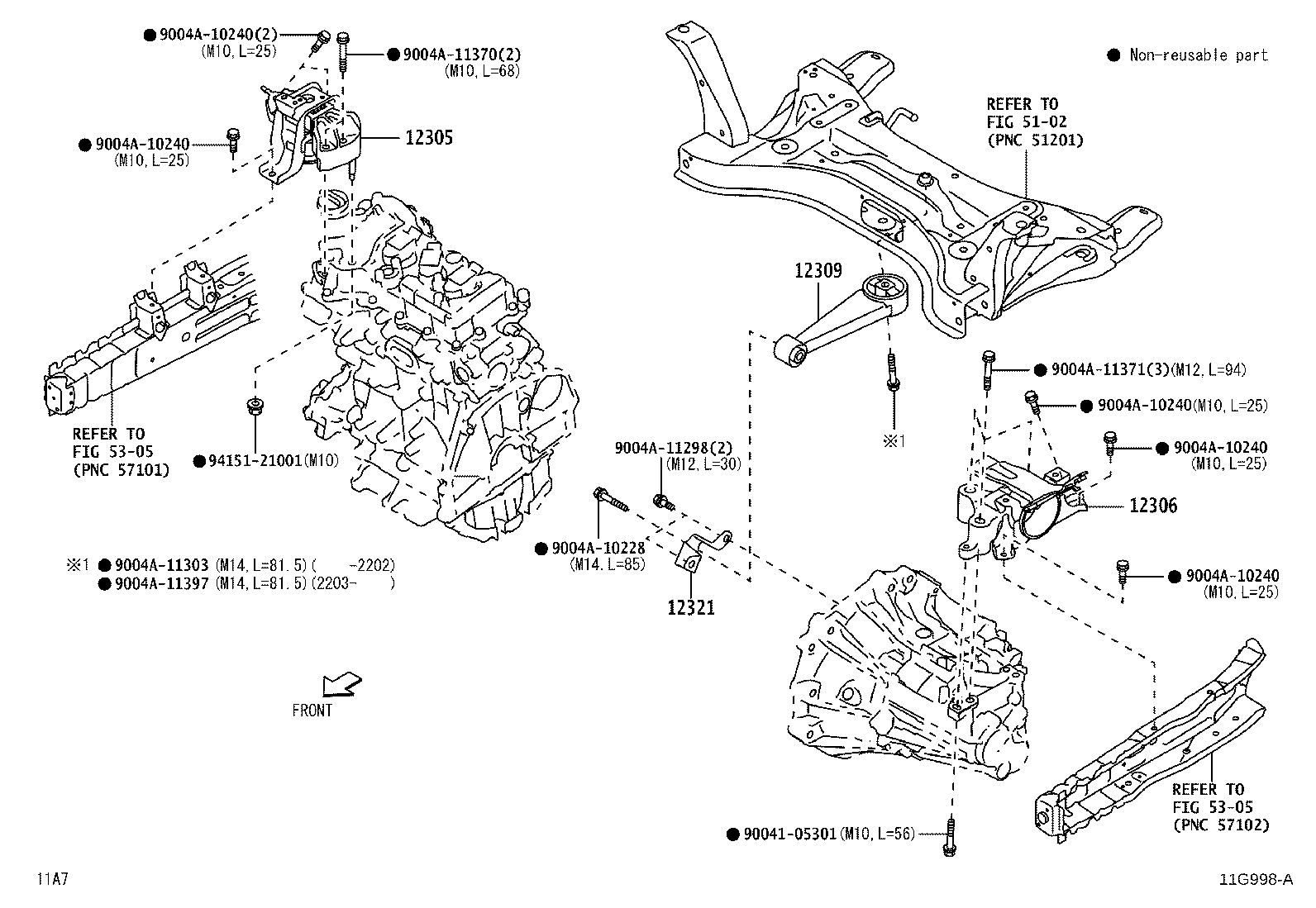

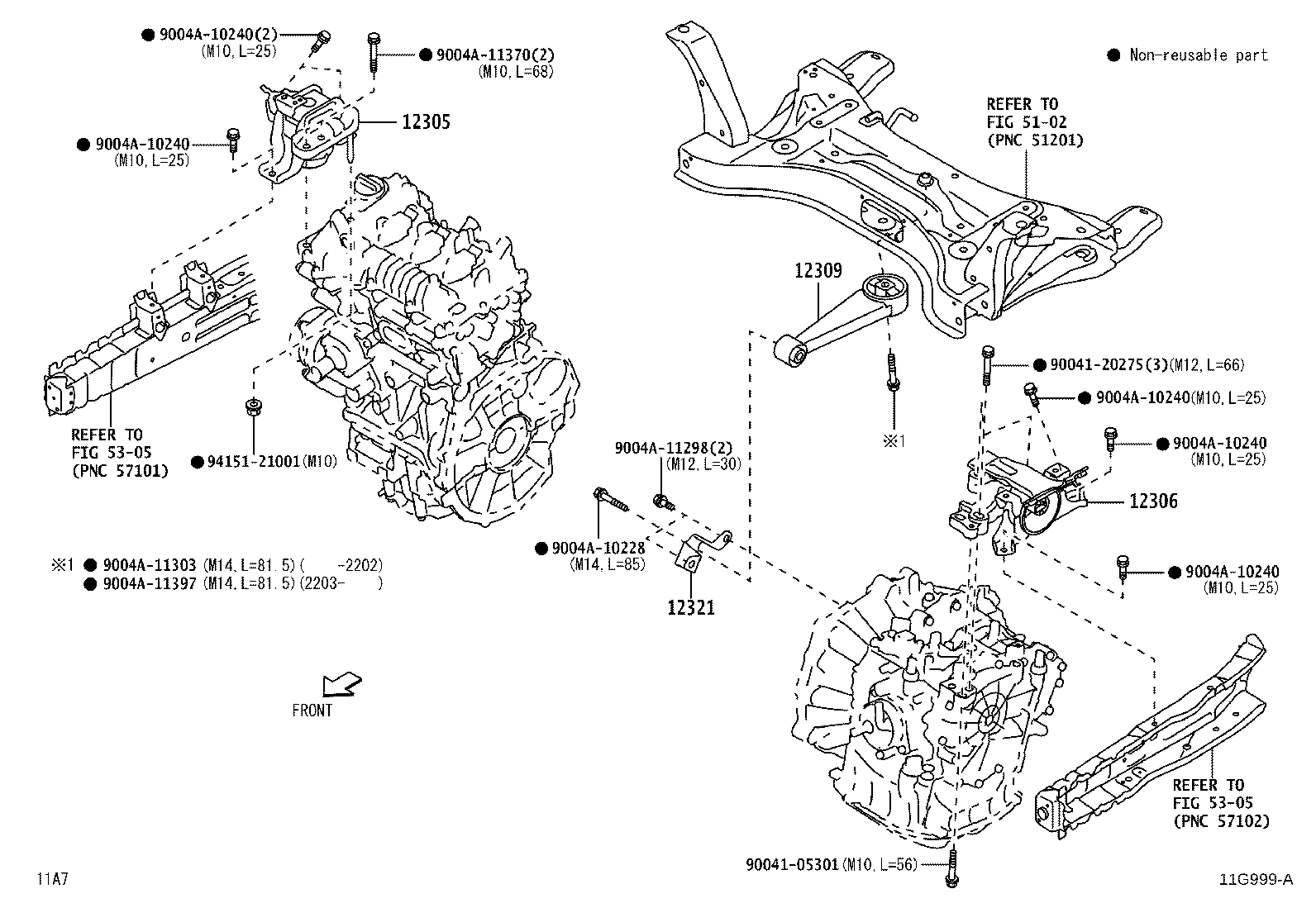

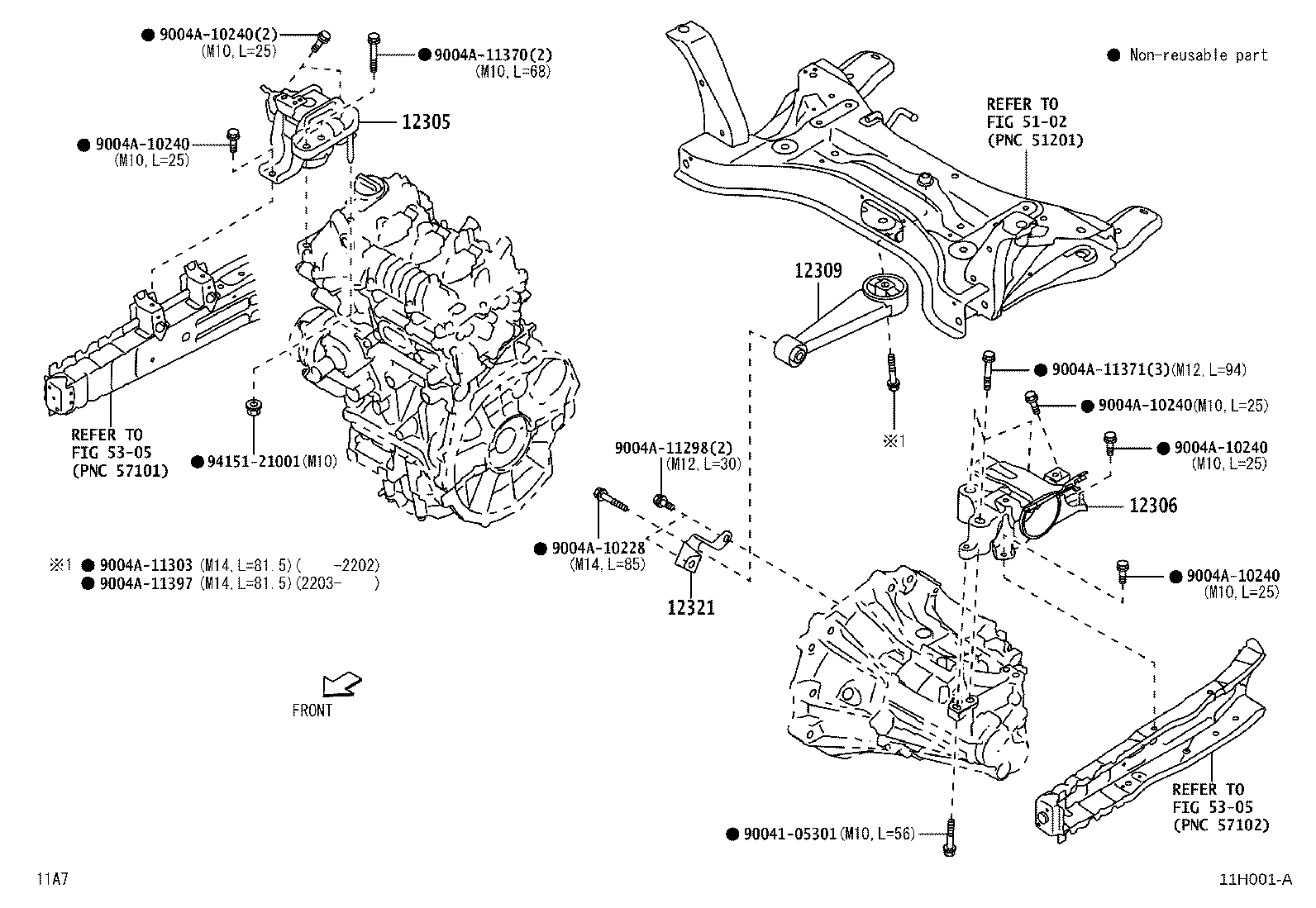

Figure 11G997A 11G997A 2021-04 → — Figure 11G998A 11G998A 2021-04 → — Figure 11G999A 11G999A 2021-04 → — Figure 11H001A 11H001A 2021-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12309 Rod Sub-assy, Engine Moving Control
12321 Bracket, Engine Mounting, Rear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
