Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

33 part groups · 3 illustrations

Illustrations

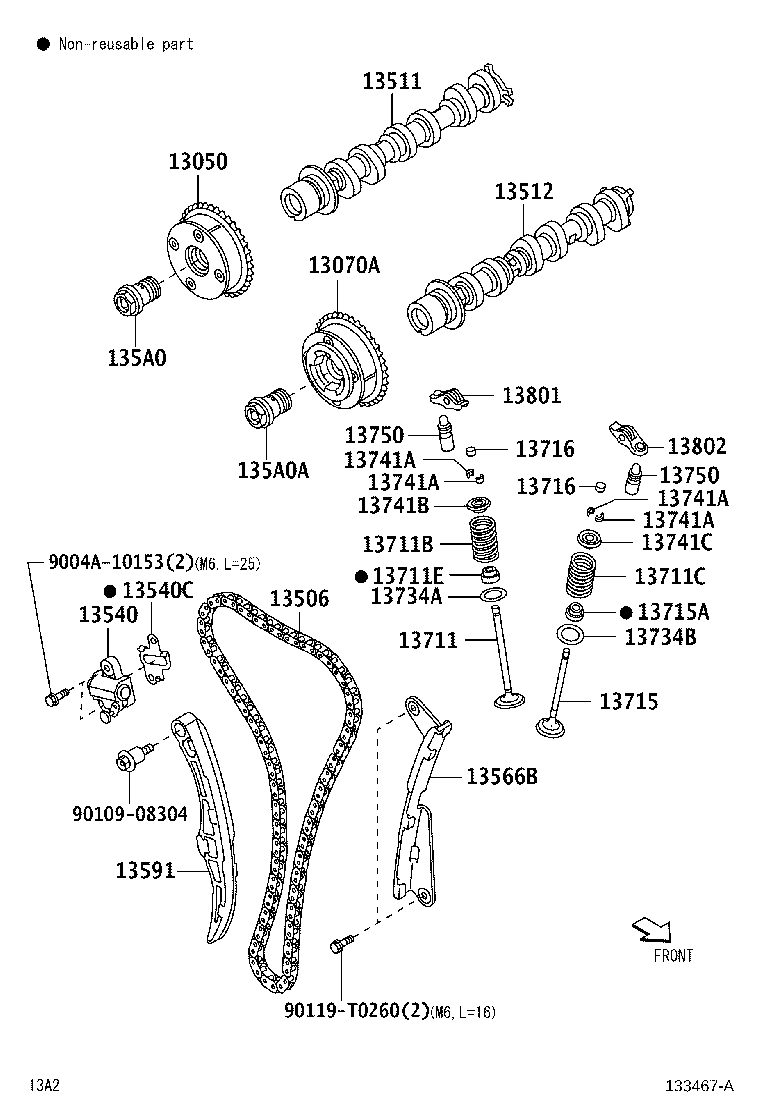

Figure 133466A 133466A 2021-04 → — Figure 133467A 133467A 2021-04 → — Figure 133467A 133467A 2021-10 → 2025-07

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13523F Bolt(FOR CAMSHAFT TIMING GEAR)
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13566B Guide, Timing Chain
13576 Bolt, Camshaft Timing Gear
13591 Arm, Timing Chain Tension
135A0 Bolt Assy, Camshaft Timing Gear, Center(FOR INTAKE)
135A0A Bolt Assy, Camshaft Timing Gear, Center(FOR EXHAUST)
13711 Valve, Intake
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711E Seal, Intake Valve Stem Oil
13711M Spring, Compression(FOR INTAKE VALVE)
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13715H Spring, Compression(FOR EXHAUST VALVE)
13716 Cap, Valve Stem
13734A Seat, Intake Valve Spring
13734B Seat, Exhaust Valve Spring
13741A Lock, Valve Spring Retainer
13741B Retainer, Intake Valve Spring
13741C Retainer, Exhaust Valve Spring
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13801 Arm Sub-assy, Valve Rocker, NO.1
13802 Arm Sub-assy, Valve Rocker, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
