Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

6 part groups · 2 illustrations

Illustrations

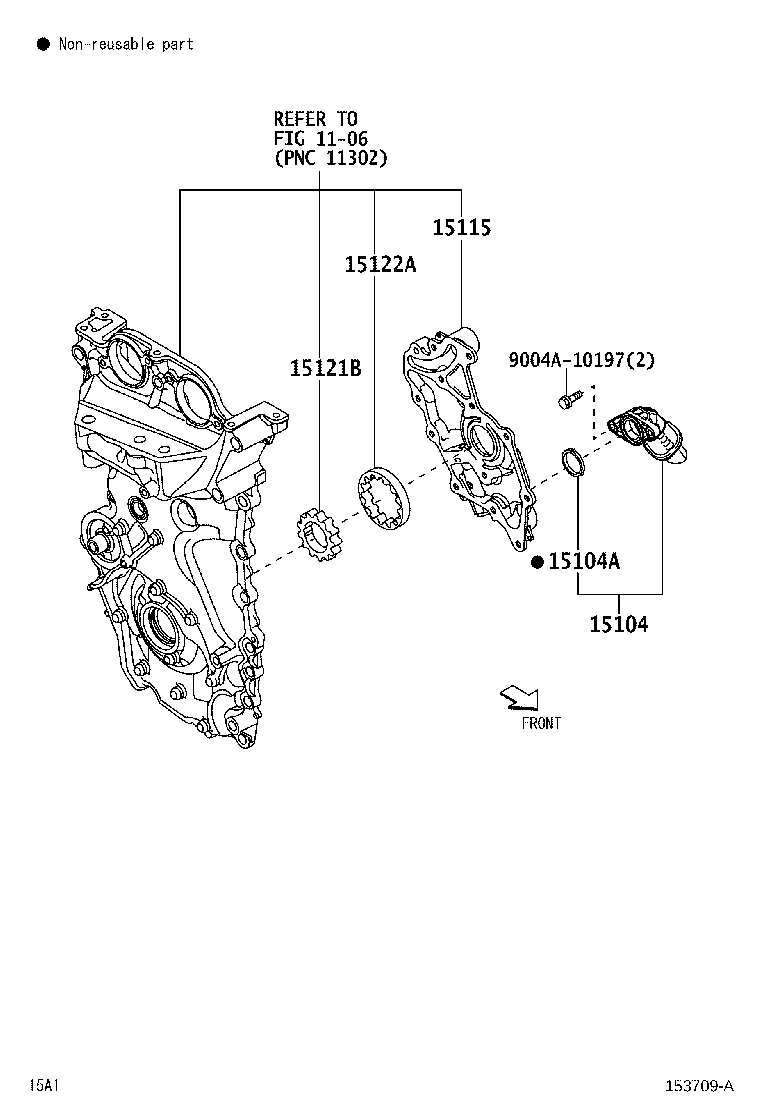

Figure 153708A 153708A 2021-04 → — Figure 153709A 153709A 2021-04 → —

Part groups

PNCDescription
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121B Rotor, Oil Pump Drive
15122A Rotor, Oil Pump Driven
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
