Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

13 part groups · 2 illustrations

Illustrations

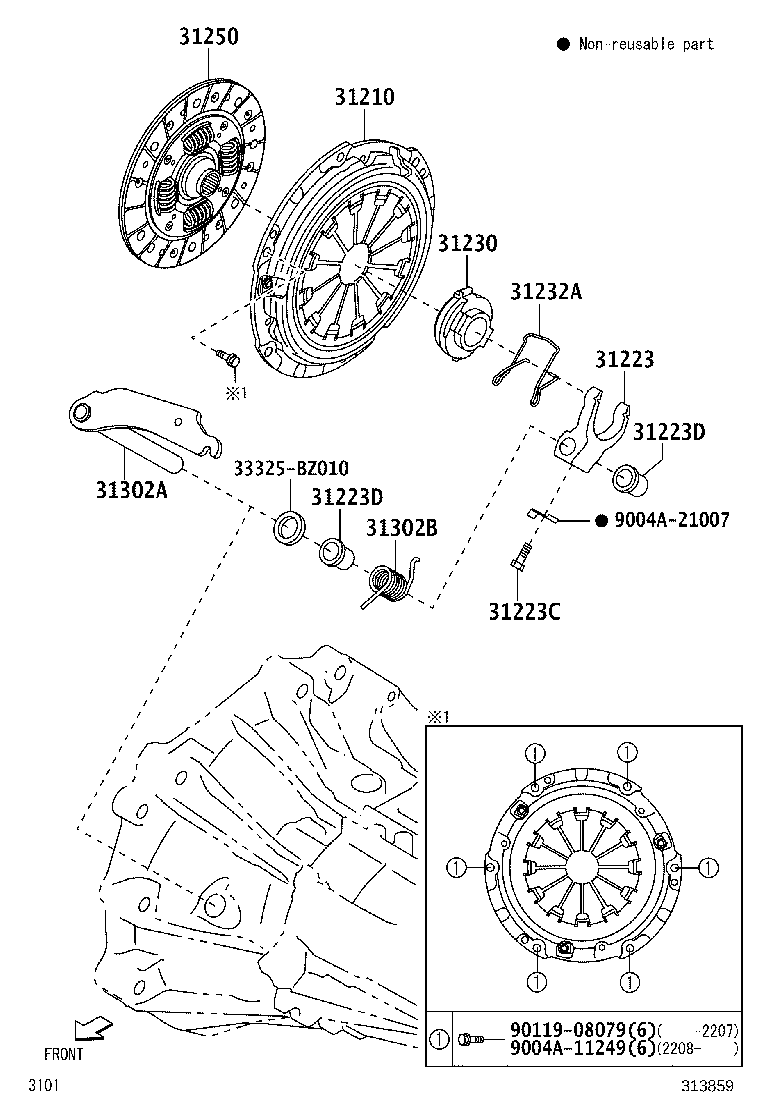

Figure 313606 313606 2021-04 → — Figure 313859 313859 2021-04 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31210 Cover Assy, Clutch
31223 Yoke, Clutch Release Lever
31223C Bolt, Hexagon(FOR CLUTCH RELEASE LEVER YOKE)
31223D Bush(FOR CLUTCH RELEASE LEVER YOKE)
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31233 Fork, Clutch Release
31234A Spring, Release Fork Support
31236B Support, Release Fork
31250 Disc Assy, Clutch
31302A Lever Sub-assy, Clutch Release Fork
31302B Spring, Torsion(FOR CLUTCH RELEASE FORK LEVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
