Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

15 part groups · 3 illustrations

Illustrations

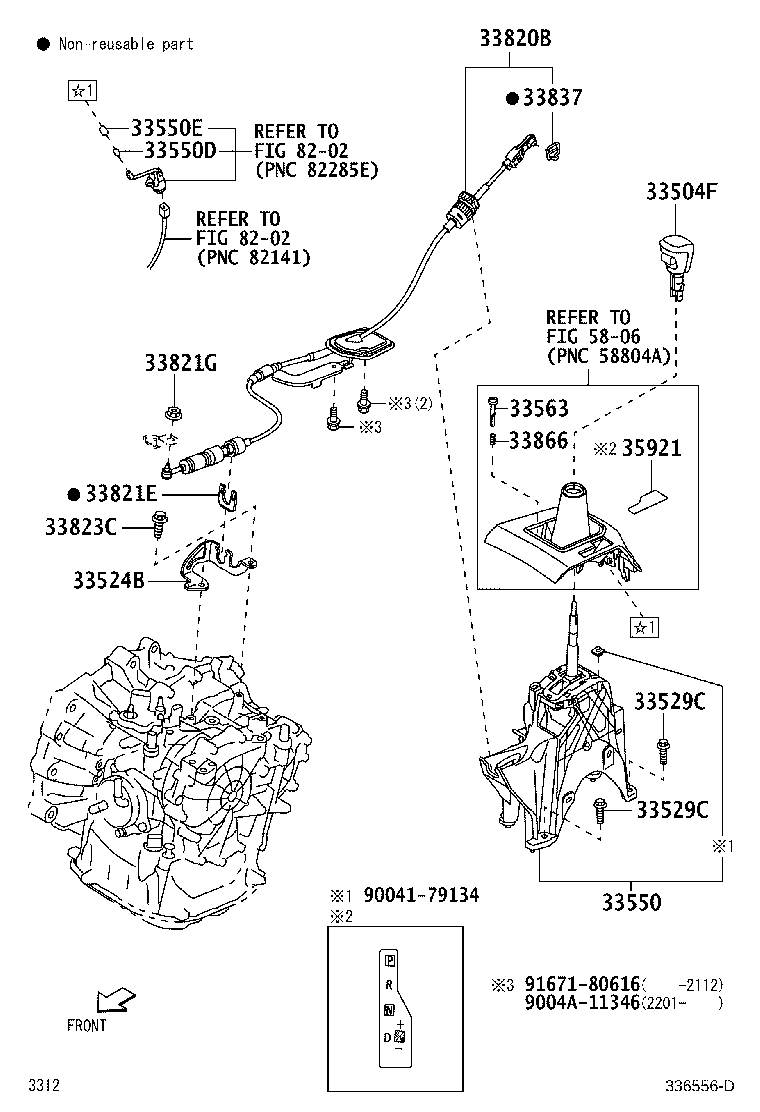

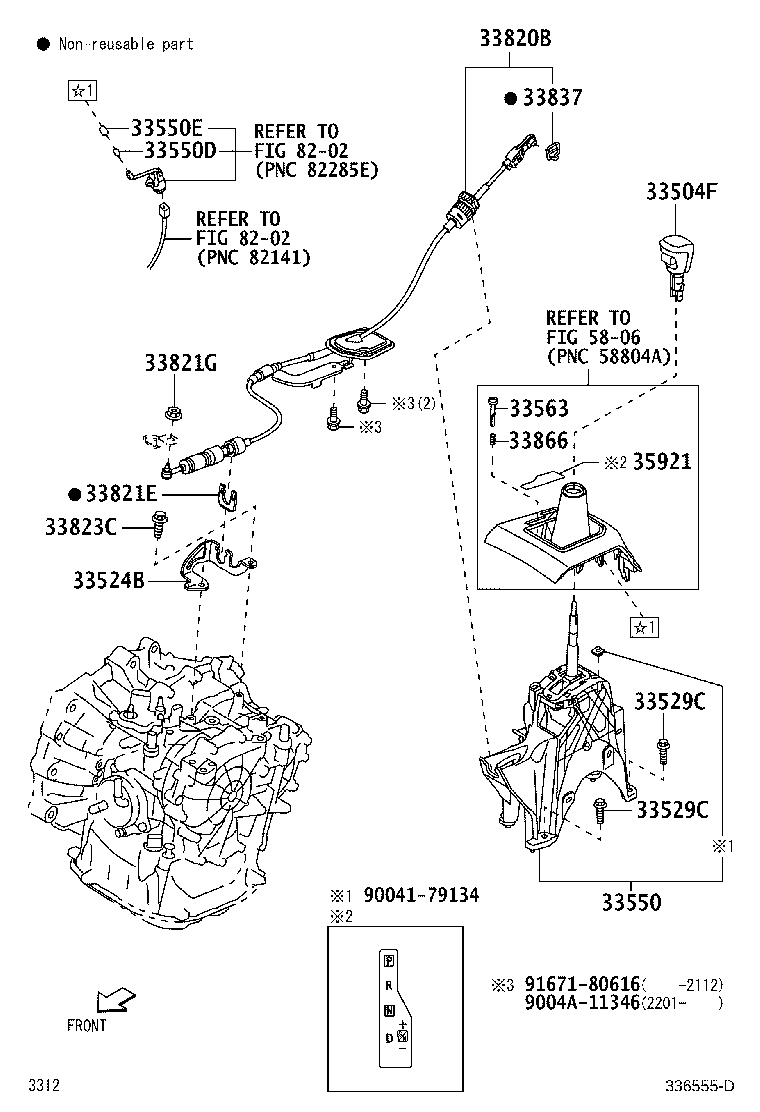

Figure 336554C 336554C 2021-04 → — Figure 336555D 336555D 2021-04 → — Figure 336556D 336556D 2021-08 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33529C Bolt, Shift Lever
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33563 Button, Shift Lock Release
33820B Cable Assy, Transmission Control
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33837 Clip, Transmission Control Cable Adjust
33866 Spring, Shift Lock Release
35921 Plate, Control Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
