Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

22 part groups · 9 illustrations

Illustrations

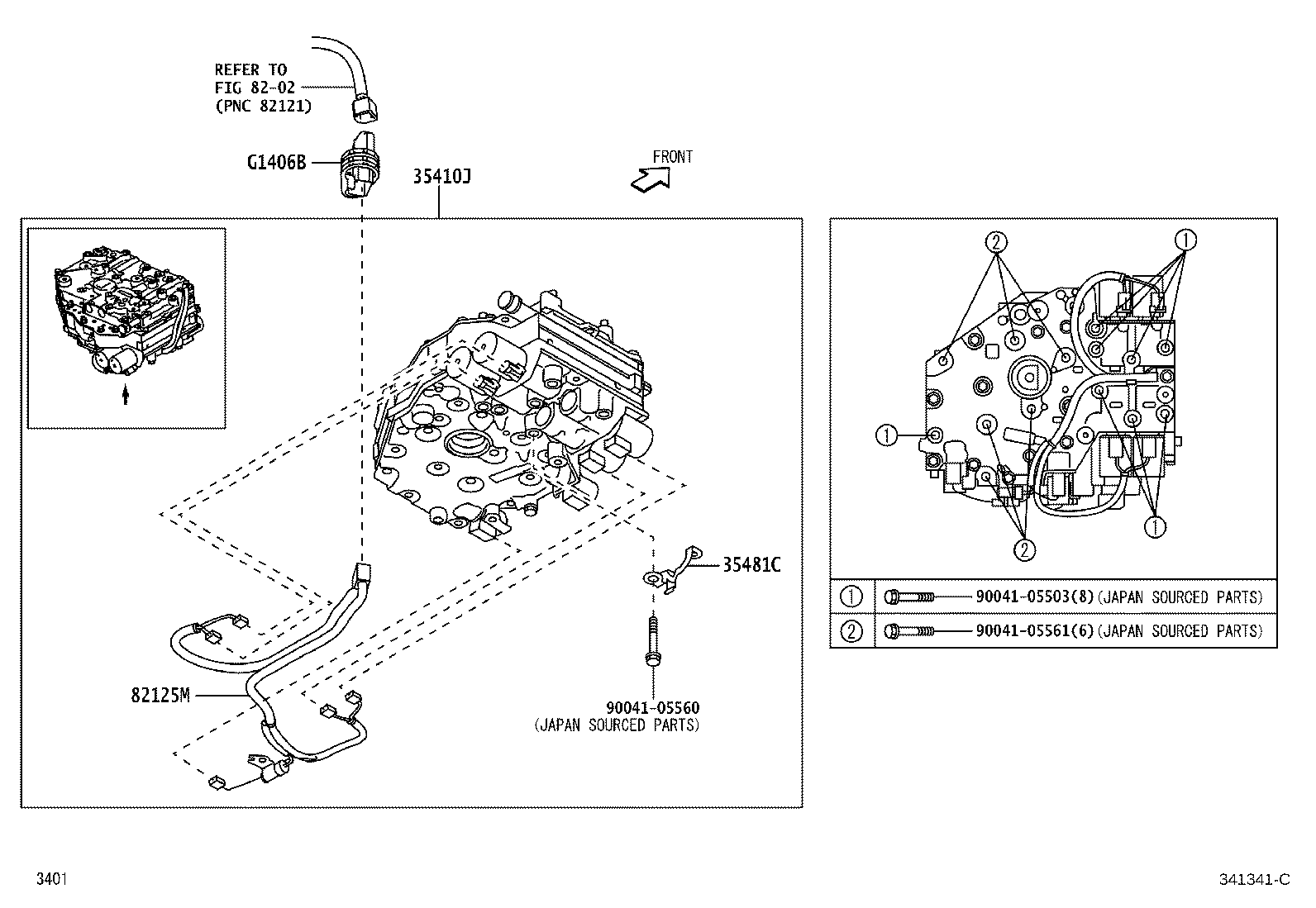

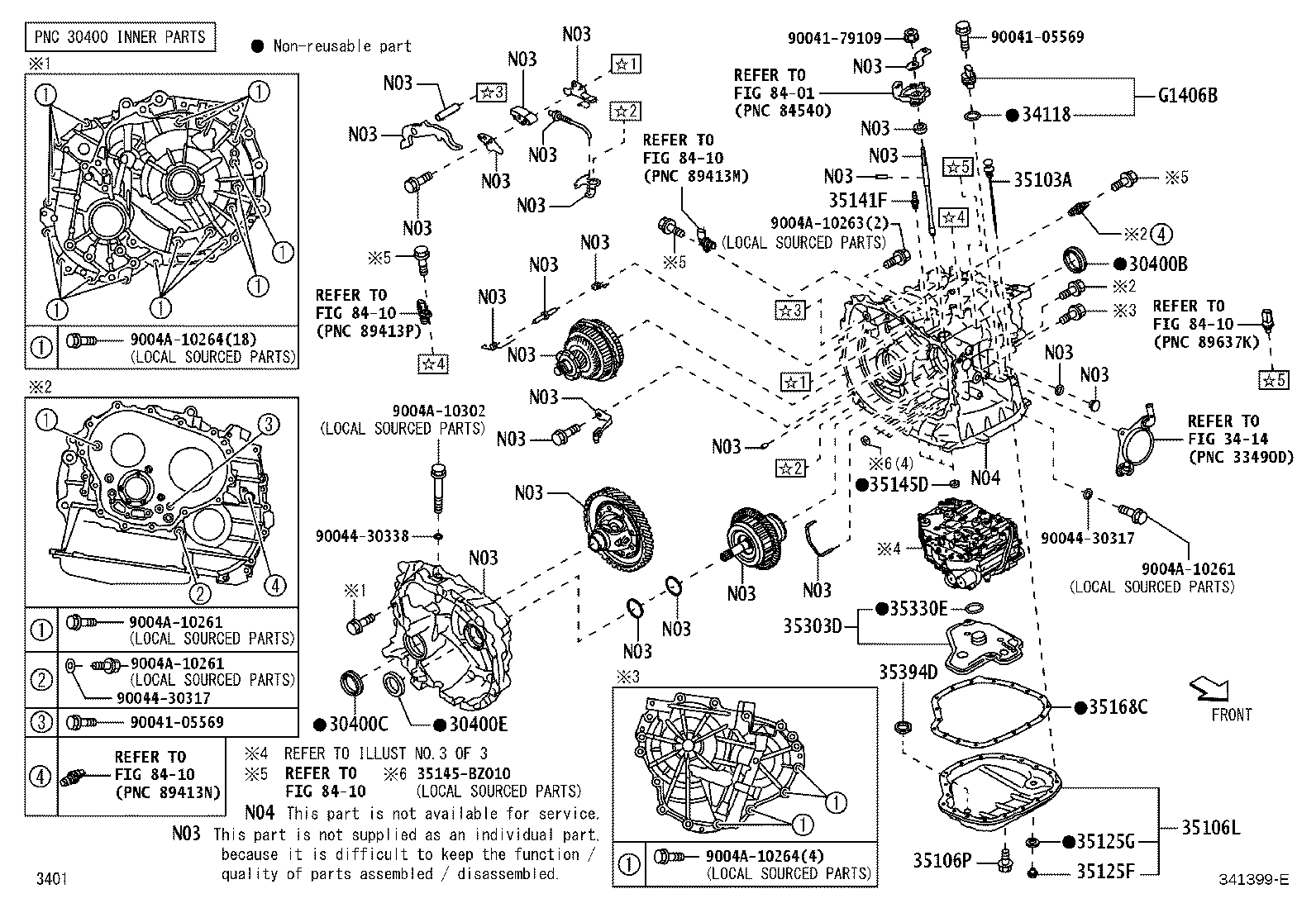

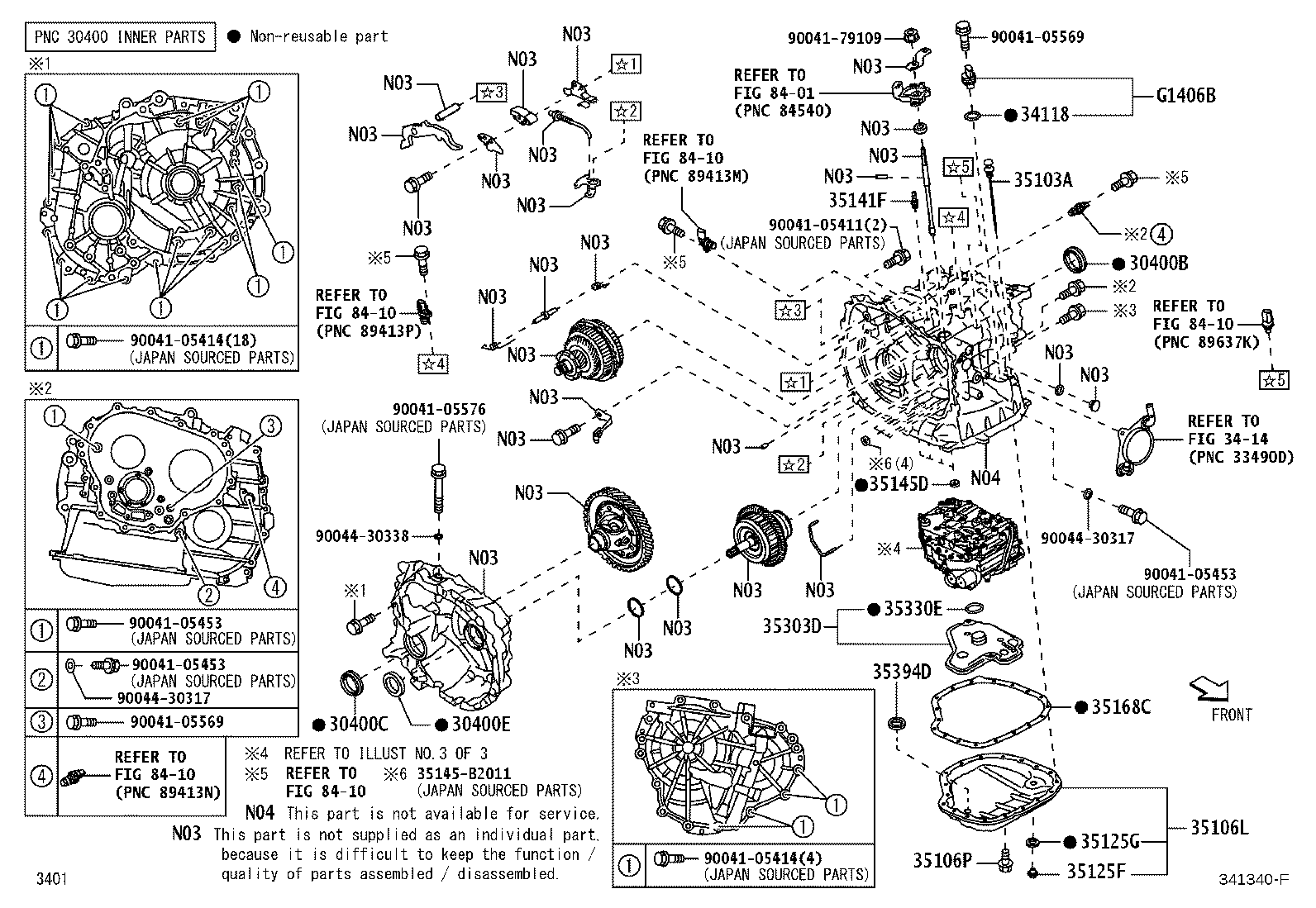

Figure 341365B 341365B 2021-04 → — Figure 341340F 341340F 2021-04 → 2022-11 Figure 341340F 341340F 2021-04 → — Figure 341399E 341399E 2022-11 → — Figure 341399E 341399E 2023-05 → — Figure 341341C 341341C 2021-04 → 2022-11 Figure 341341C 341341C 2021-04 → — Figure 341401A 341401A 2022-11 → — Figure 341401A 341401A 2023-05 → —

Part groups

PNCDescription
30400 Transaxle Assy, Continuously Variable
30400B Seal, Type T Oil, NO.1(FOR CVT)
30400C Seal, Type T Oil, NO.2(FOR CVT)
30400E Seal, Type T Oil(FOR CVT OIL PUMP)
34118 Ring, O
35103A Gage Sub-assy, Transmission Oil Level
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35125F Plug, Overflow(CVT)
35125G Gasket, Overflow Plug(CVT)
35141F Plug, Breather, NO.1(CVT)
35145D Gasket, Transaxle Case
35168C Gasket, Transaxle Oil Pan(CVT)
35198E Bracket, Wire Harness Clamp, NO.1
35198F Bracket, Wire Harness Clamp
35303D Strainer Sub-assy, Oil
35330E Ring, O (FOR OIL STRAINER)
35394D Magnet, Oil Cleaner(CVT)
35410J Body Assy, Transmission Valve
35481C Clamp, Valve Body Wire Harness
82125M Wire, Transmission
G1406B Connector Sub-assy, Trans Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
