Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 4 illustrations

Illustrations

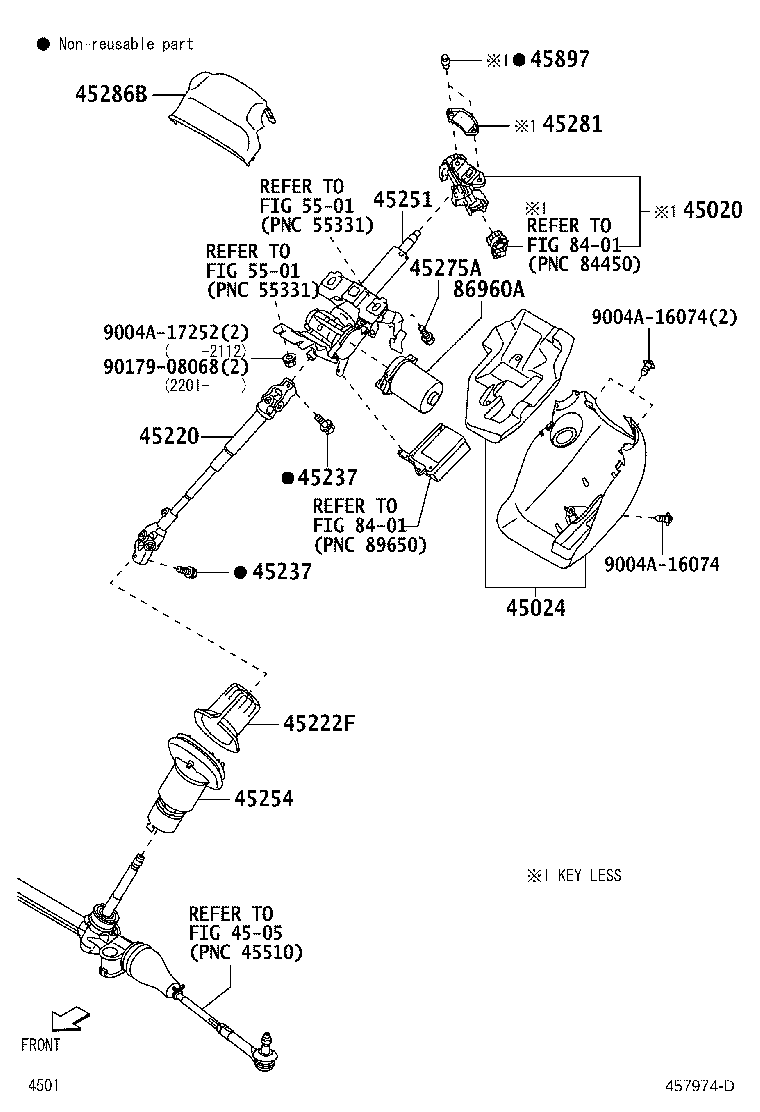

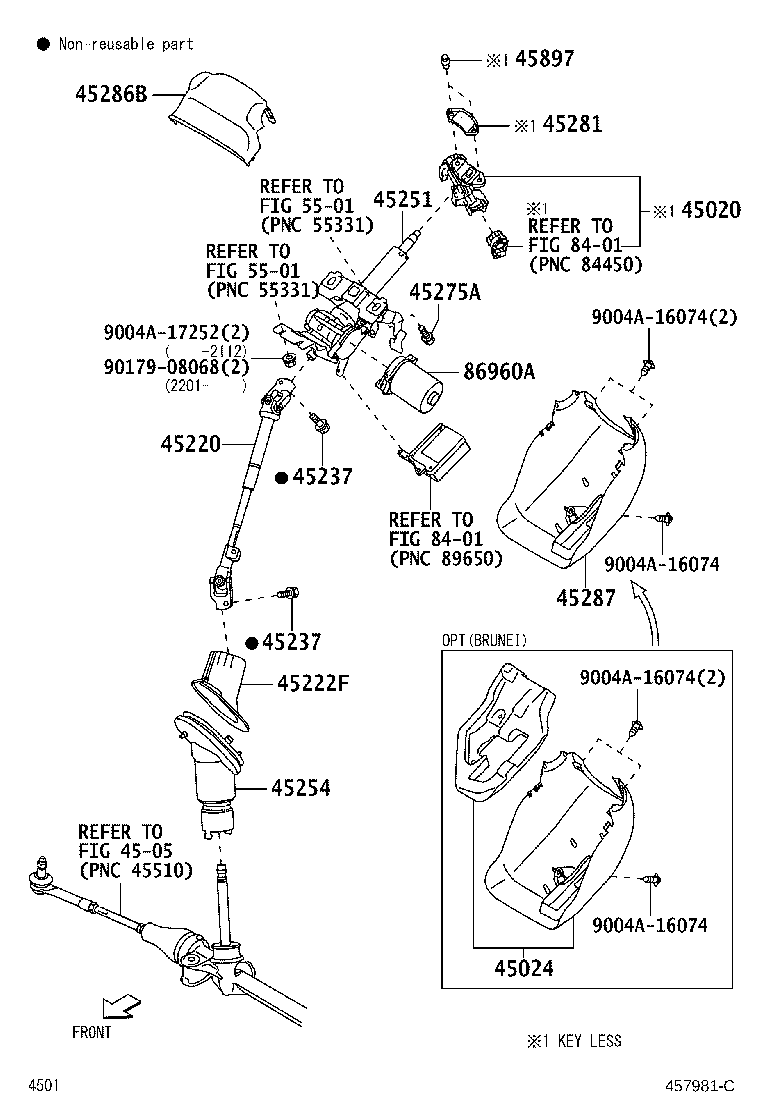

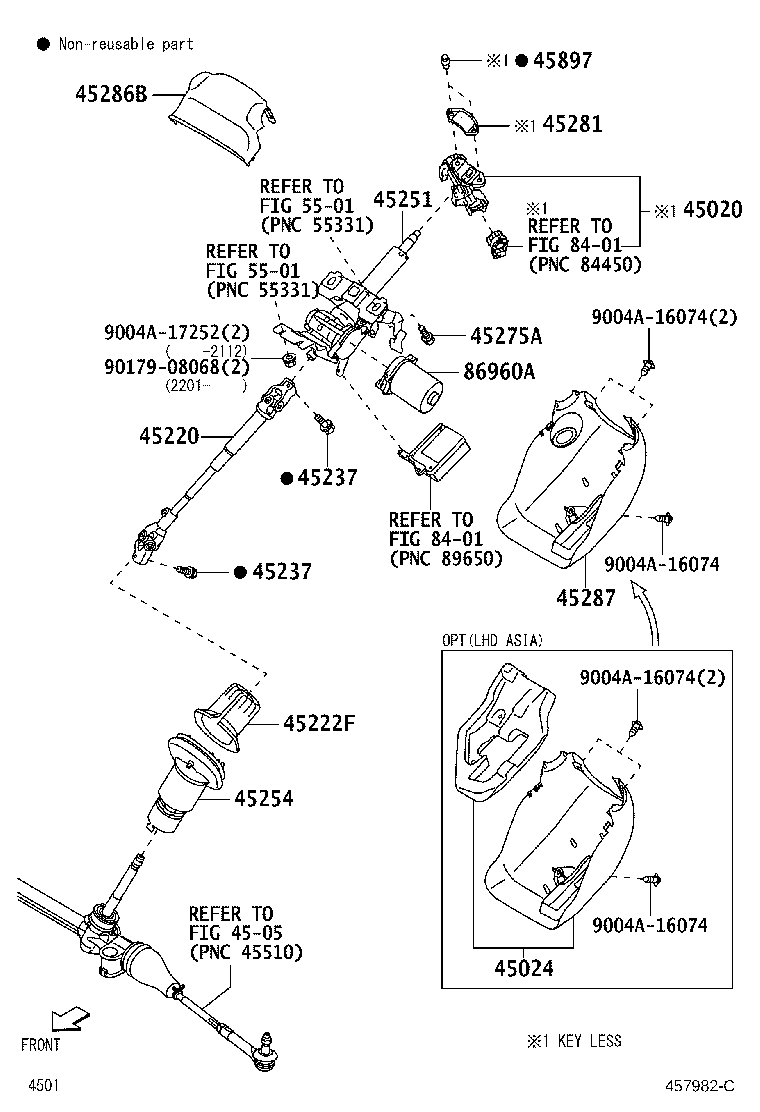

Figure 457973C 457973C 2021-04 → — Figure 457981C 457981C 2021-08 → — Figure 457974D 457974D 2021-08 → — Figure 457982C 457982C 2021-08 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45024 Cover Sub-assy, Steering Column, Lower
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45237 Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT)
45251 Tube Set, Steering Column
45254 Shield, Steering Column Hole
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
