Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 3 illustrations

Illustrations

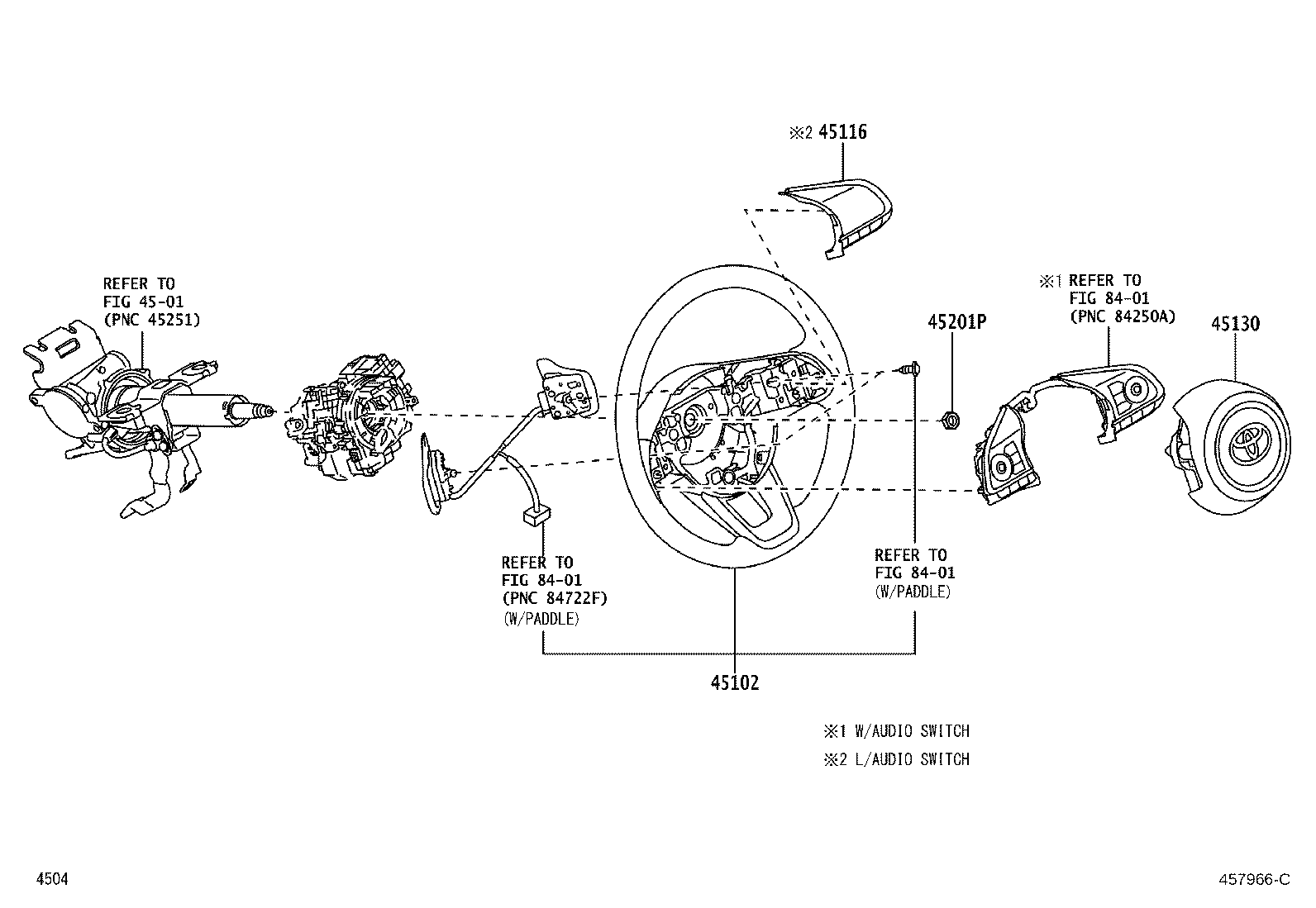

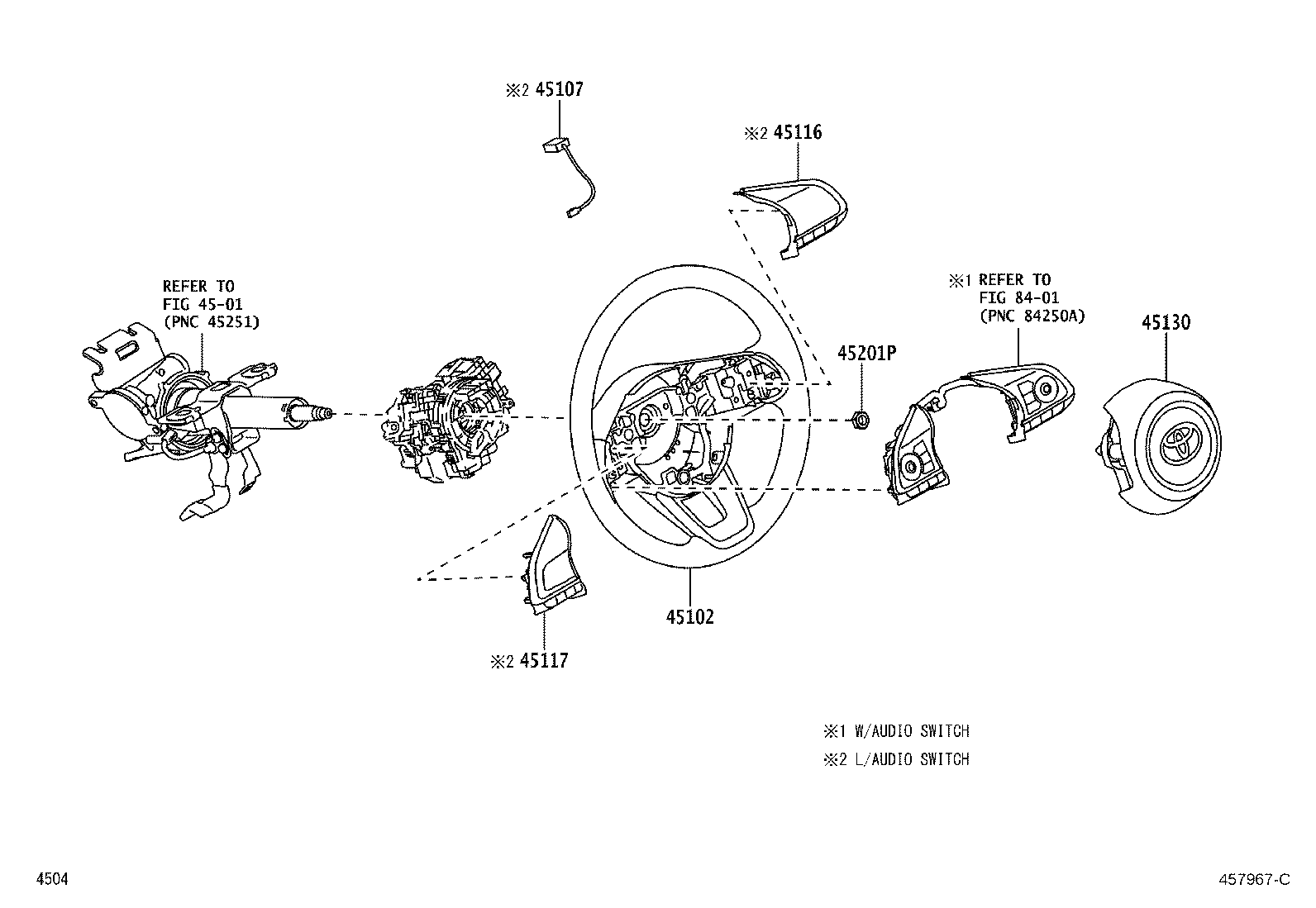

Figure 457965C 457965C 2021-04 → 2021-08 Figure 457966C 457966C 2021-08 → — Figure 457967C 457967C 2021-10 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
