Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

11 part groups · 2 illustrations

Illustrations

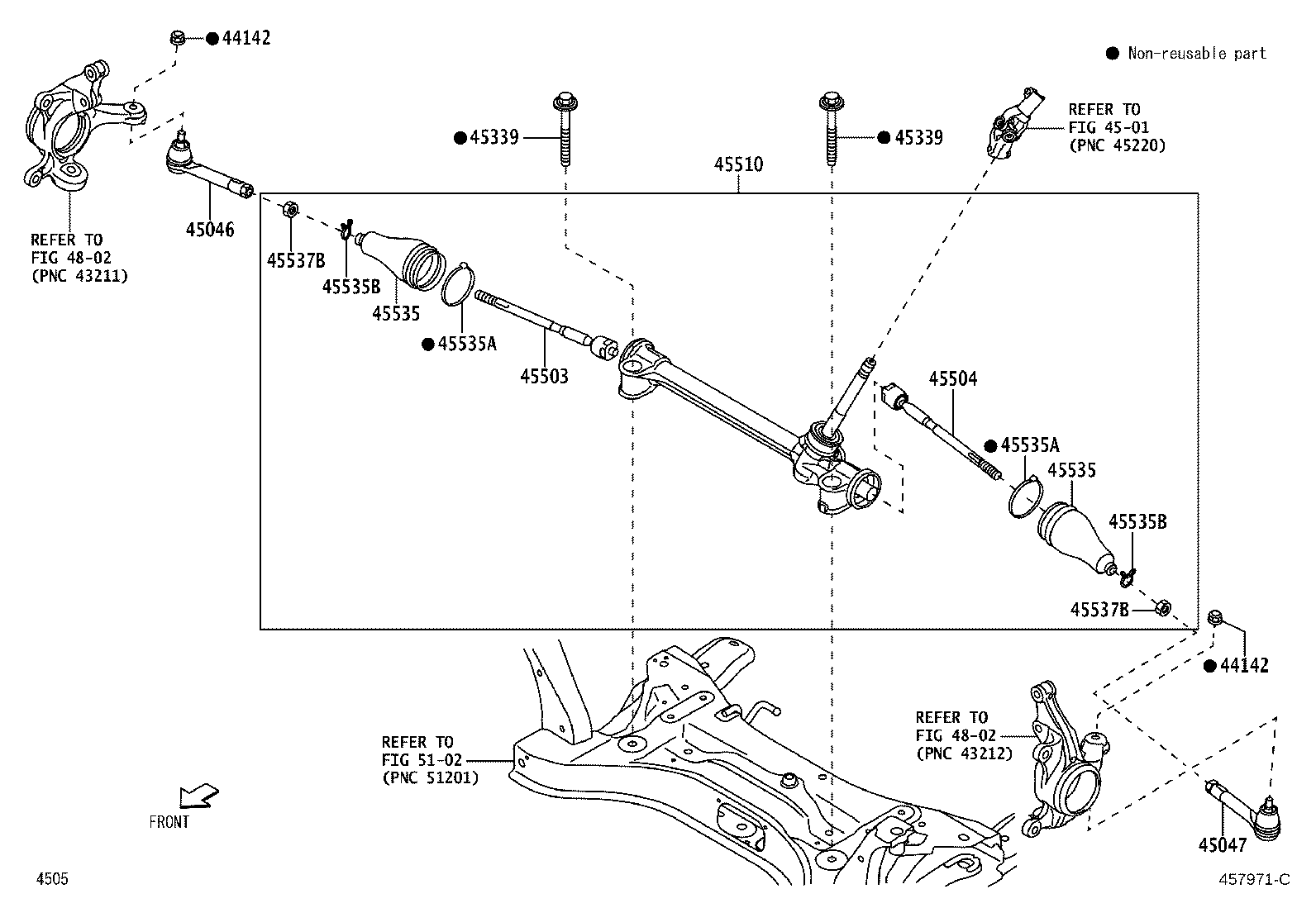

Figure 457970C 457970C 2021-04 → — Figure 457971C 457971C 2021-08 → —

Part groups

PNCDescription
44142 Nut, Lock
45046 End Sub-assy, Tie Rod, RH
45047 End Sub-assy, Tie Rod, LH
45339 Bolt, Steering Gear Housing
45503 End Sub-assy, Steering Rack
45504 End Sub-assy, Steering Rack, NO.2
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
