Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09

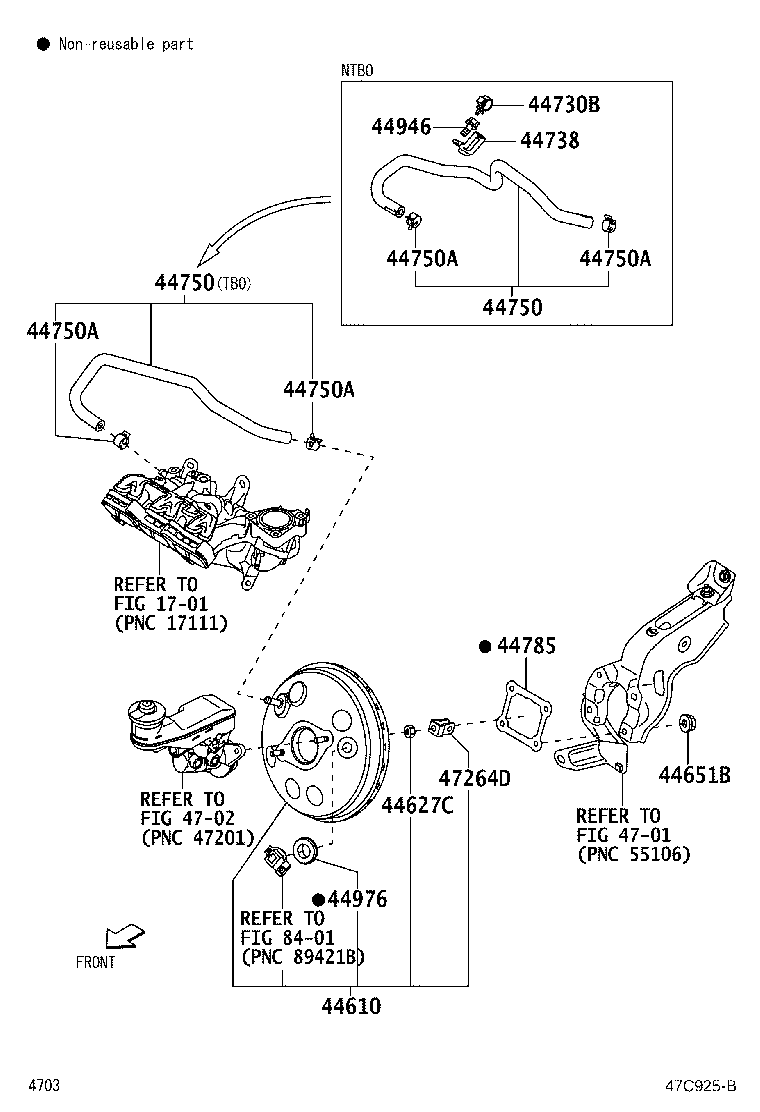

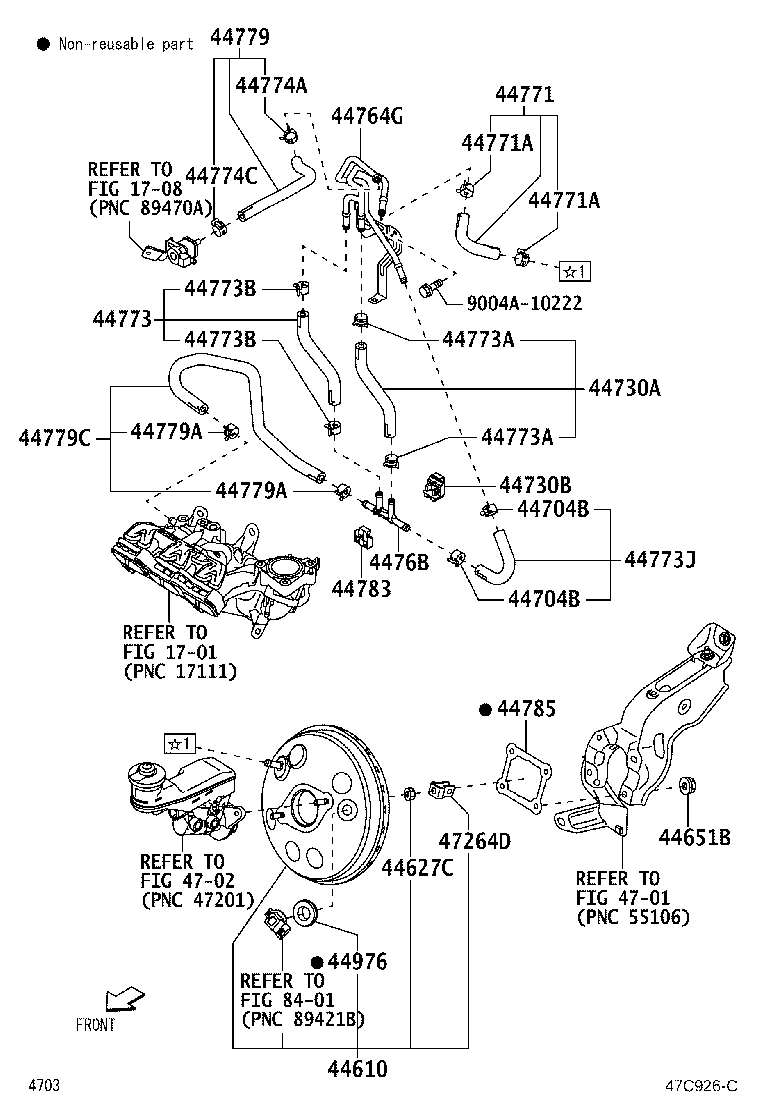

Brake Booster & Vacuum Tube
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44627C | Nut, Booster Sleeve Cylinder |
| 44651B | Nut, Booster |
| 44704B | Clip(FOR HOSE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730B | Clamp, Vacuum Hose |
| 44738 | Bracket, Hose Clamp Brakcet |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44764G | Tube, Connector TO Brake Booster |
| 4476B | Ejector, Brake Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44773B | Clip, NO.2(FOR VACUUM HOSE, NO.2) |
| 44773J | Hose, Vacuum, NO.3 |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774C | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44779 | Hose, Union TO Connector |
| 44779A | Clip(FOR UNION TO CONNECTOR HOSE) |
| 44779C | Hose, Connector Tube TO Solenoid |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 44946 | Bolt, Booster |
| 44976 | Seal, Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
