Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09
Brake Tube & Clamp
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

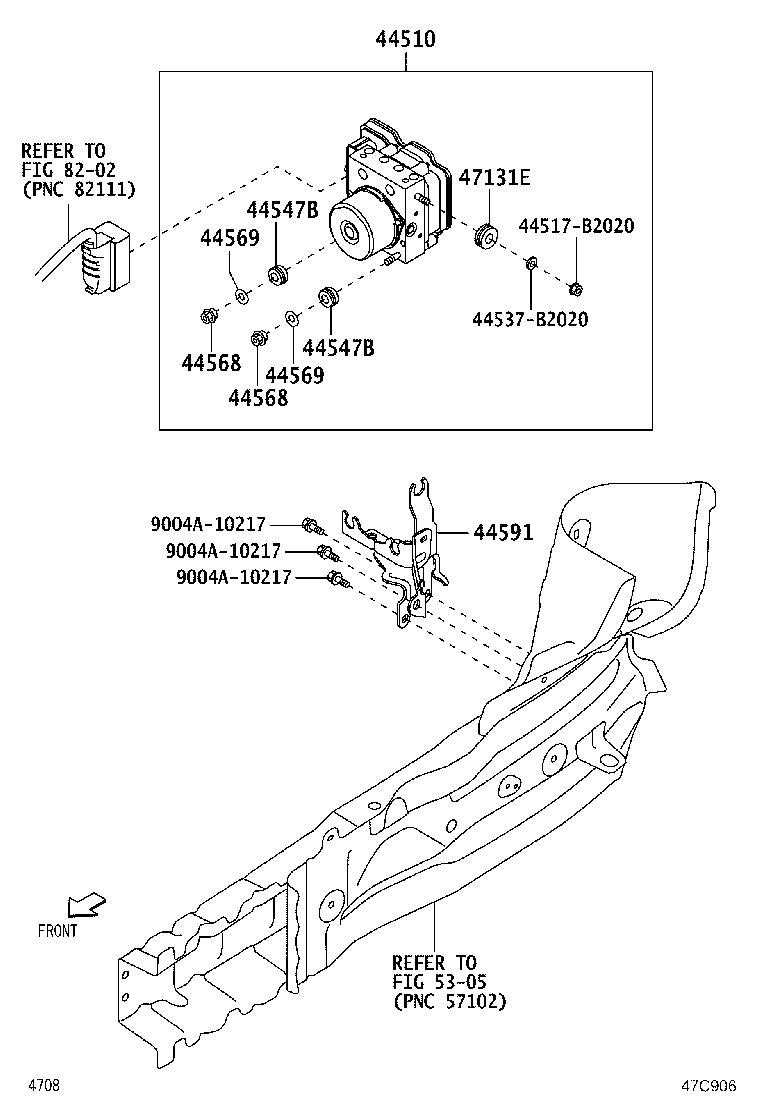

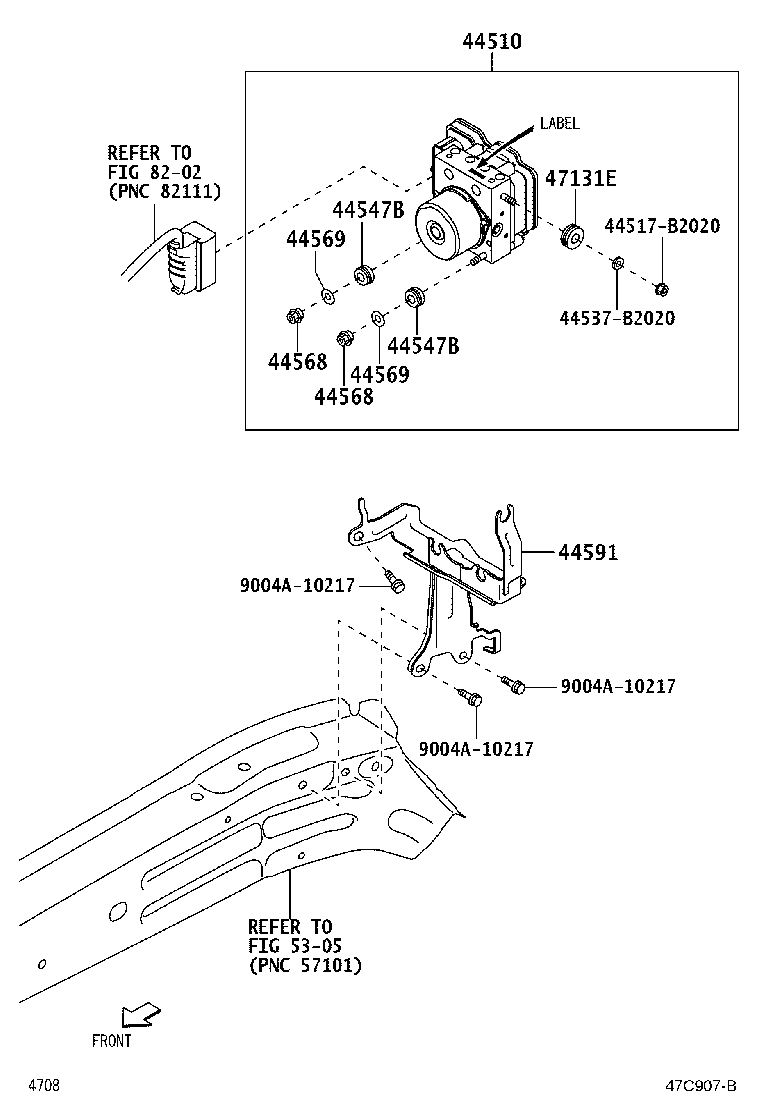

| 44510 | Actuator Assy, Brake |
| 44547B | Cushion, Brake Actuator Bracket |
| 44568 | Nut, Brake Actuator |
| 44569 | Washer, Brake Actuator |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 47131E | Cushion, Brake Actuator Bracket, NO.2 |
| 47311 | Tube, Front Brake, NO.1 |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371G | Clamp, Brake Tube, NO.11 |
| 47371H | Clamp, Brake Tube, NO.12 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
