Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 6 illustrations

Illustrations

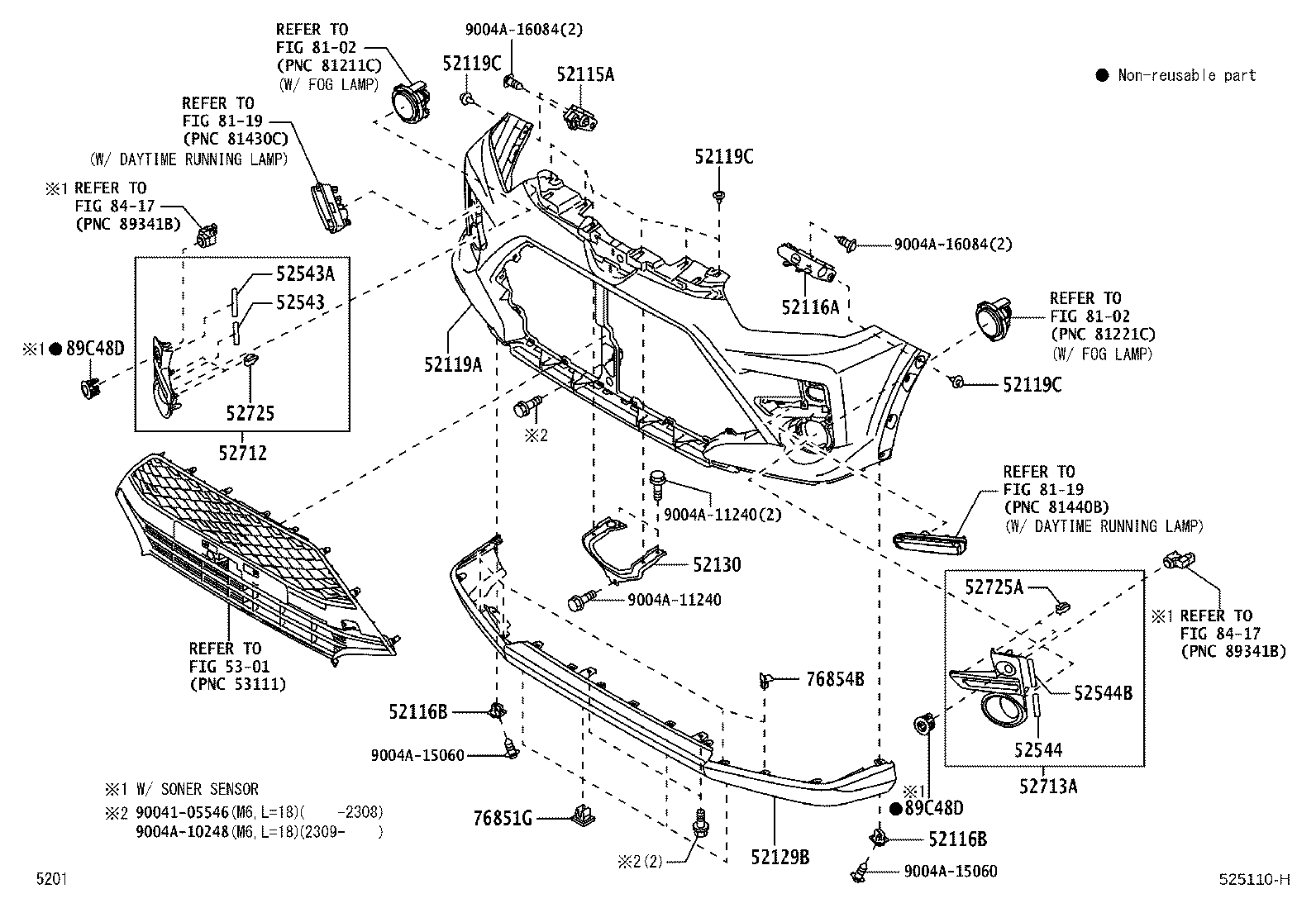

Figure 525086H 525086H 2021-04 → 2026-06 Figure 525086H 525086H 2021-04 → 2026-07 Figure 525086H 525086H 2021-04 → 2026-08 Figure 525086H 525086H 2021-04 → — Figure 525110H 525110H 2021-08 → 2026-07 Figure 525110H 525110H 2021-08 → 2026-08

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52129B Cover, Front Bumper, Lower
52130 Bracket Assy, Front Bumper Side Mounting, RH
52543 Seal, Front Bumper Side, RH
52543A Seal, Front Bumper Side
52544 Seal, Front Bumper Side, LH
52544B Seal, Front Bumper Side, LH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52725 Retainer, Front Bumper Side Moulding
52725A Clip, Front Bumper Side Moulding Retainer
76851G Grommet, Screw, NO.1
76854B Retainer, Front Spoiler,NO.2
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
