Rear Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

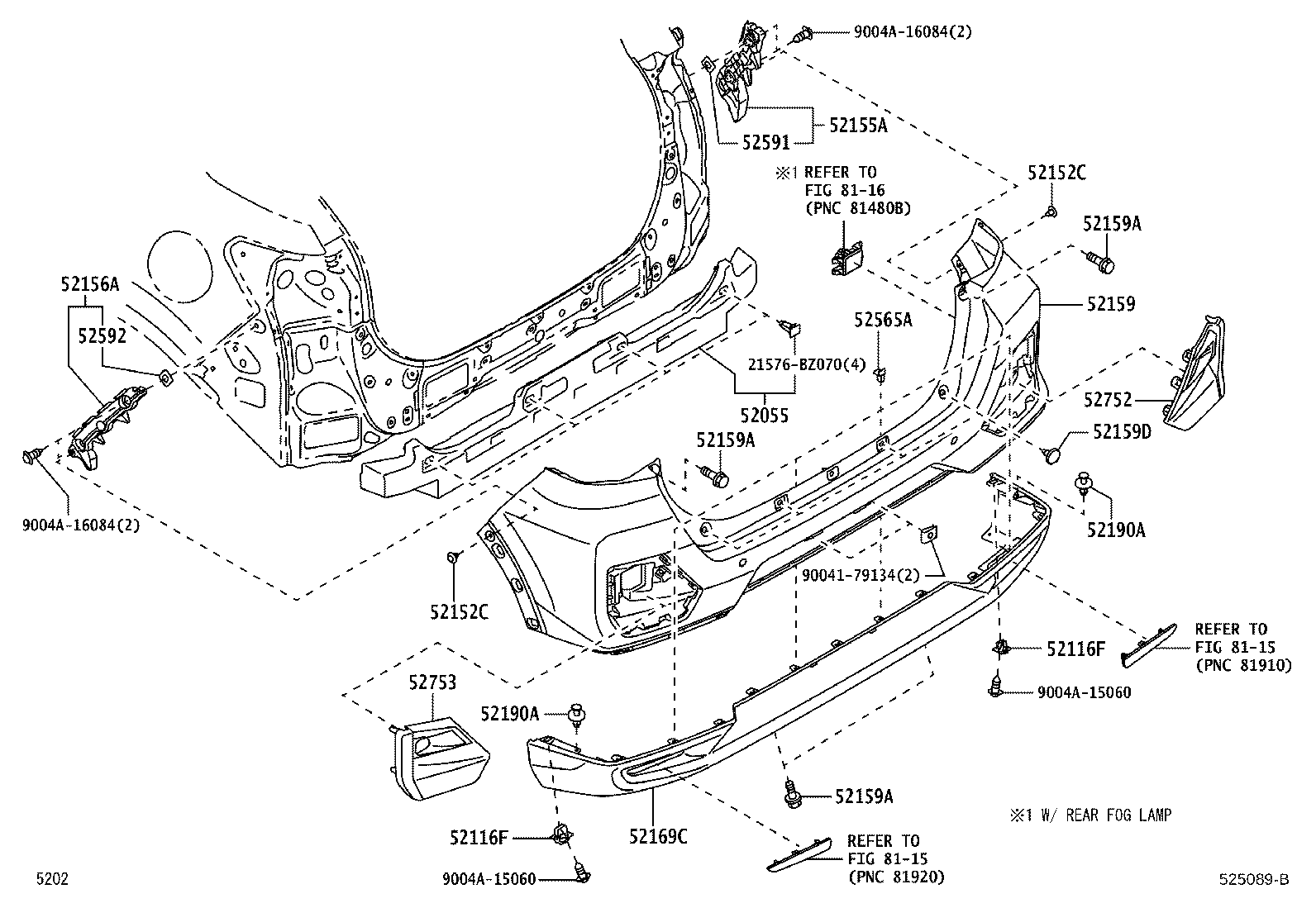

Figure 525088C 525088C 2021-04 → 2026-06 Figure 525088C 525088C 2021-04 → — Figure 525089B 525089B 2021-10 → —

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52116F Retainer, Rear Bumper
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52159D Clip, Rear Bumper Cover
52169C Cover, Rear Bumper, Lower
52190A Clip
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
