Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 3 illustrations

Illustrations

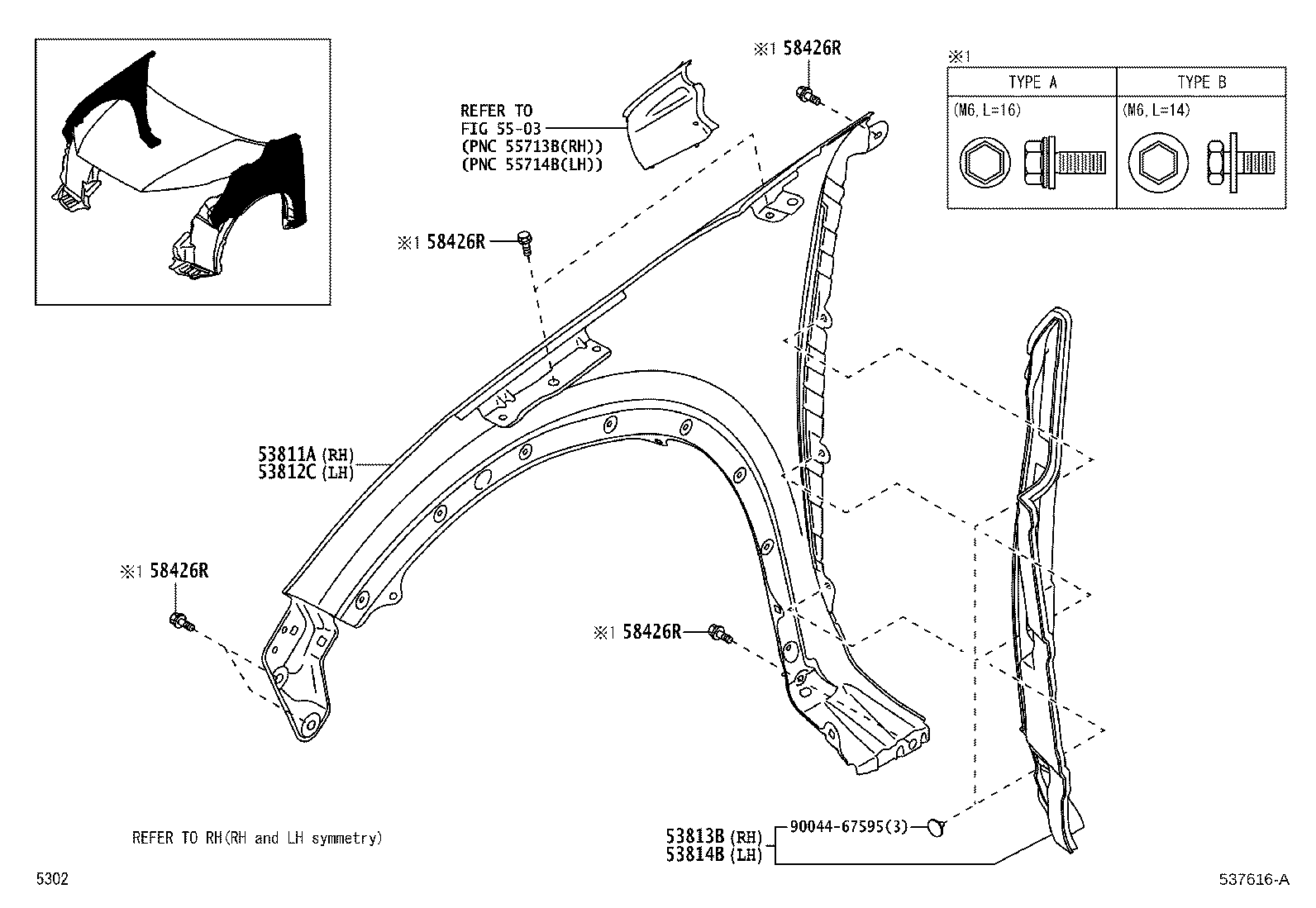

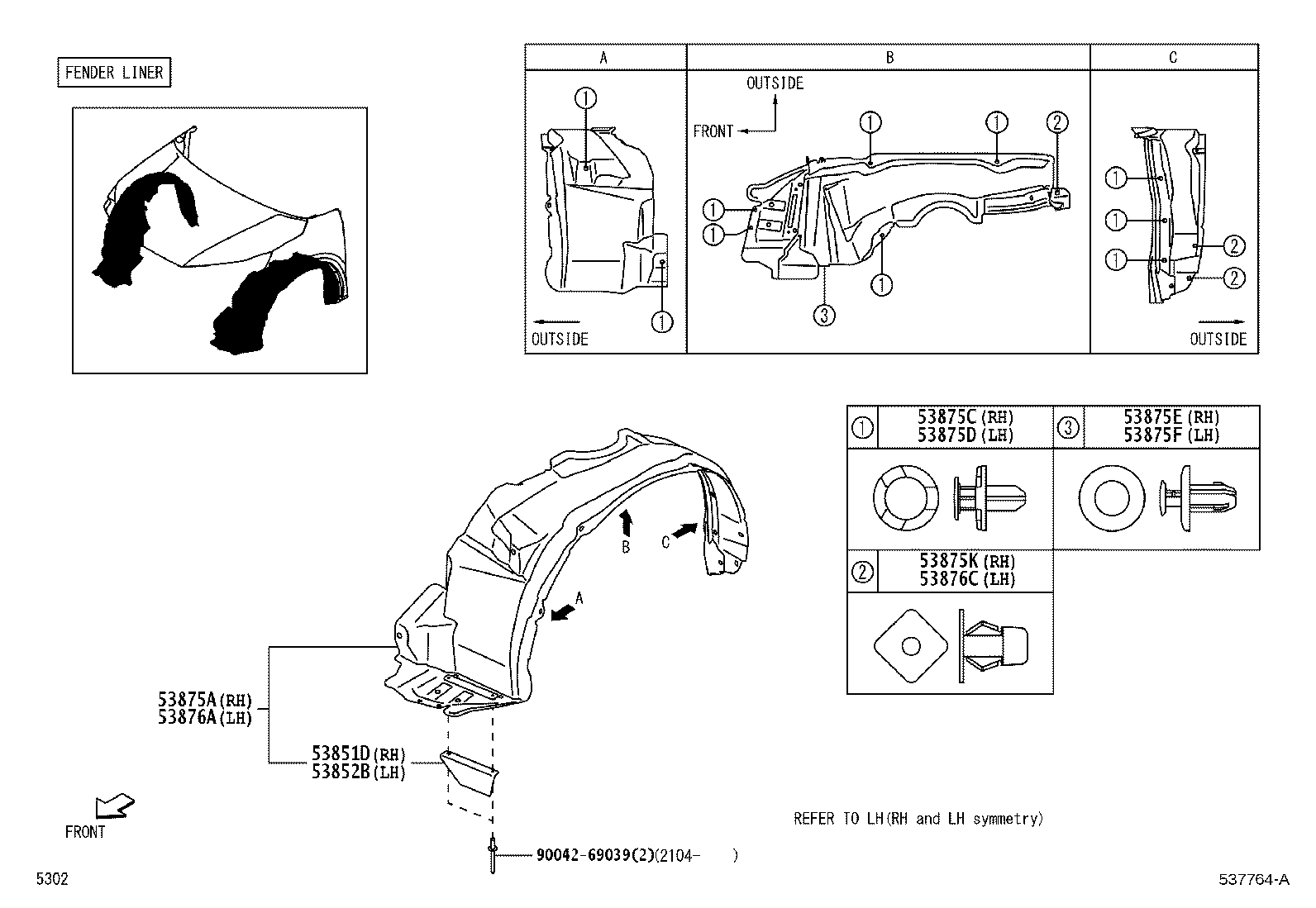

Figure 538636 538636 2021-04 → — Figure 537764A 537764A 2021-04 → — Figure 537616A 537616A 2021-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53393B Protector, Hood, Front
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875E Clip, Front Fender Liner, NO.3
53875F Clip, Front Fender Liner, NO.4
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
58426R Bolt(FOR FRONT FENDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
