Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 2 illustrations

Illustrations

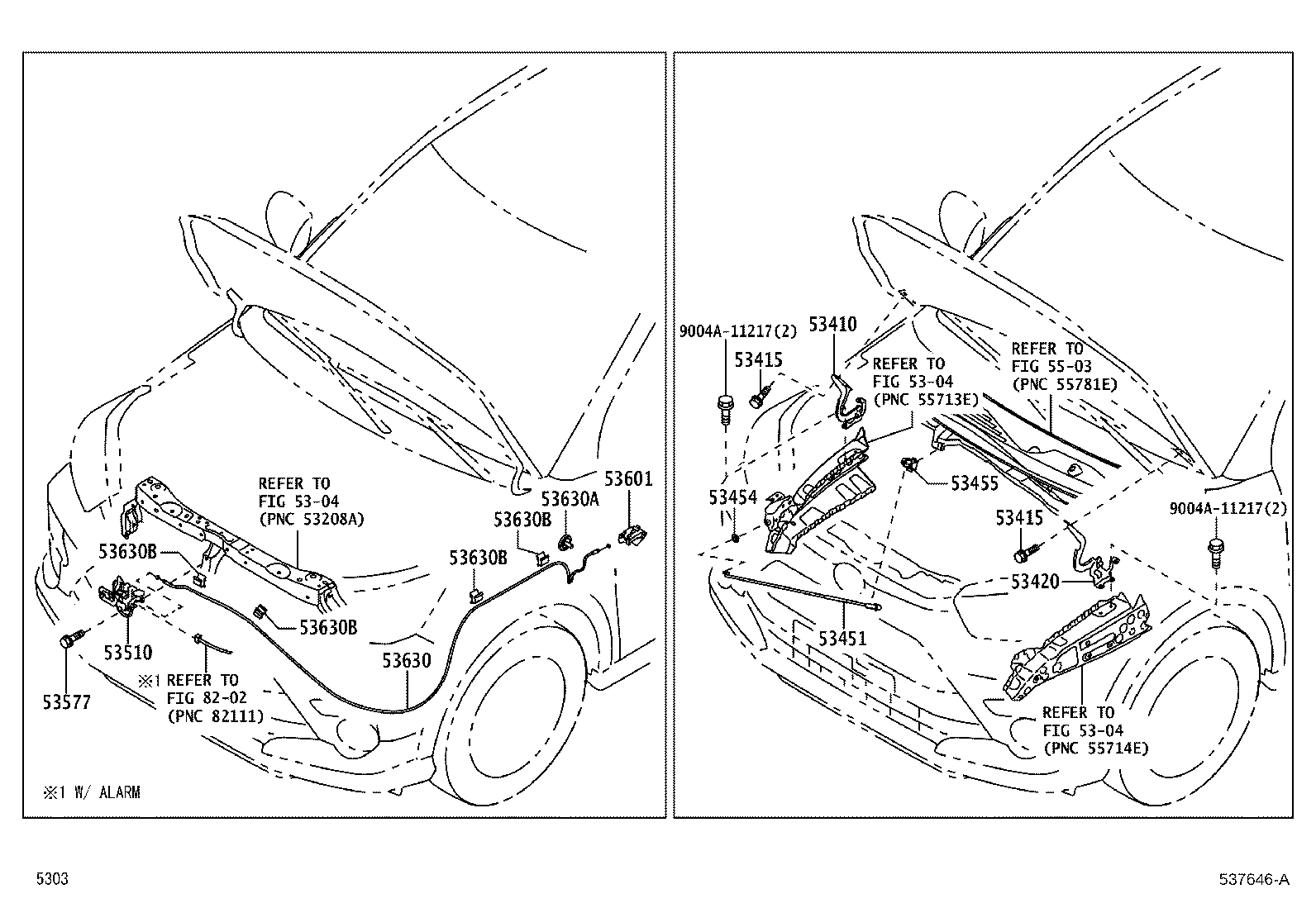

Figure 537645A 537645A 2021-04 → — Figure 537646A 537646A 2021-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53454 Clip, Hood Support Rod
53455 Clamp, Hood Support Rod
53510 Lock Assy, Hood
53577 Bolt, Hood Lock
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630A Grommet(FOR HOOD LOCK CONTROL CABLE)
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
