Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09
Mat & Carpet
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

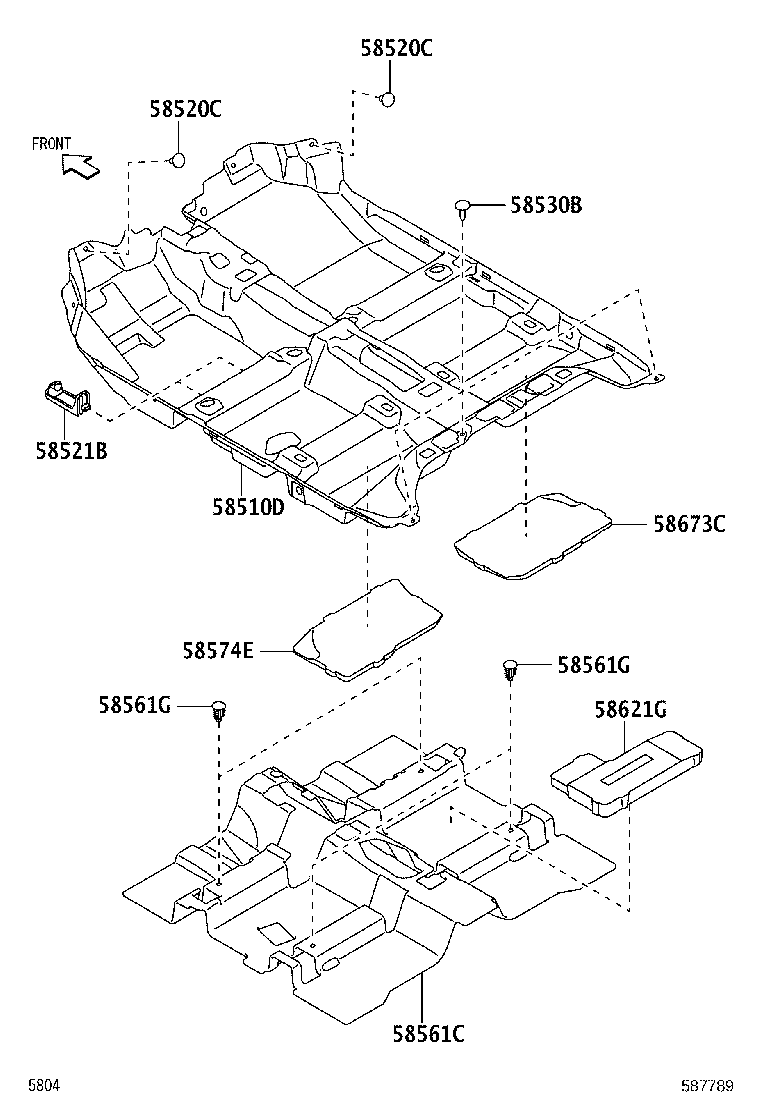

| 58510D | Carpet Assy, Floor, Front |

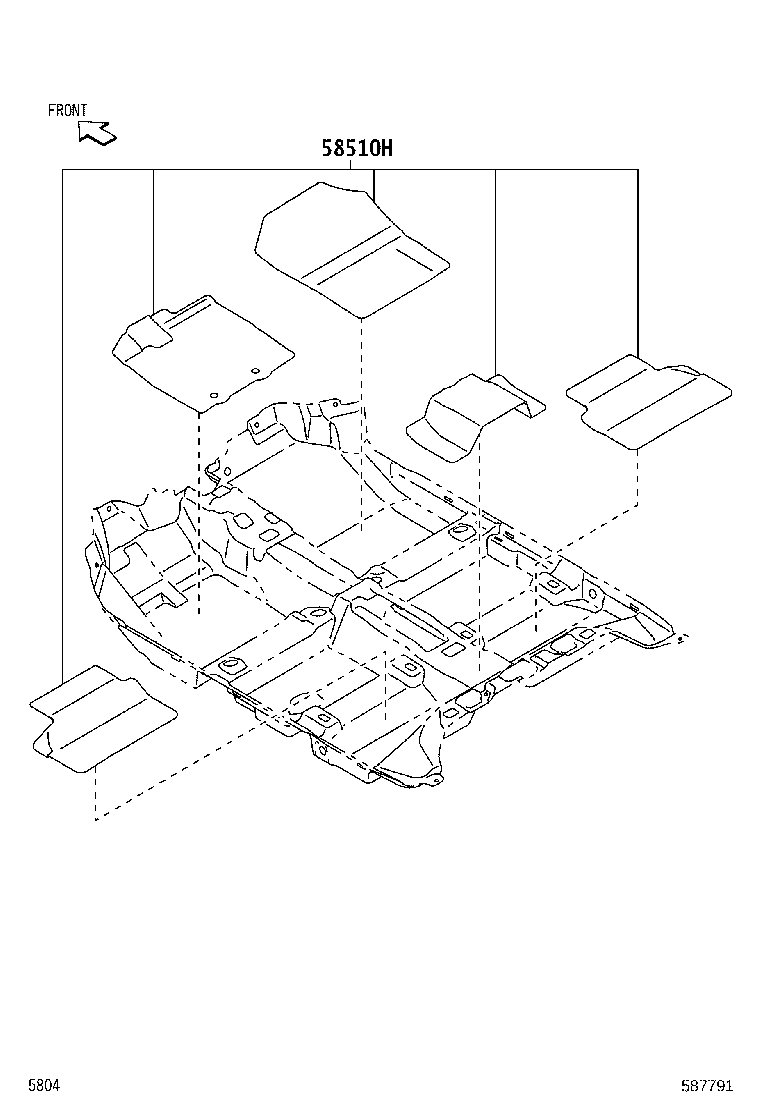

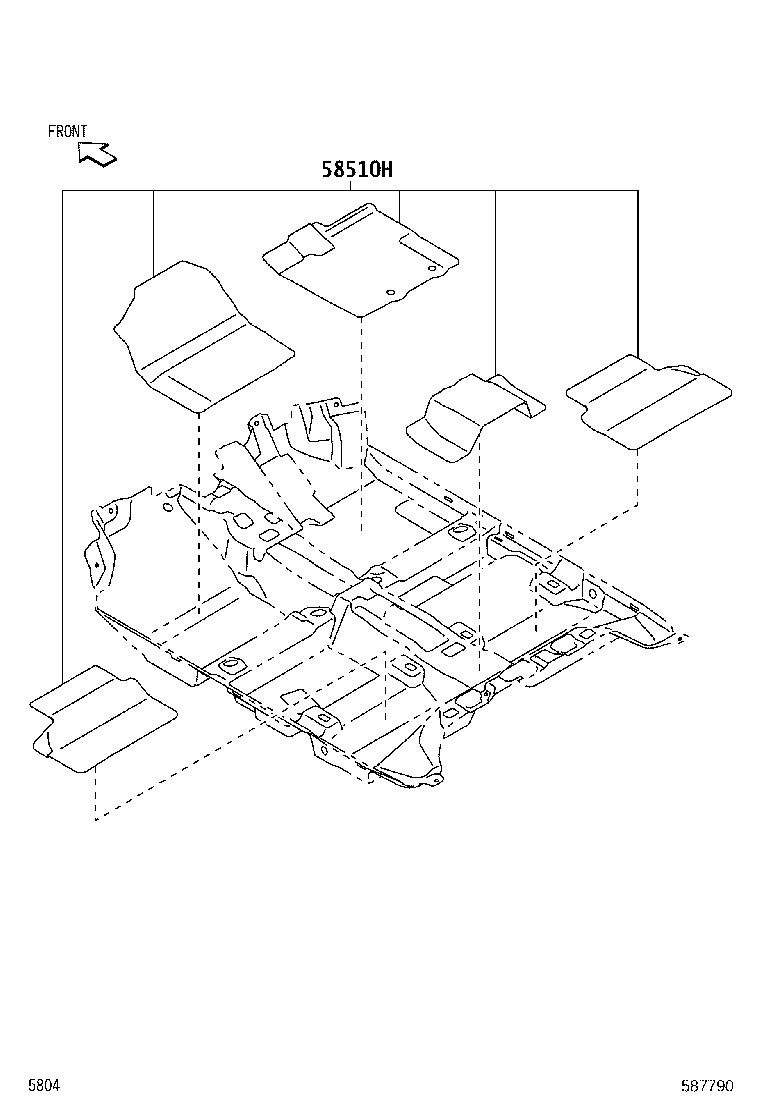

| 58510H | Mat Assy, Floor |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58561G | Clip(FOR FRONT FLOOR SILENCER) |
| 58574E | Pad, Rear Floor Silencer, NO.1 |
| 58621G | Pad, Front Floor Silencer, RH |
| 58673C | Pad, Rear Floor Silencer, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
