Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 7 illustrations

Illustrations

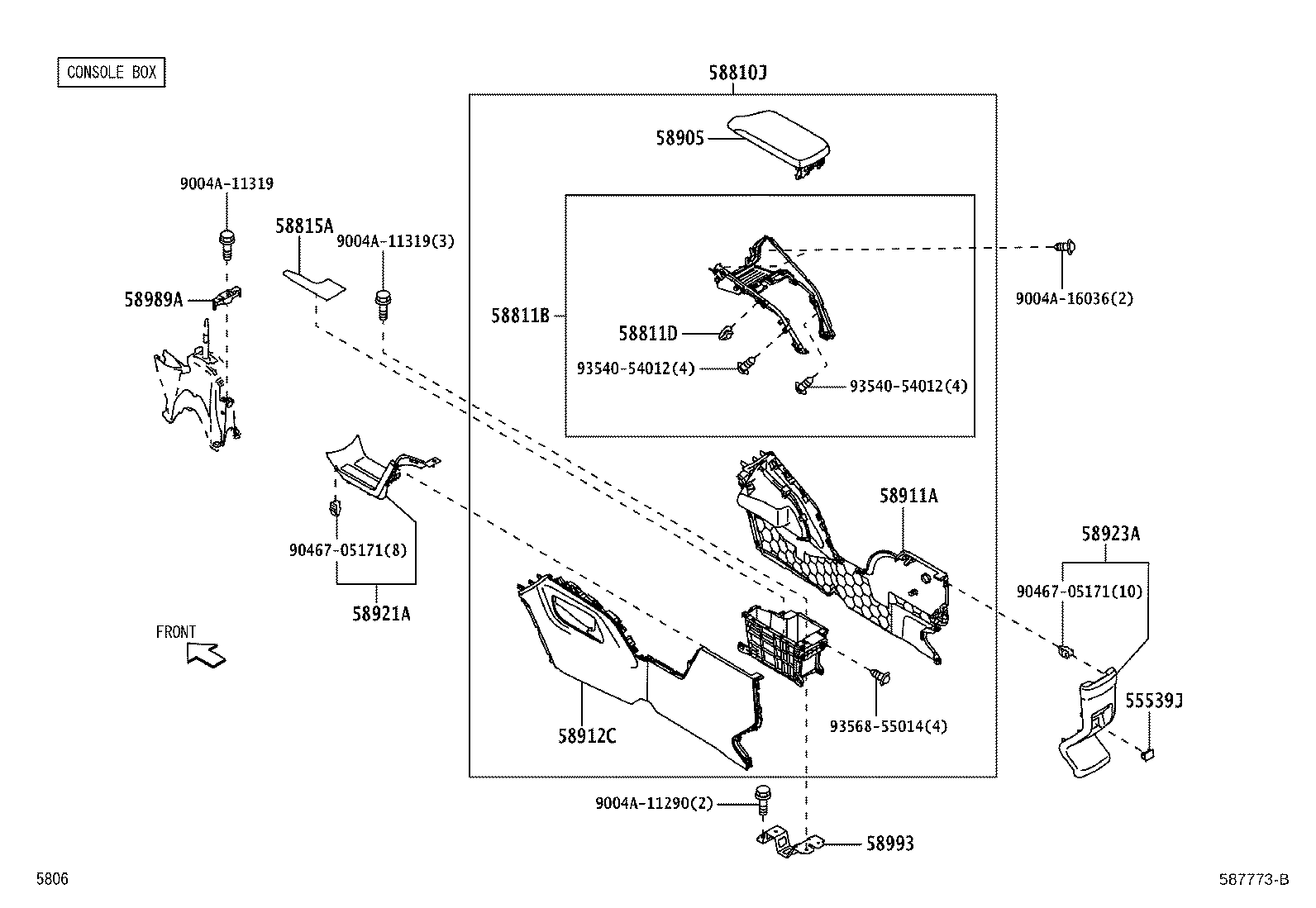

Figure 587771B 587771B 2021-04 → — Figure 587772B 587772B 2021-04 → — Figure 587773B 587773B 2021-04 → 2026-06 Figure 587773B 587773B 2021-04 → 2026-07 Figure 587773B 587773B 2021-04 → 2026-08 Figure 587773B 587773B 2021-04 → — Figure 587773B 587773B 2021-04 → —

Part groups

PNCDescription
55539J Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58840K Cover Assy, Shifting Hole
58905 Door Sub-assy, Console Compartment
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58921A Panel, Rear Console, Upper
58923A Panel, Console Rear End
58989A Retainer, Console Box
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
