Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

10 part groups · 5 illustrations

Illustrations

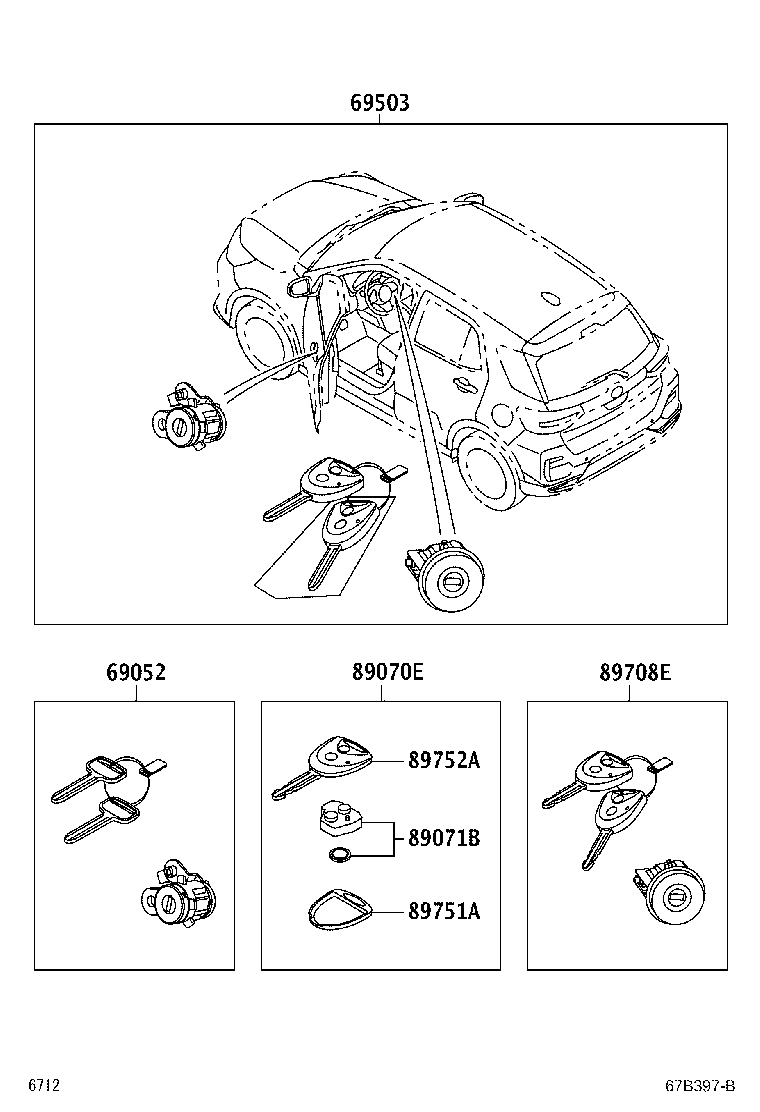

Figure 67B396B 67B396B 2021-08 → 2026-07 Figure 67B396B 67B396B 2021-08 → — Figure 67B397B 67B397B 2021-08 → — Figure 67B398B 67B398B 2021-04 → — Figure 67B399B 67B399B 2021-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69503 Cylinder Set, Lock
69503C Key, Sub
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708E Cylinder Set, Lock W/Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
