Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

18 part groups · 8 illustrations

Illustrations

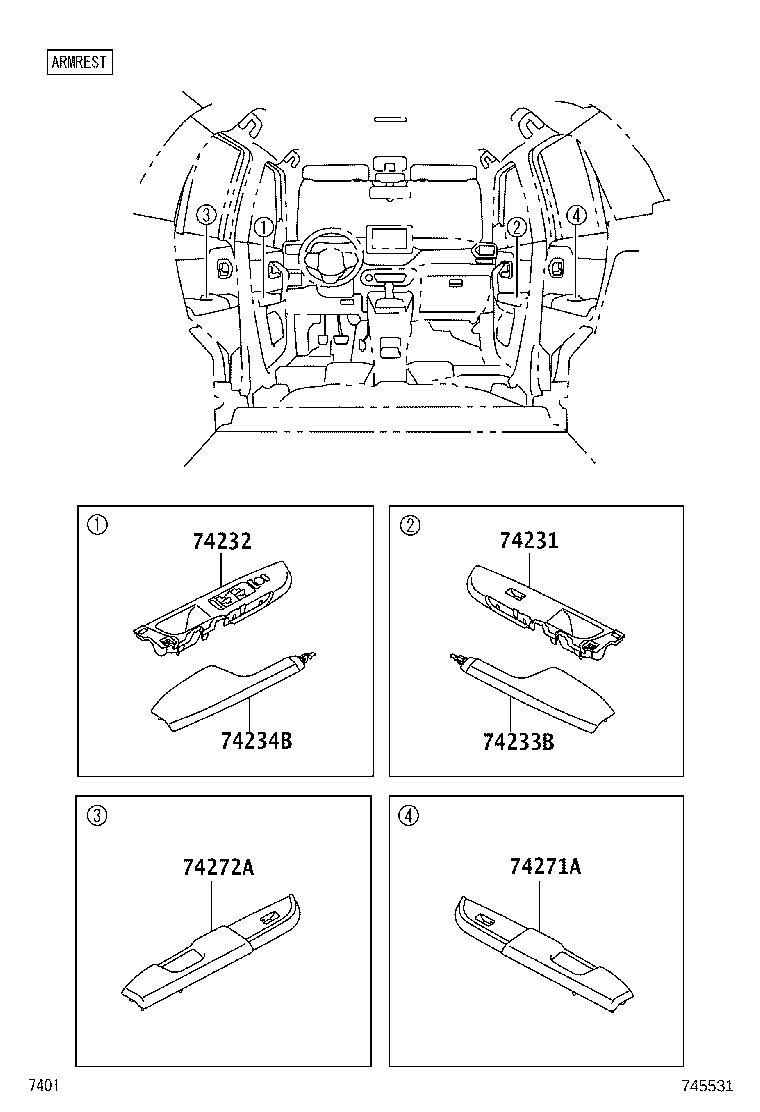

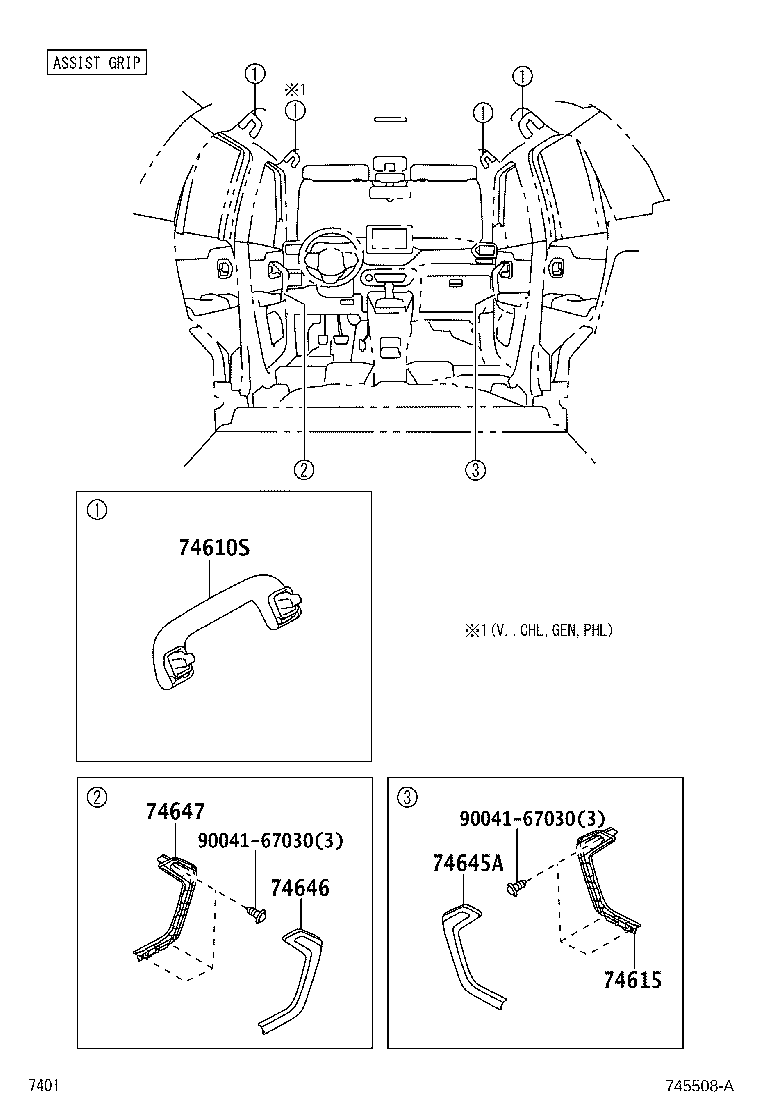

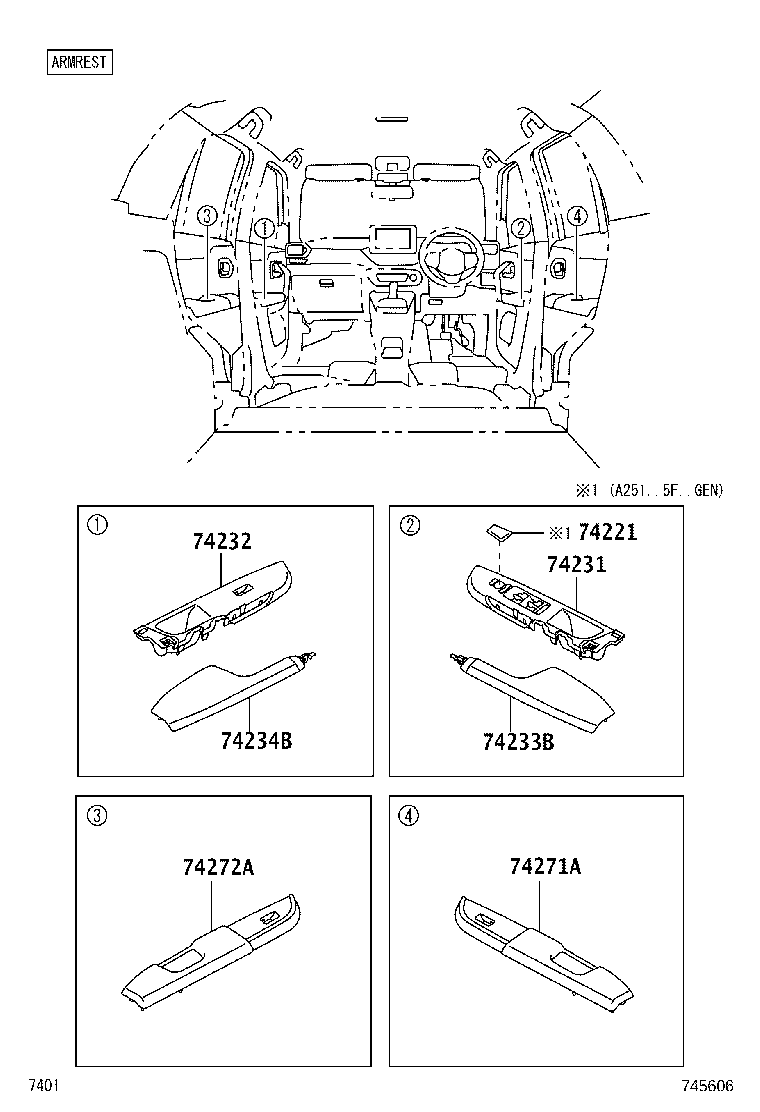

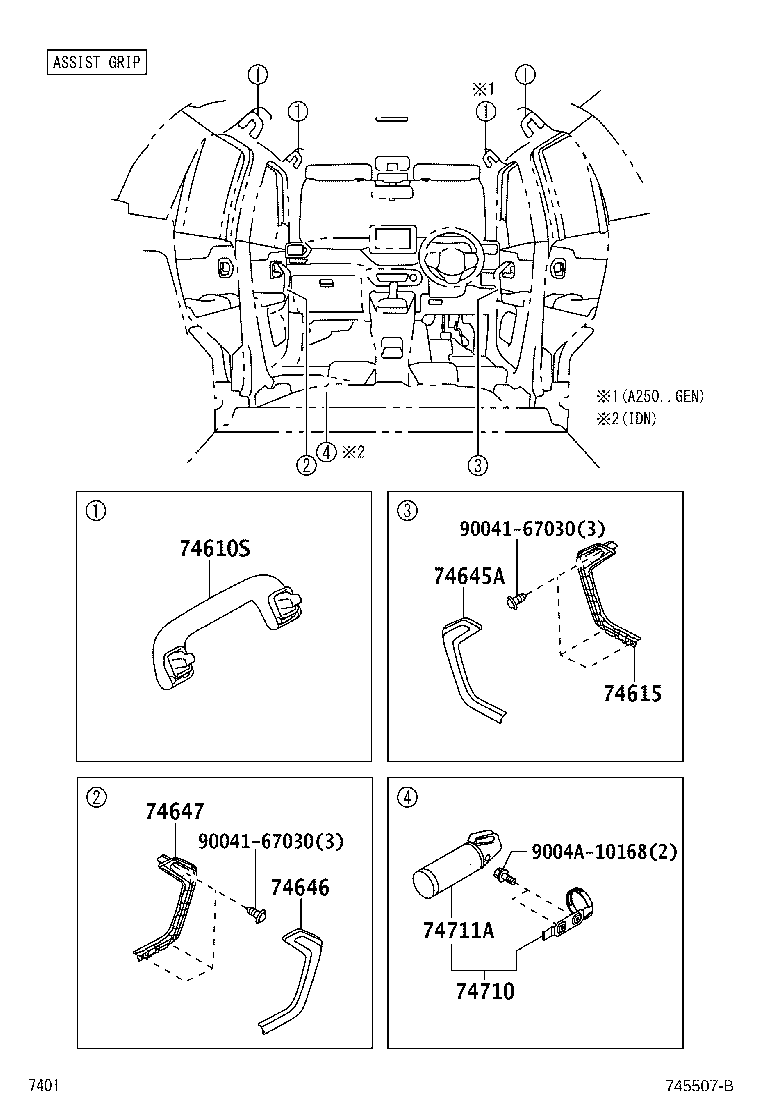

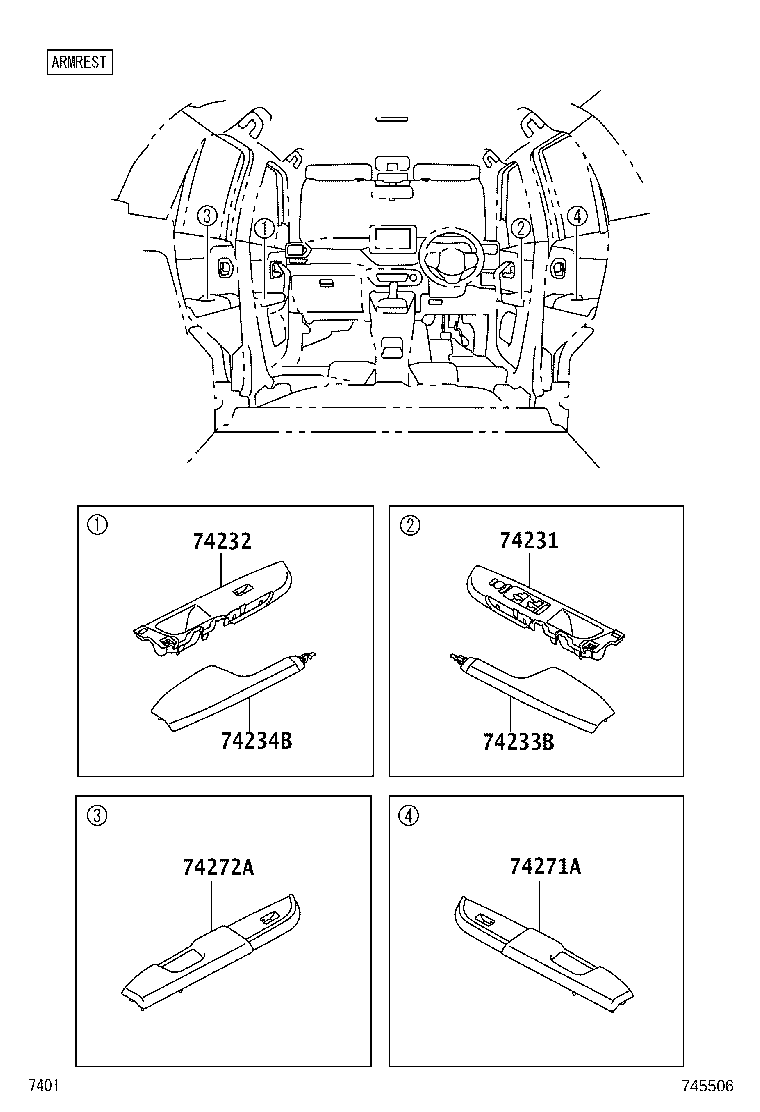

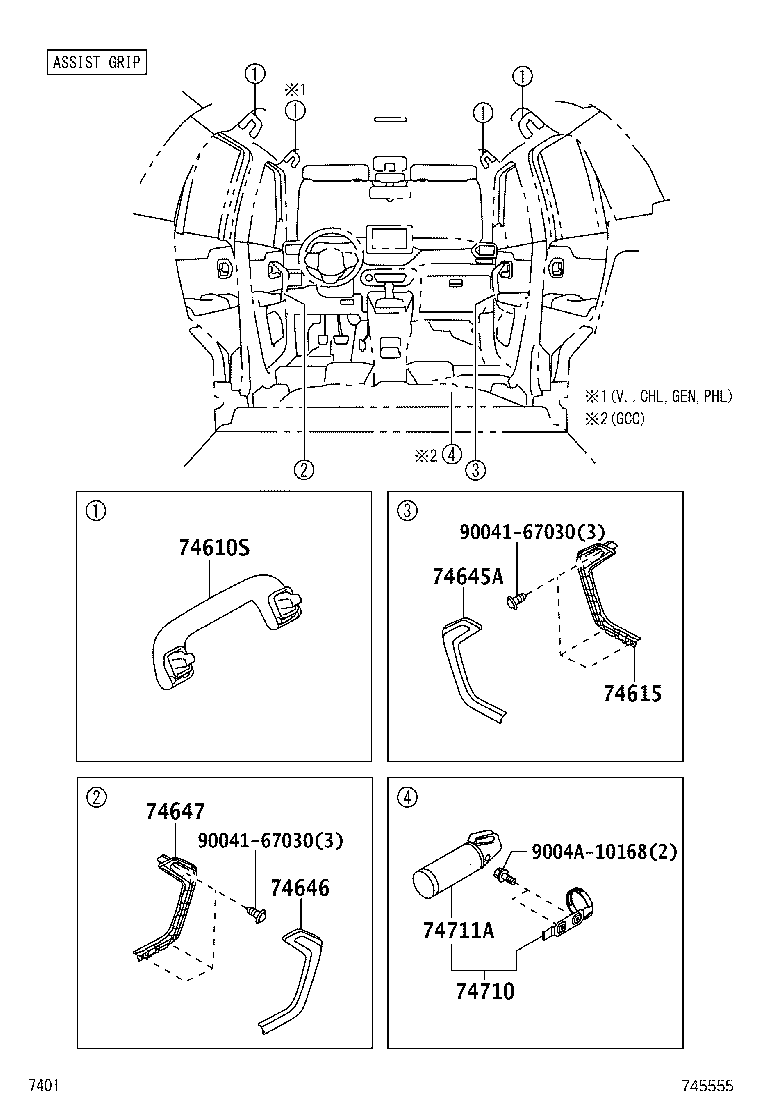

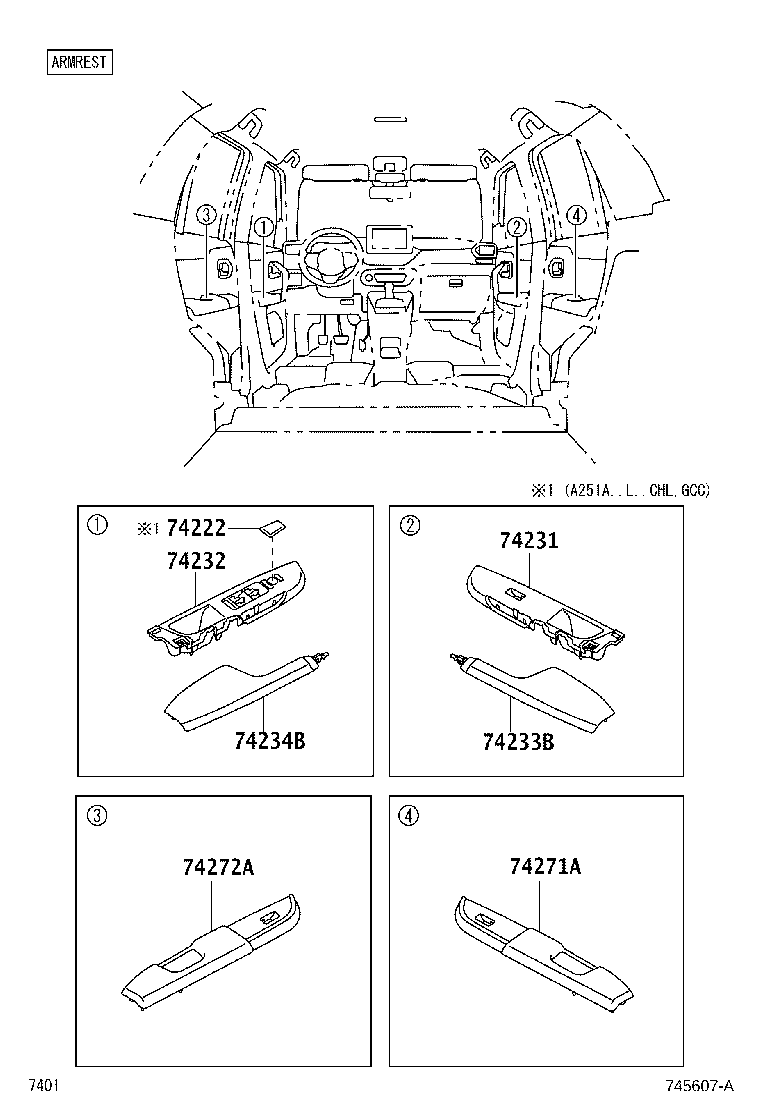

Figure 745505A 745505A 2021-04 → — Figure 745506 745506 2021-04 → 2021-08 Figure 745606 745606 2021-08 → 2026-07 Figure 745531 745531 2021-08 → 2021-10 Figure 745607A 745607A 2021-10 → — Figure 745507B 745507B 2021-04 → — Figure 745508A 745508A 2021-08 → 2021-10 Figure 745555 745555 2021-10 → —

Part groups

PNCDescription
74221 Cover, Door Armrest, RH
74222 Cover, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist
74615 Base, Assist Grip
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
74647 Base, Door Assist Grip
74710 Extinguisher Assy
74711A Extinguisher
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
