Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09
Headlamp
15 part groups · 5 illustrations

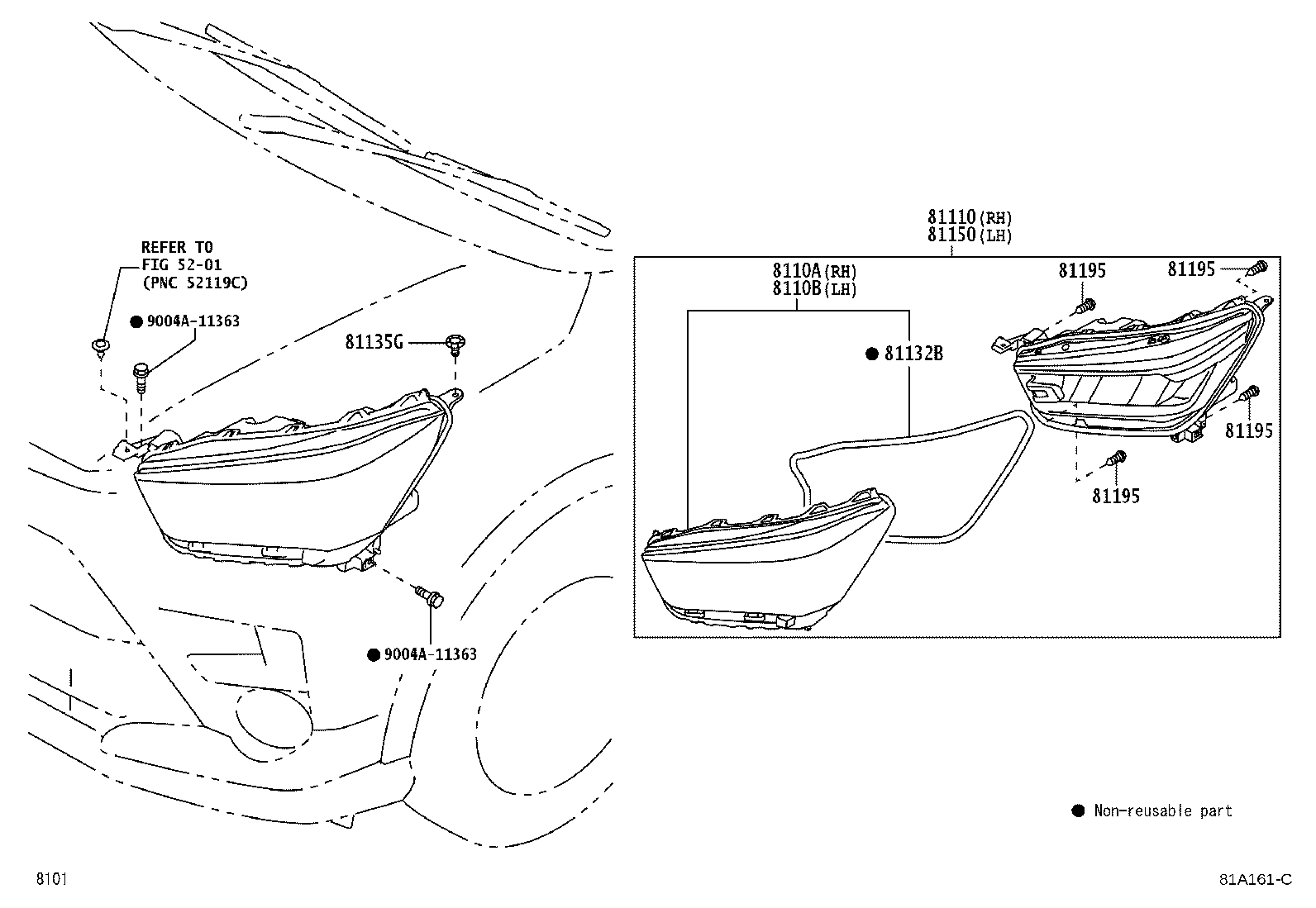

Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81135G | Clip |
| 81150 | Headlamp Assy, LH |
| 81171A | Unit, Headlamp, LH |
| 81195 | Screw, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
