Fog Lamp

5 part groups · 5 illustrations

Illustrations

Figure 81A165

81A165 2021-04 → —

Figure 81A165

81A165 2022-08 → —

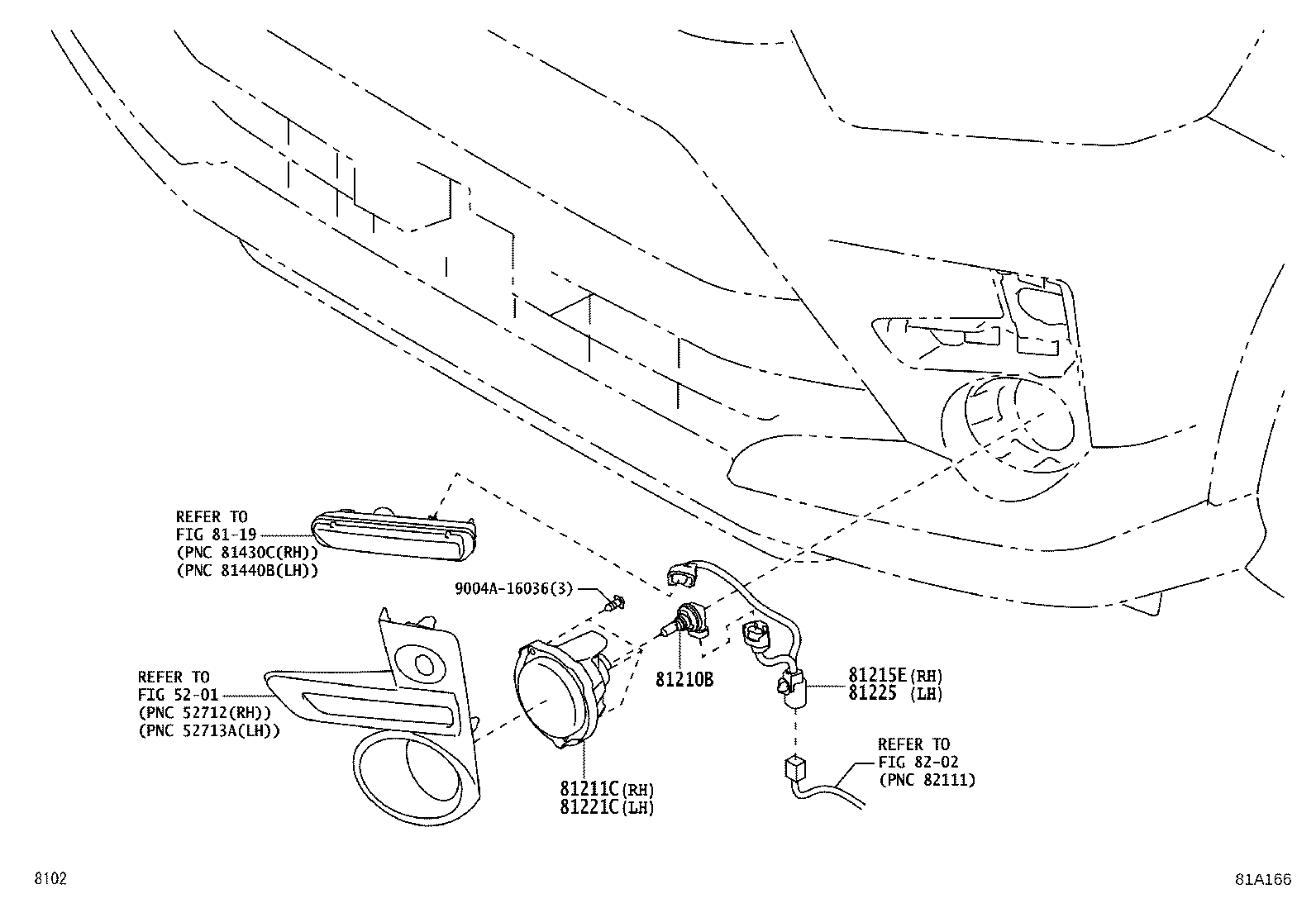

Figure 81A166

81A166 2021-04 → —

Figure 81A166

81A166 2022-08 → —

Figure 81A166

81A166 2024-07 → —

Part groups

PNC	Description
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81215E	Cord, Fog Lamp
81221C	Lamp Unit, Fog Lamp, LH
81225	Cord, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
