Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Daytime Running Lamp OR Illumination Lamp

4 part groups · 3 illustrations

Illustrations

Figure 81A172A

81A172A 2021-04 → —

Figure 81A172A

81A172A 2022-08 → —

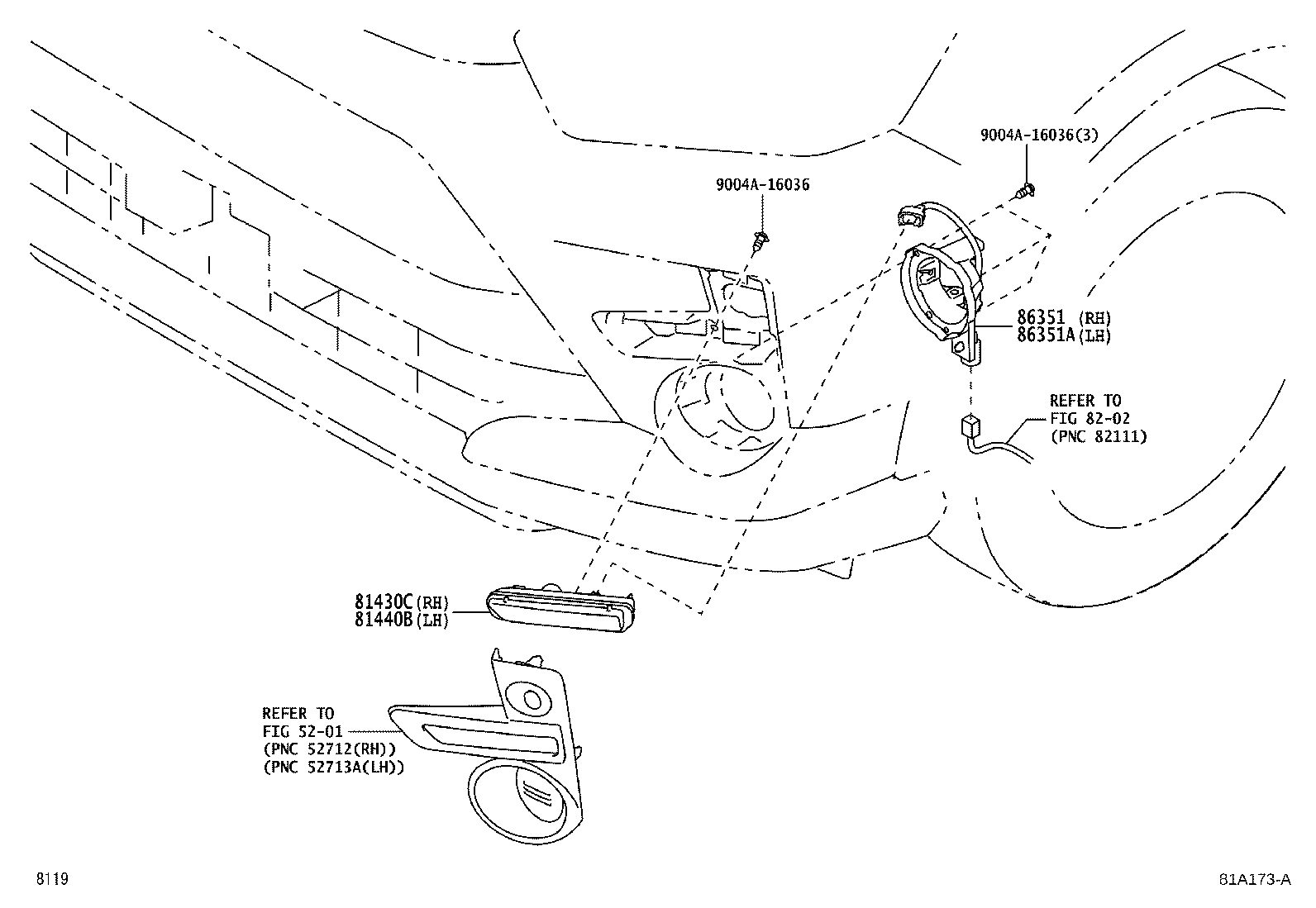

Figure 81A173A

81A173A 2021-10 → —

Part groups

PNC	Description
81430C	Lamp Assy, Daytime Running, RH
81440B	Lamp Assy, Daytime Running, LH
86351	Bracket, Wire RH
86351A	Bracket, Wire LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
