Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 4 illustrations

Illustrations

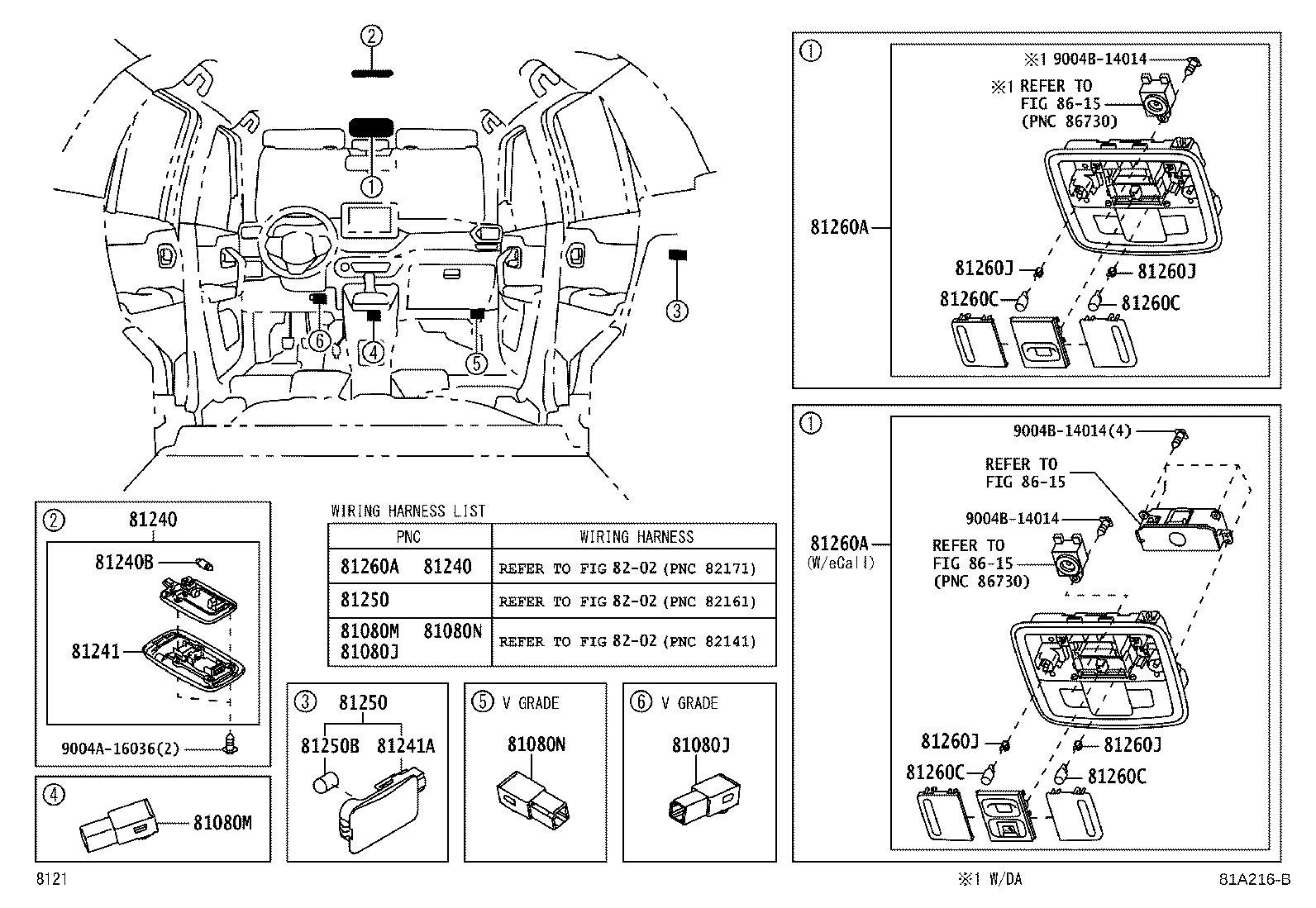

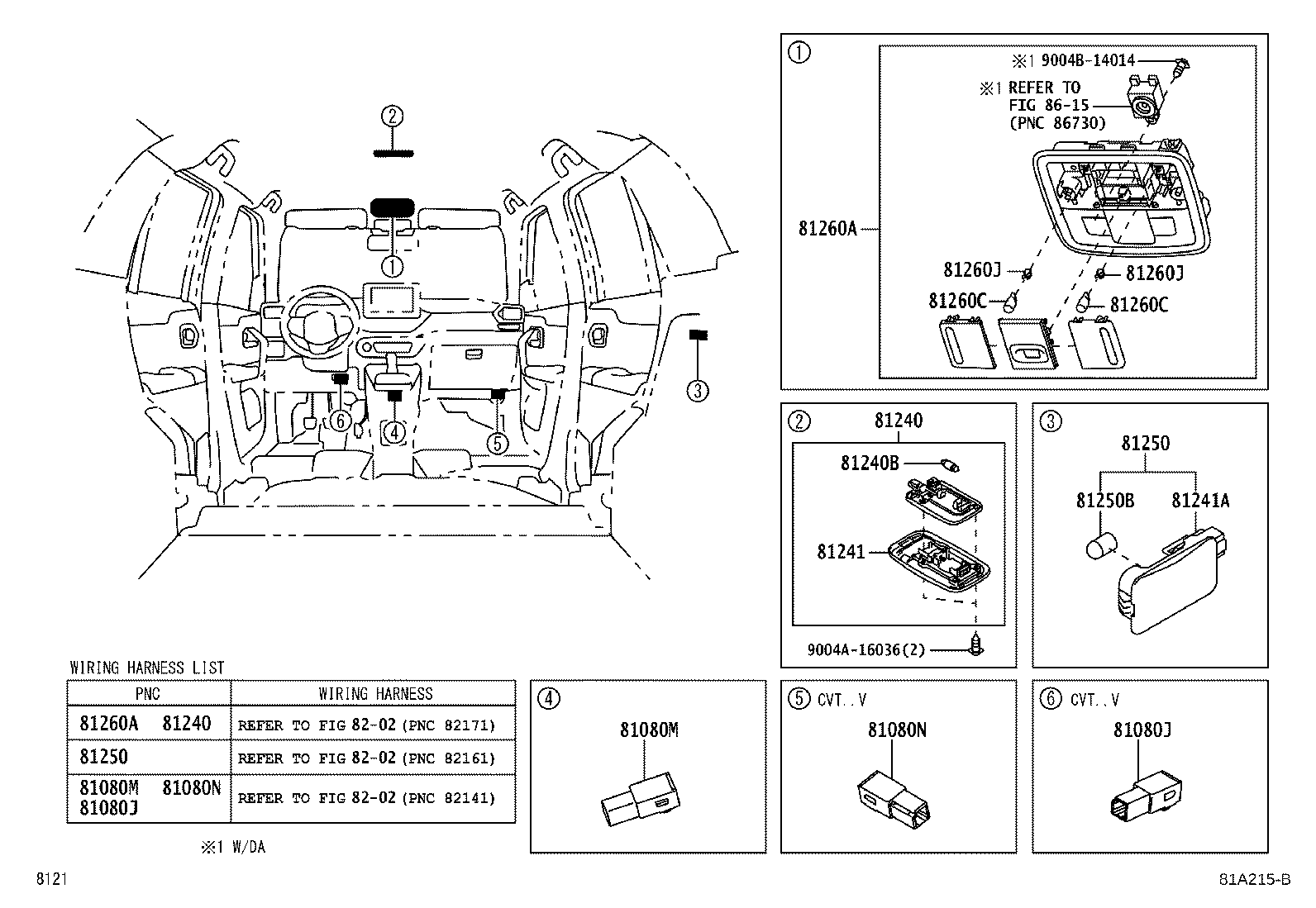

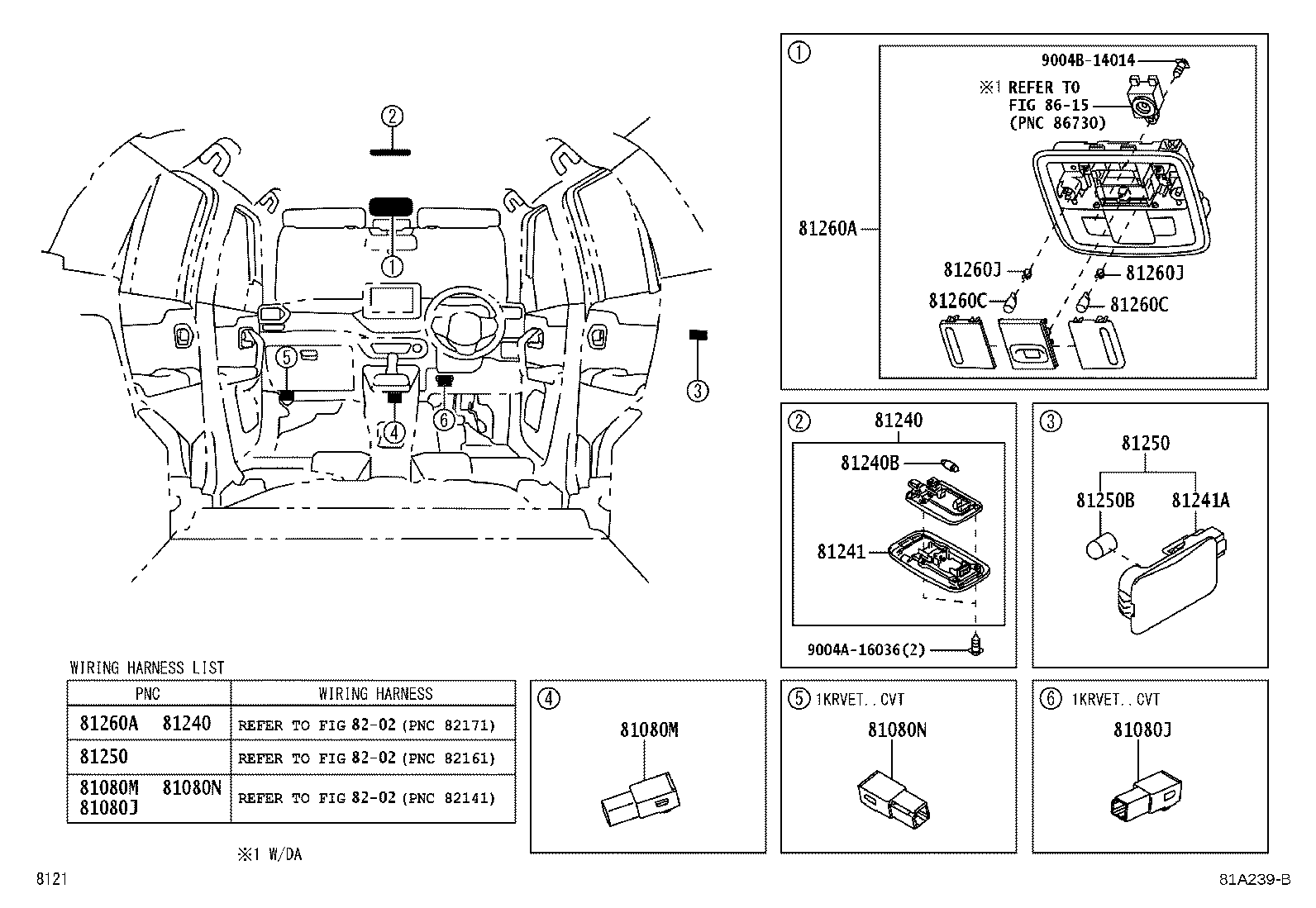

Figure 81A214A 81A214A 2021-04 → — Figure 81A239B 81A239B 2021-08 → — Figure 81A215B 81A215B 2021-08 → — Figure 81A216B 81A216B 2021-10 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81260J Socket, Bulb(FOR MAP LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
