Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 14 illustrations

Illustrations

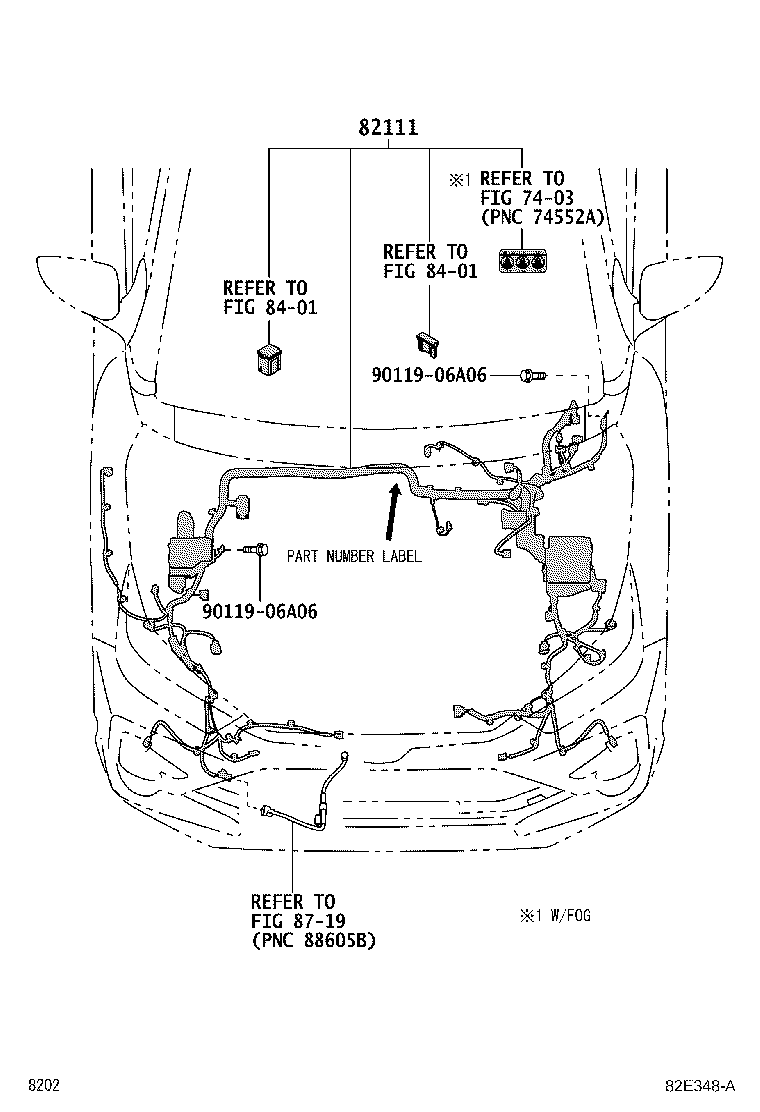

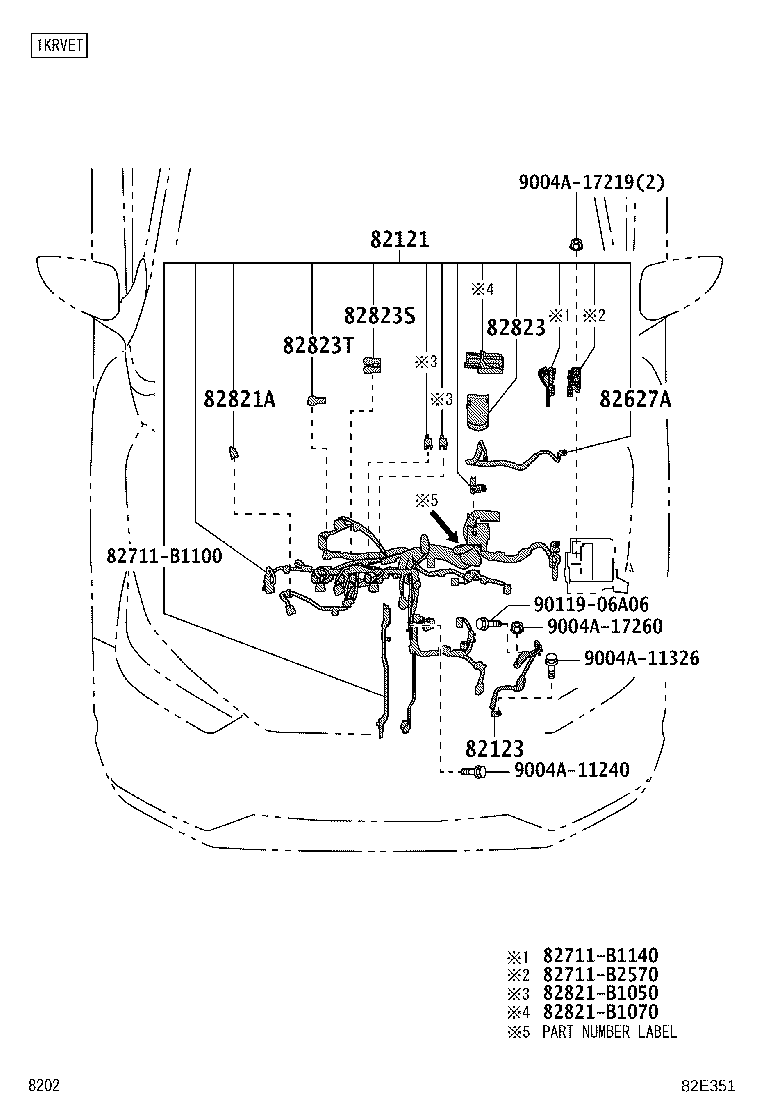

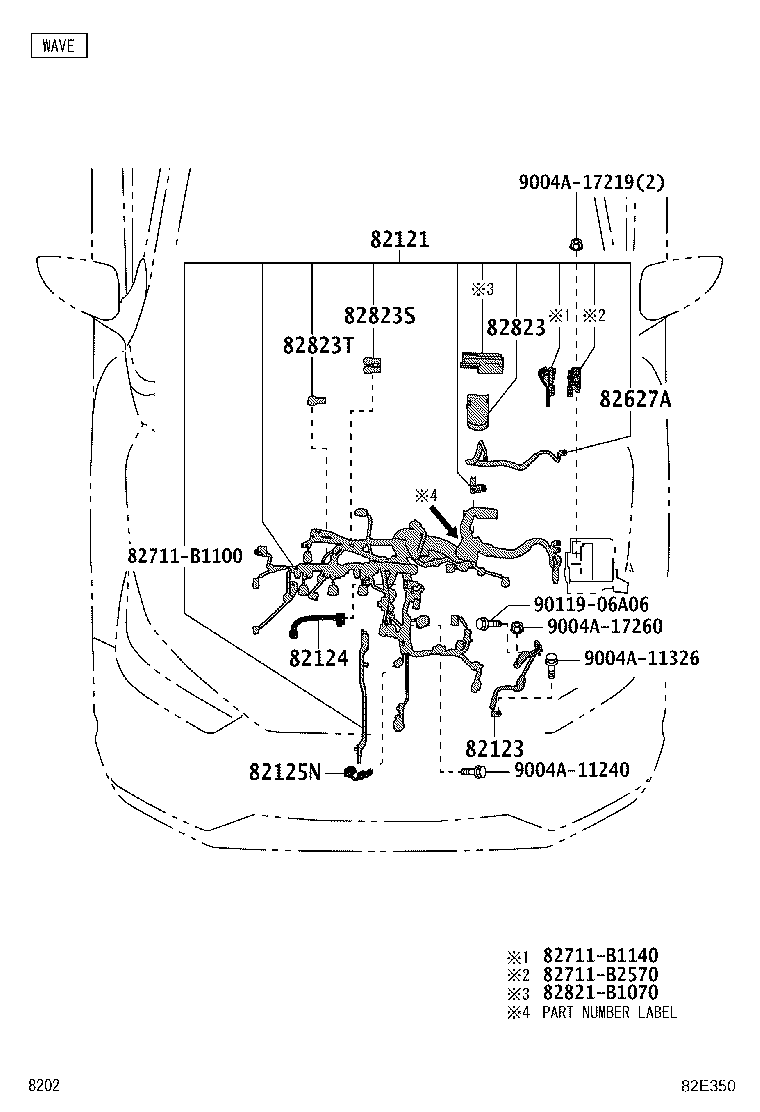

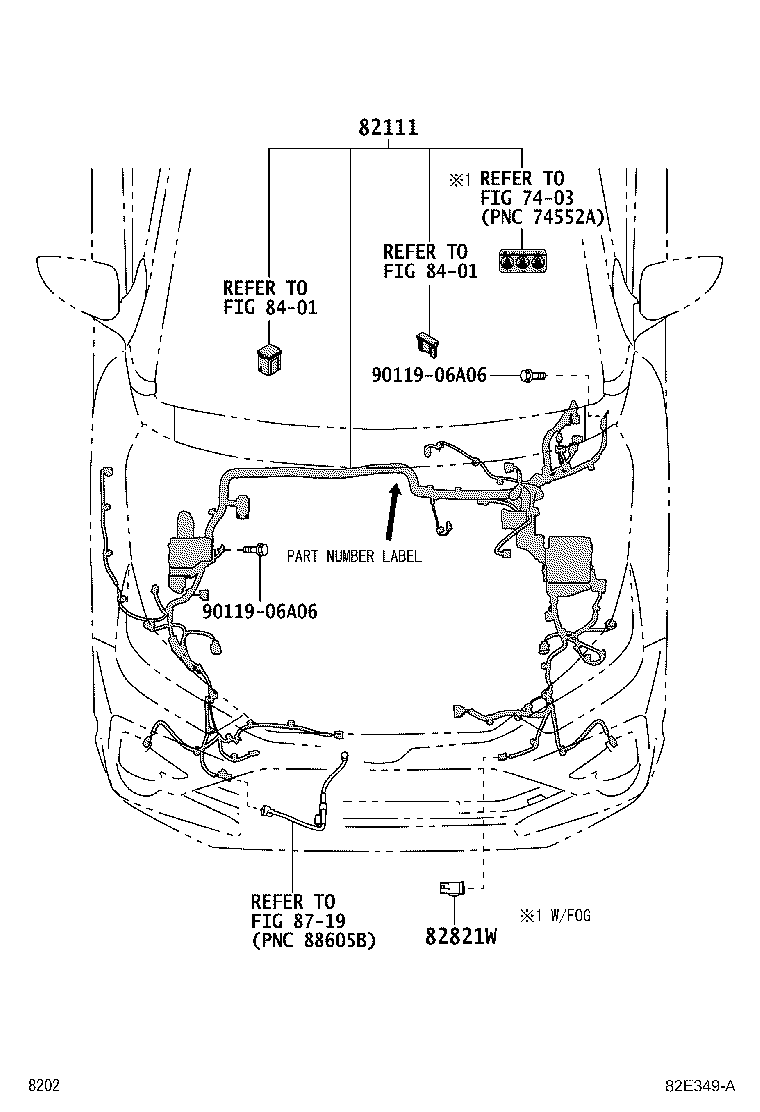

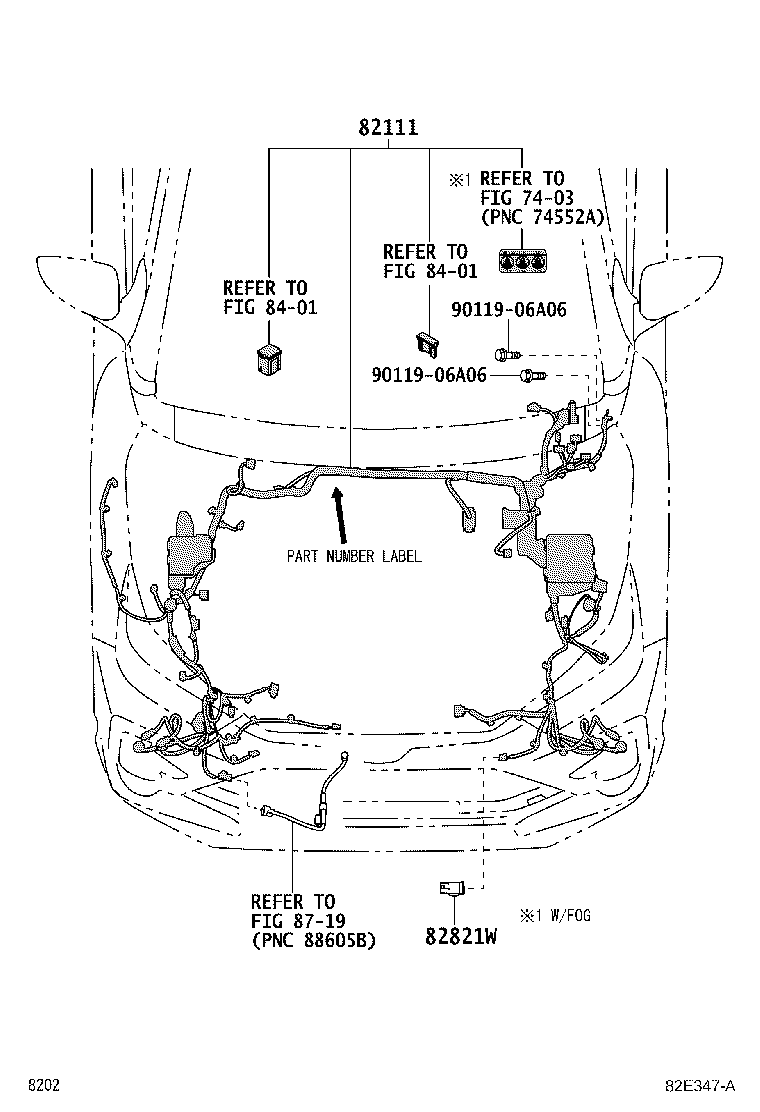

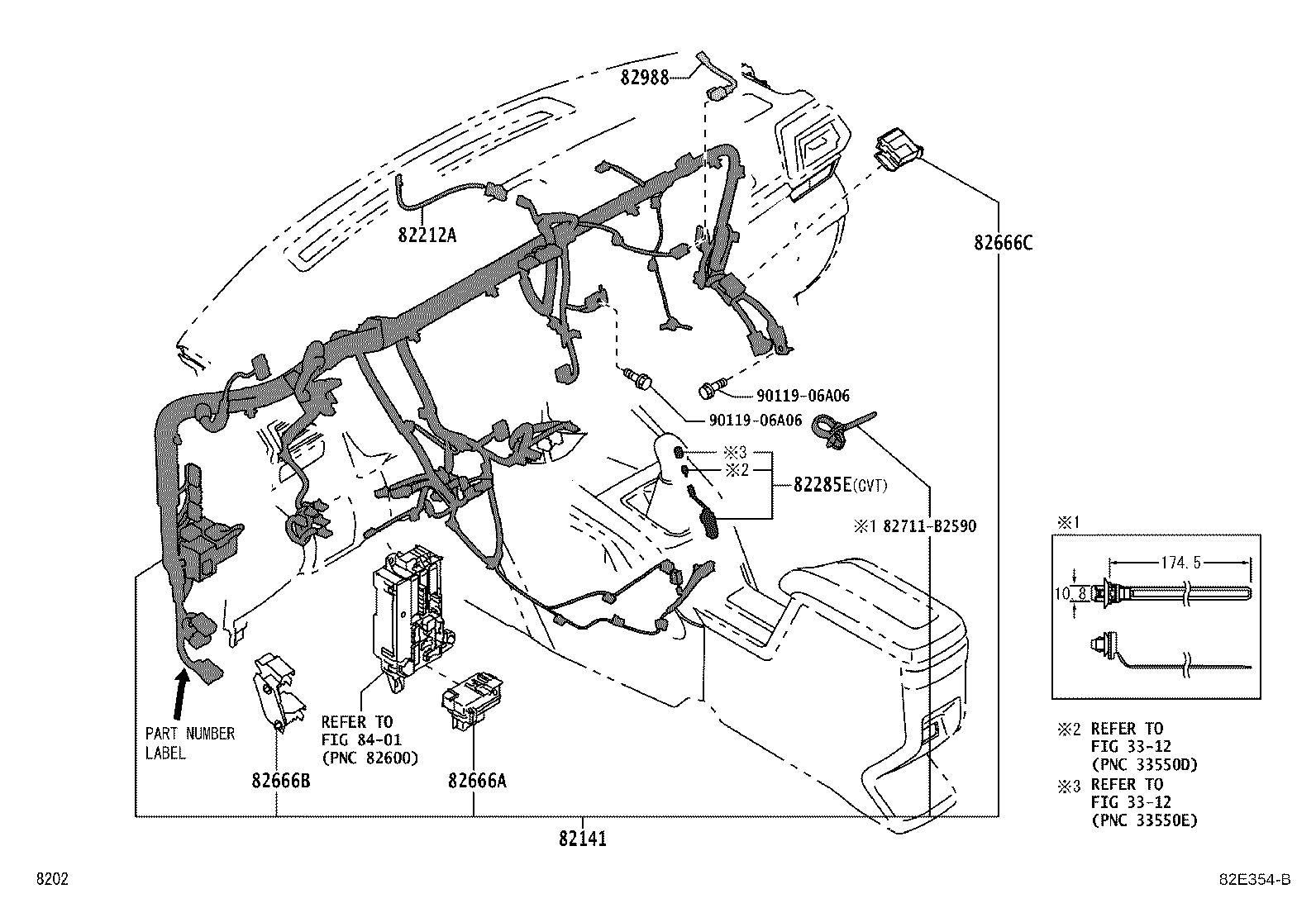

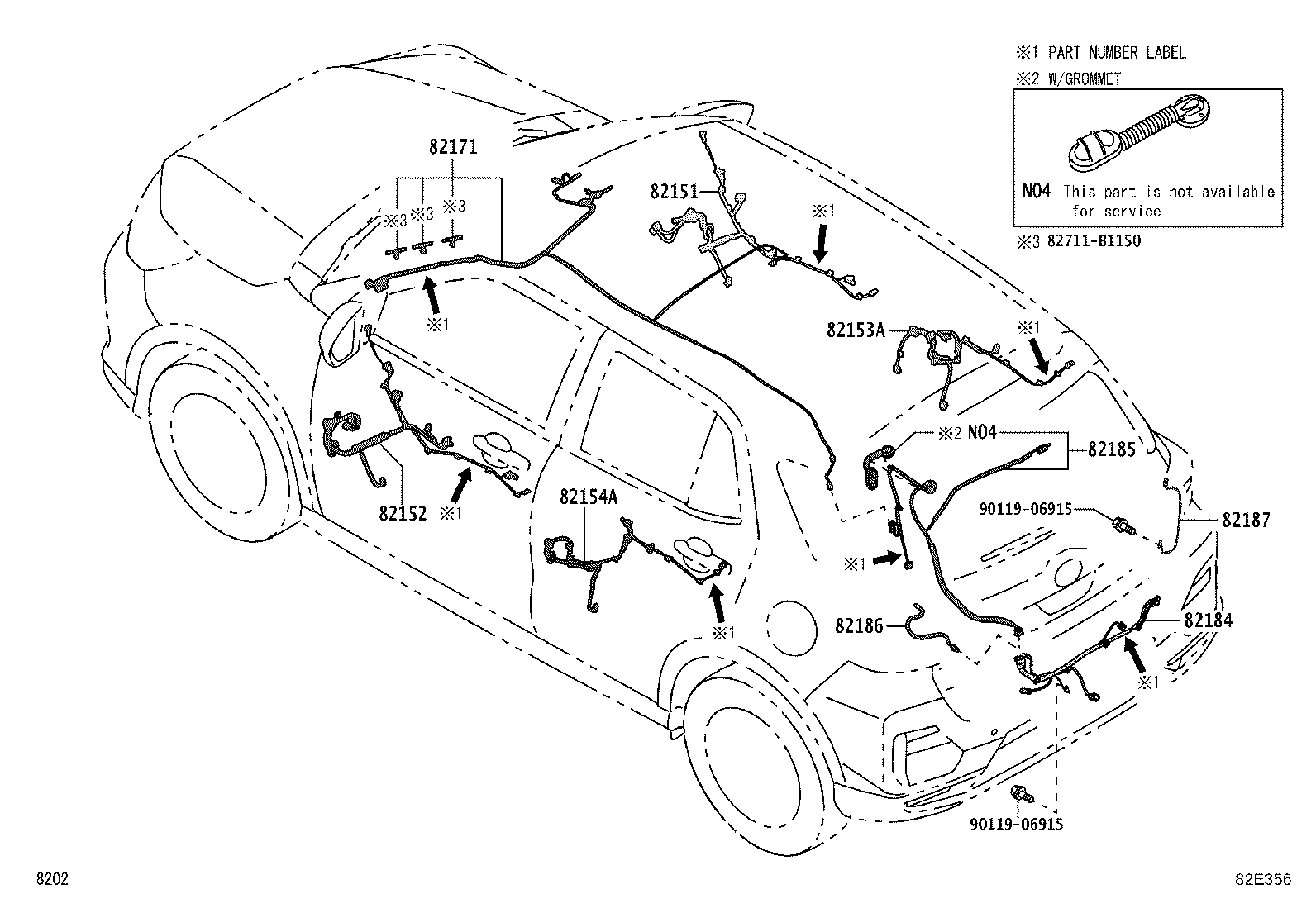

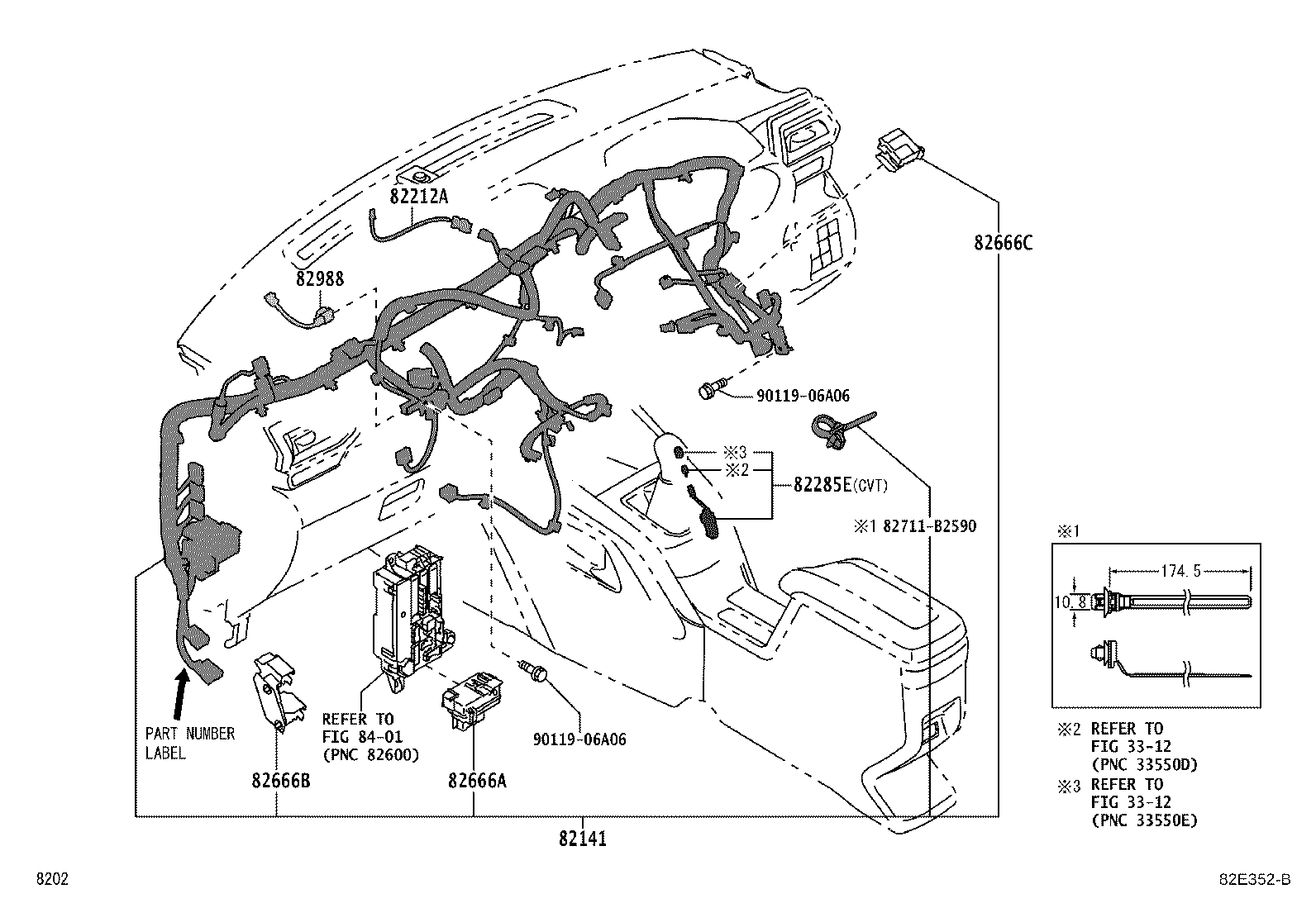

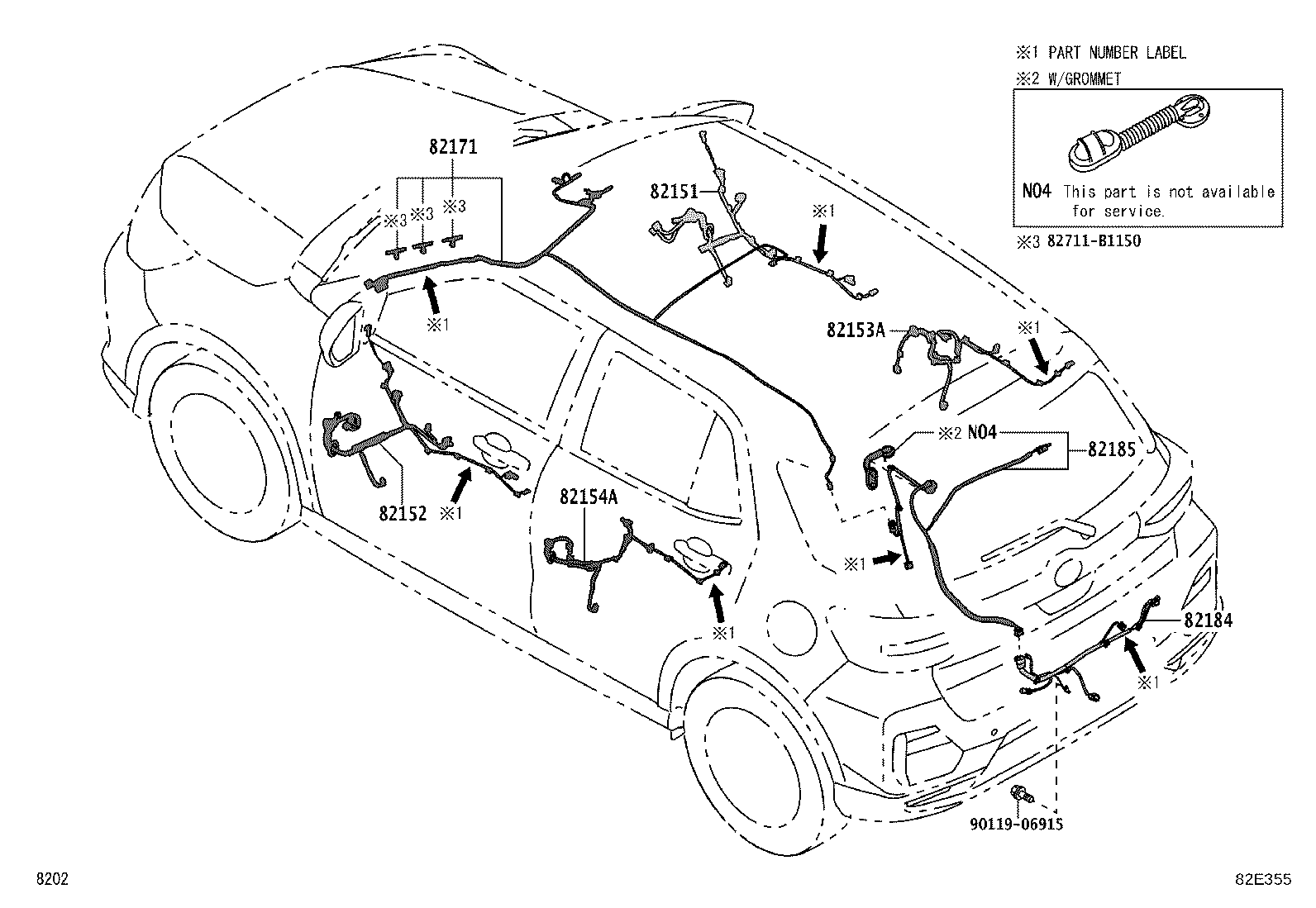

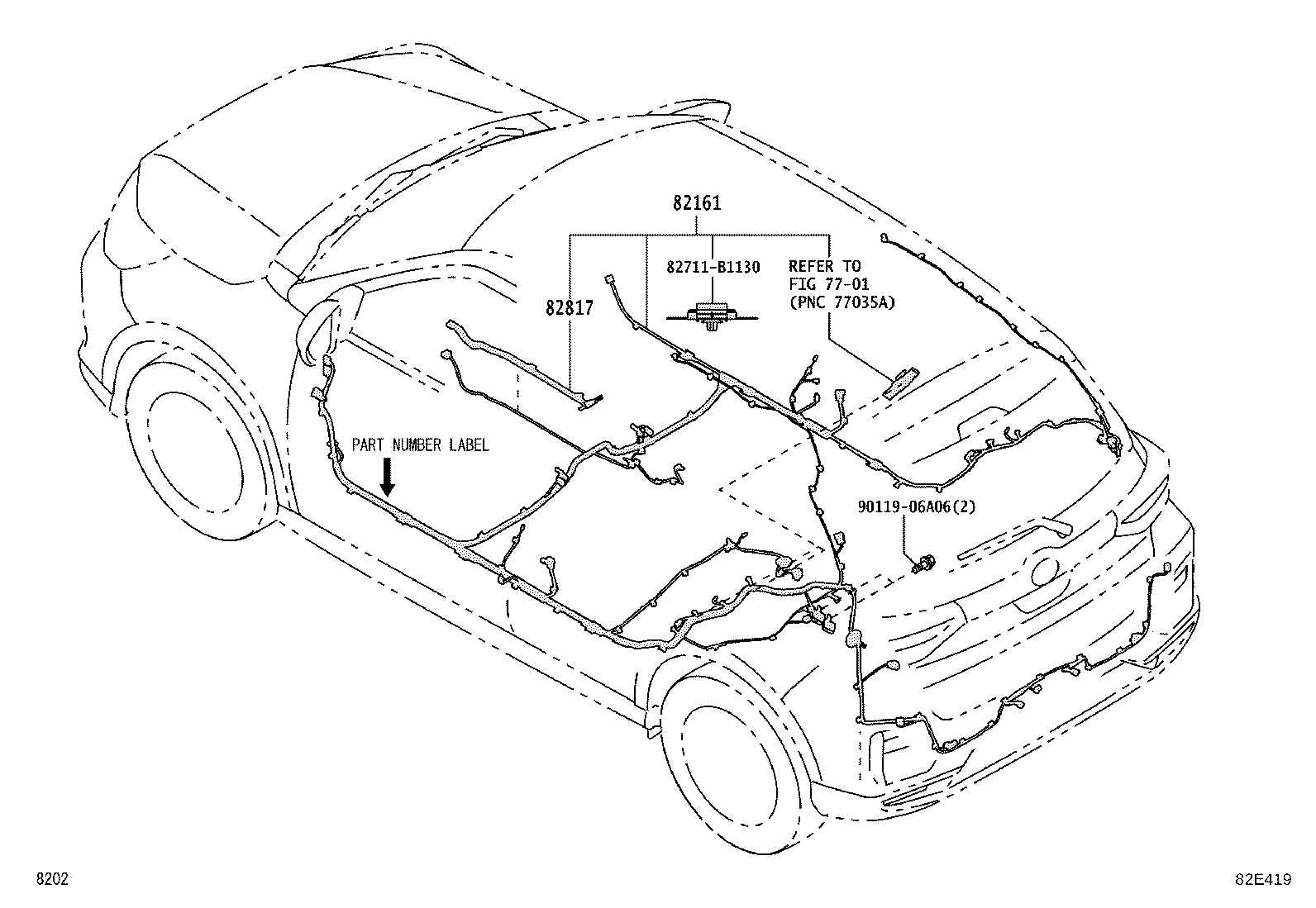

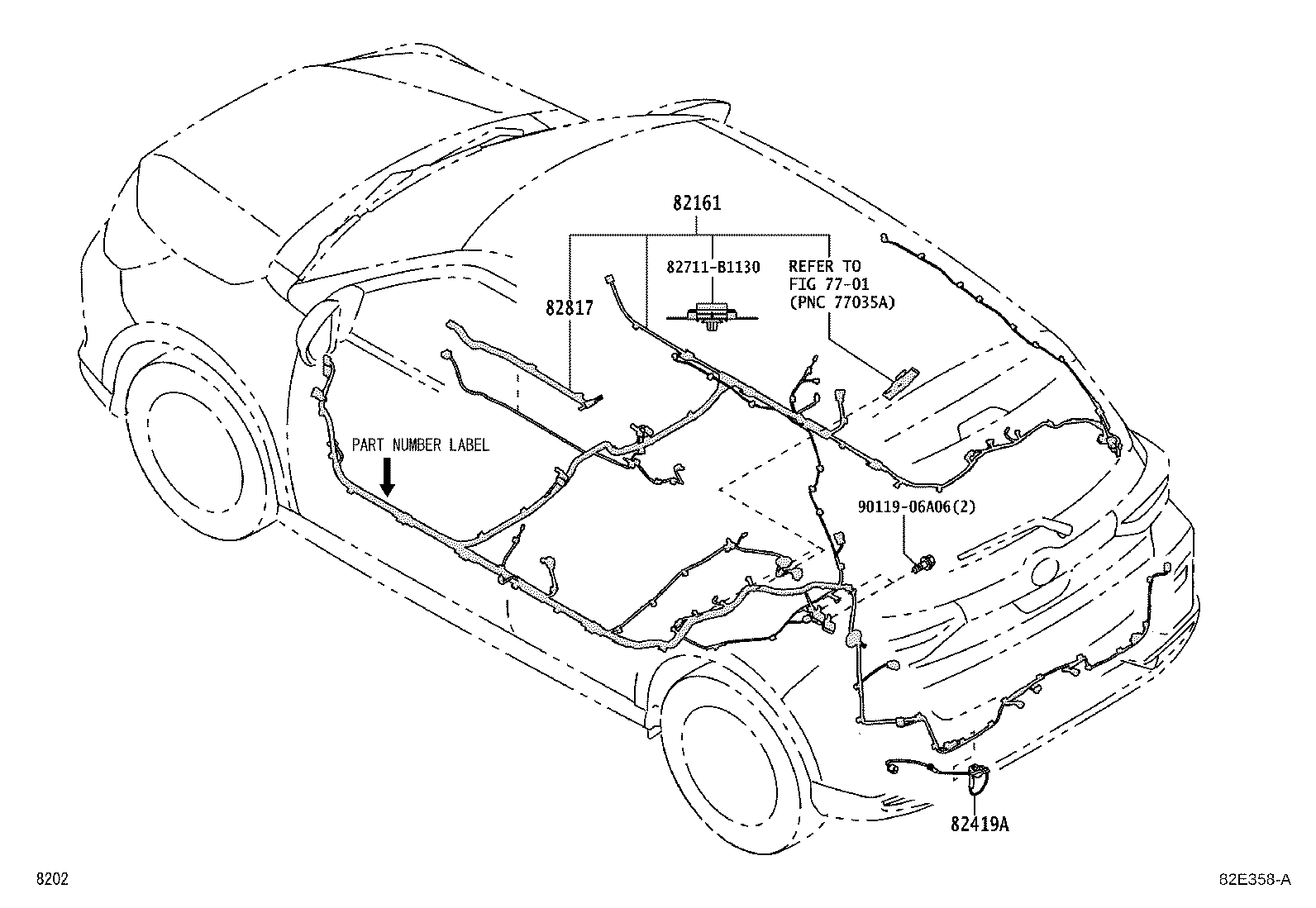

Figure 82E346A 82E346A 2021-04 → 2021-08 Figure 82E347A 82E347A 2021-08 → — Figure 82E348A 82E348A 2021-08 → 2021-10 Figure 82E349A 82E349A 2021-10 → 2026-08 Figure 82E351 82E351 2021-04 → — Figure 82E350 82E350 2021-04 → — Figure 82E352B 82E352B 2021-04 → 2026-06 Figure 82E352B 82E352B 2021-08 → 2026-07 Figure 82E354B 82E354B 2021-08 → 2026-07 Figure 82E354B 82E354B 2021-10 → 2026-08 Figure 82E355 82E355 2021-04 → — Figure 82E356 82E356 2021-08 → — Figure 82E419 82E419 2021-04 → — Figure 82E358A 82E358A 2021-10 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82212A Harness, Air Conditioner
82285E Wire, Illumination
82419A Wire, Rear Fog Lamp
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
