Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

2 part groups · 6 illustrations

Illustrations

Figure 832481A

832481A 2021-04 → —

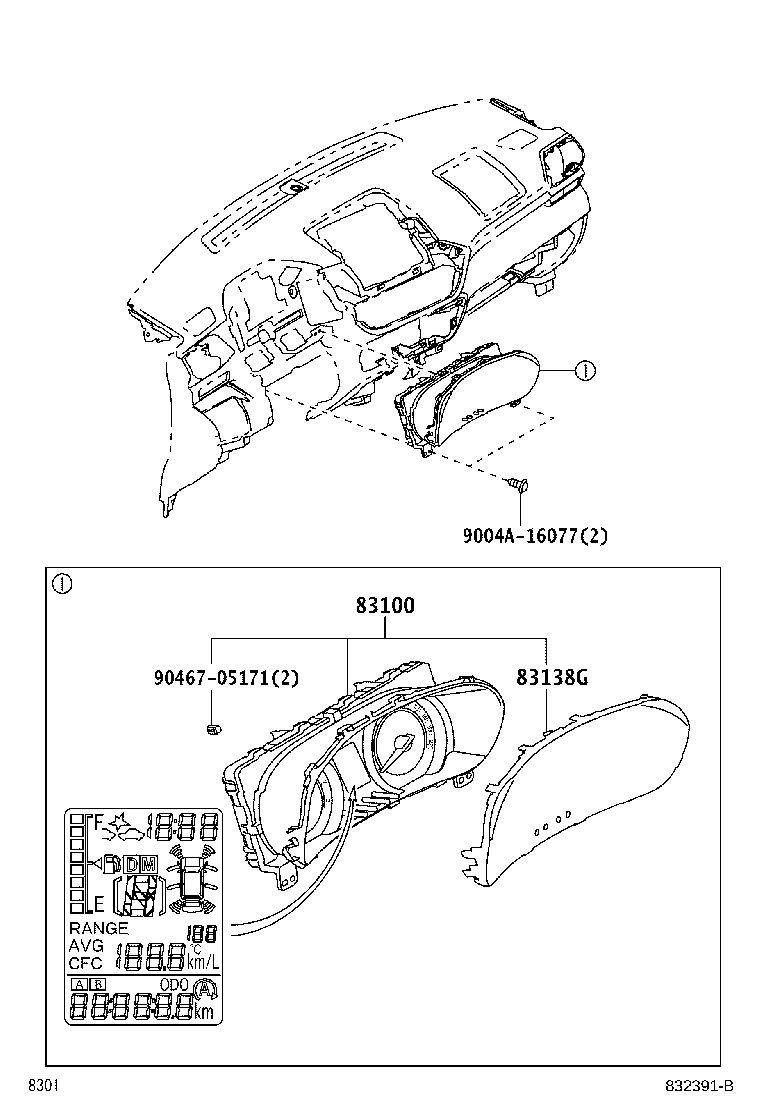

Figure 832391B

832391B 2021-08 → —

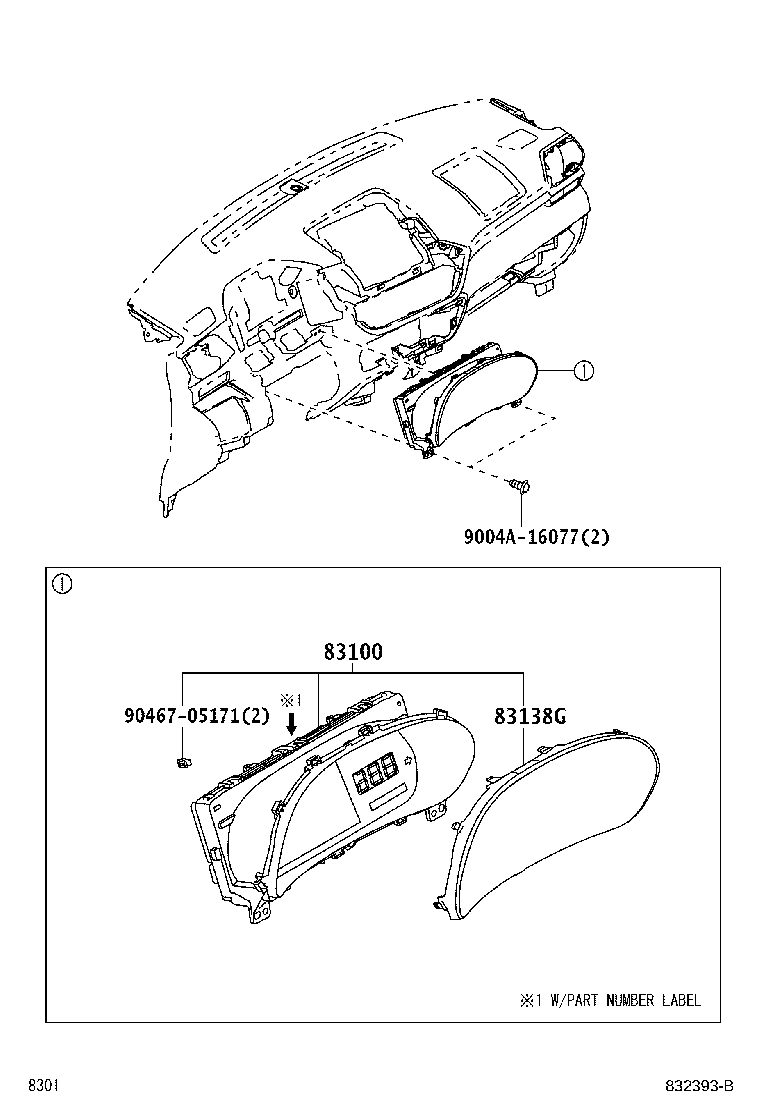

Figure 832393B

832393B 2021-08 → —

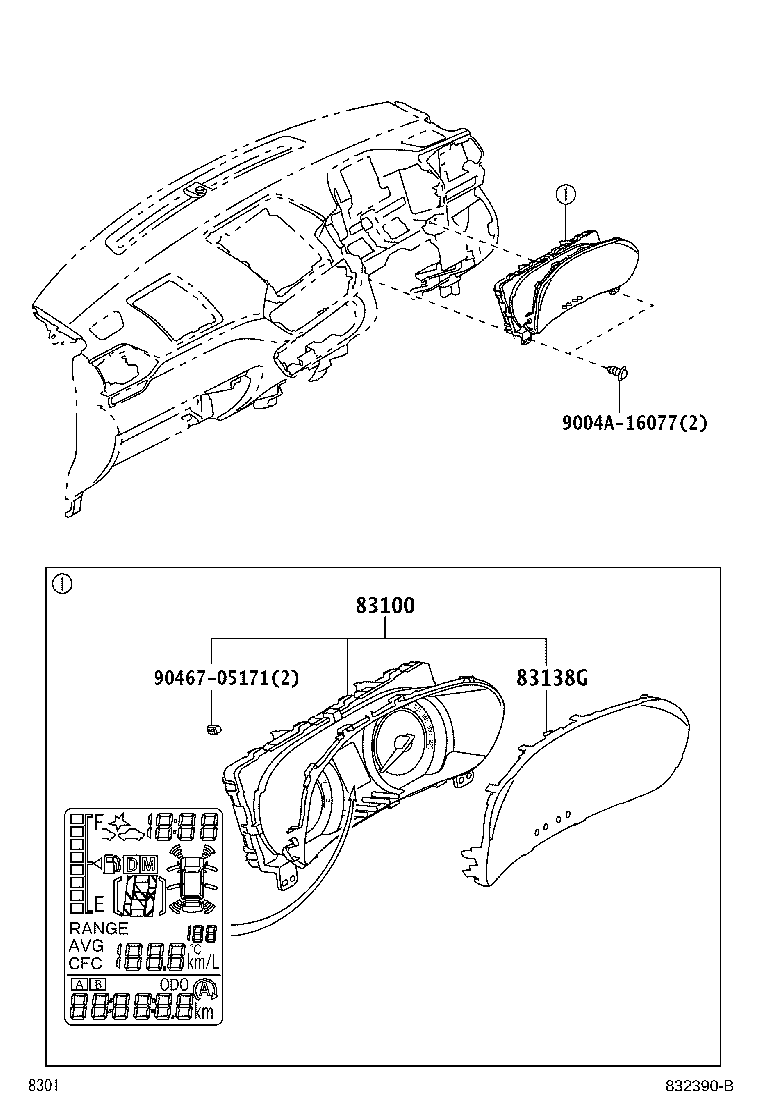

Figure 832390B

832390B 2021-08 → —

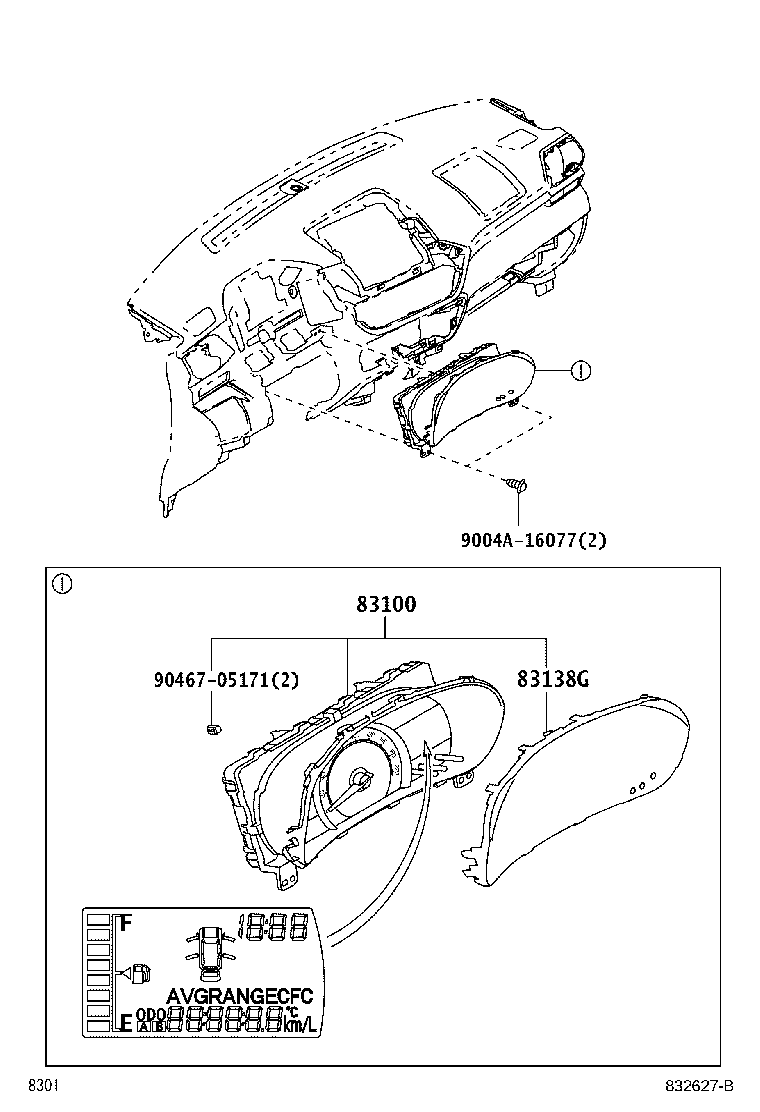

Figure 832627B

832627B 2021-08 → —

Figure 832627B

832627B 2021-10 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
