Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

58 part groups · 24 illustrations

Illustrations

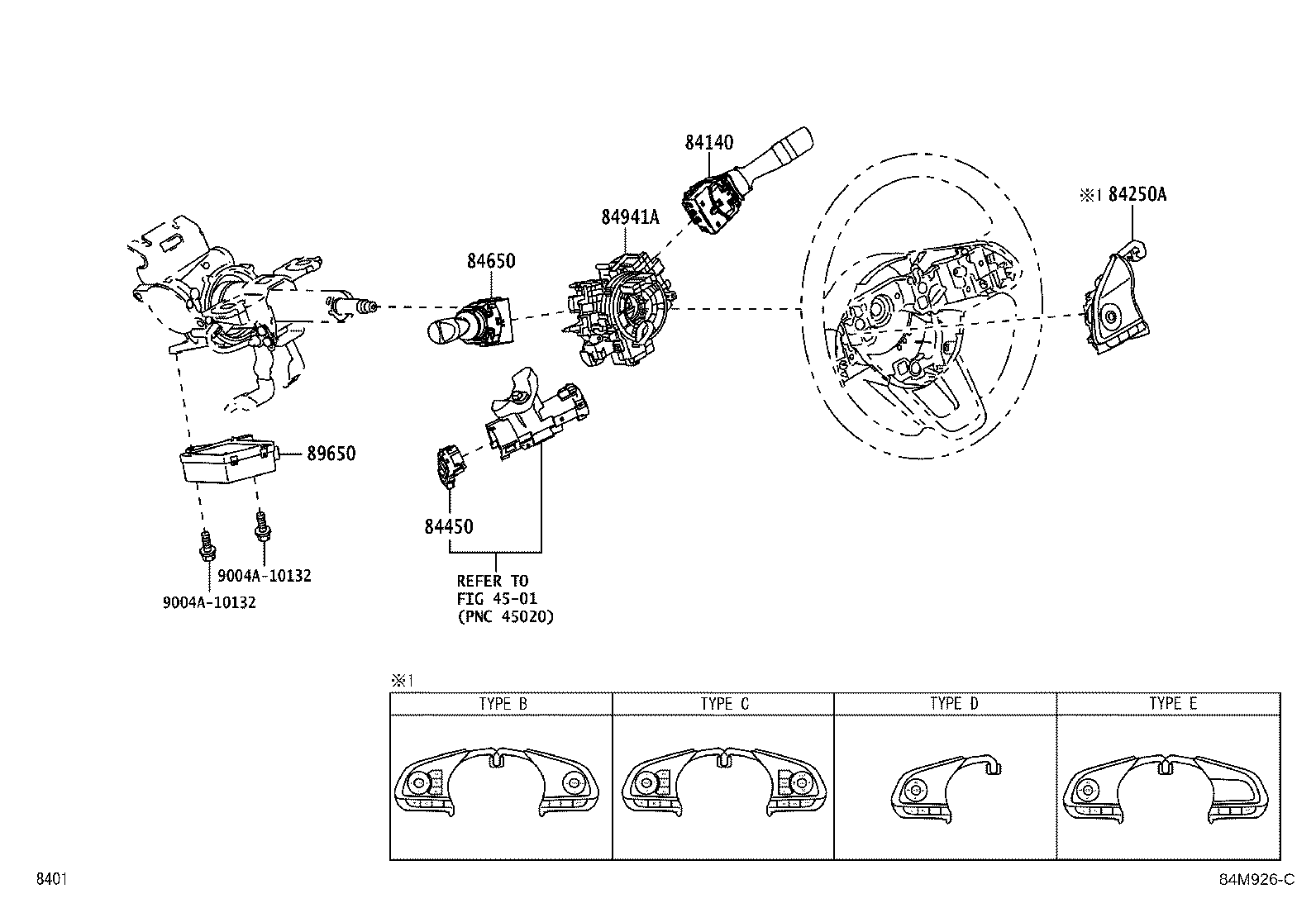

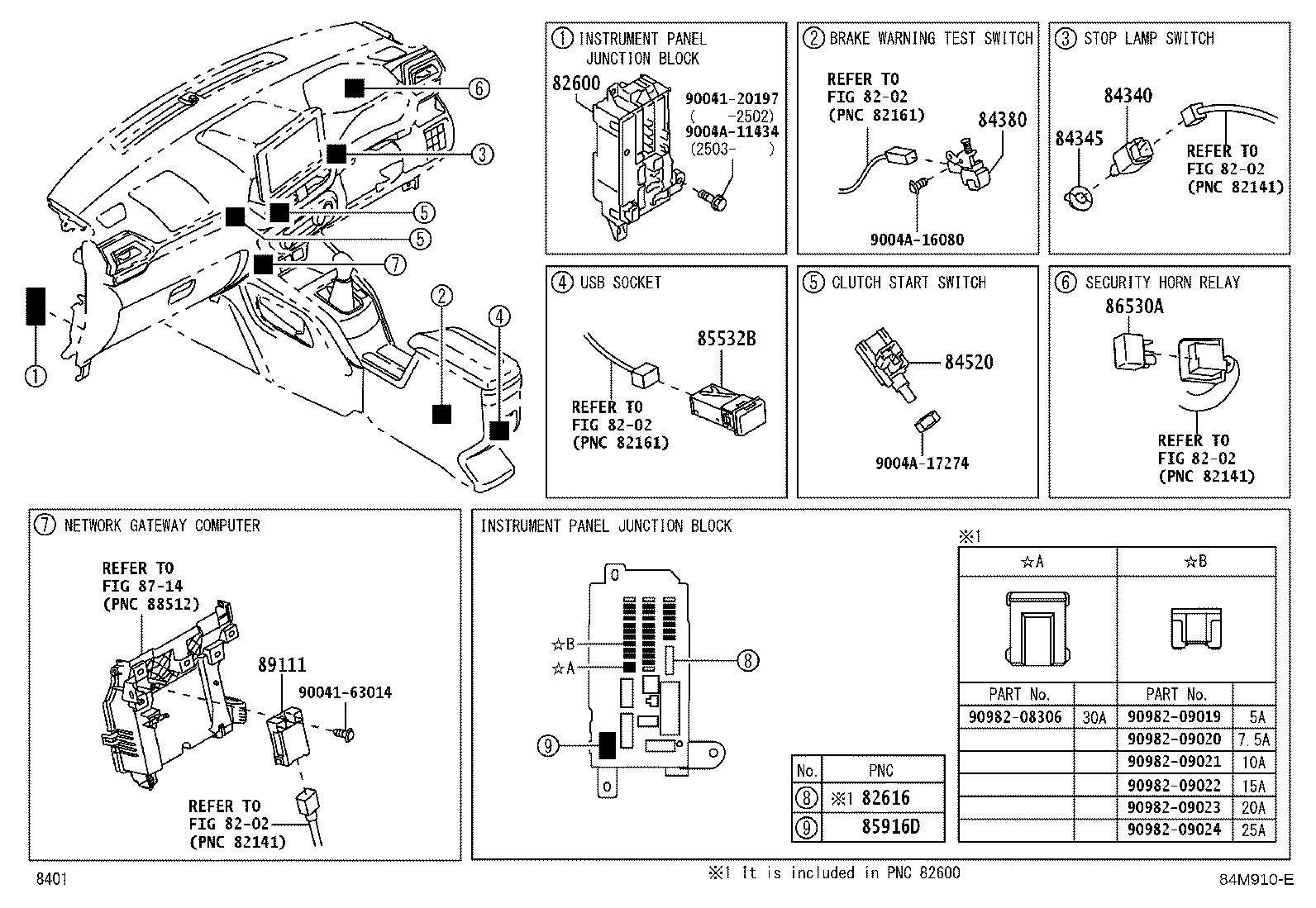

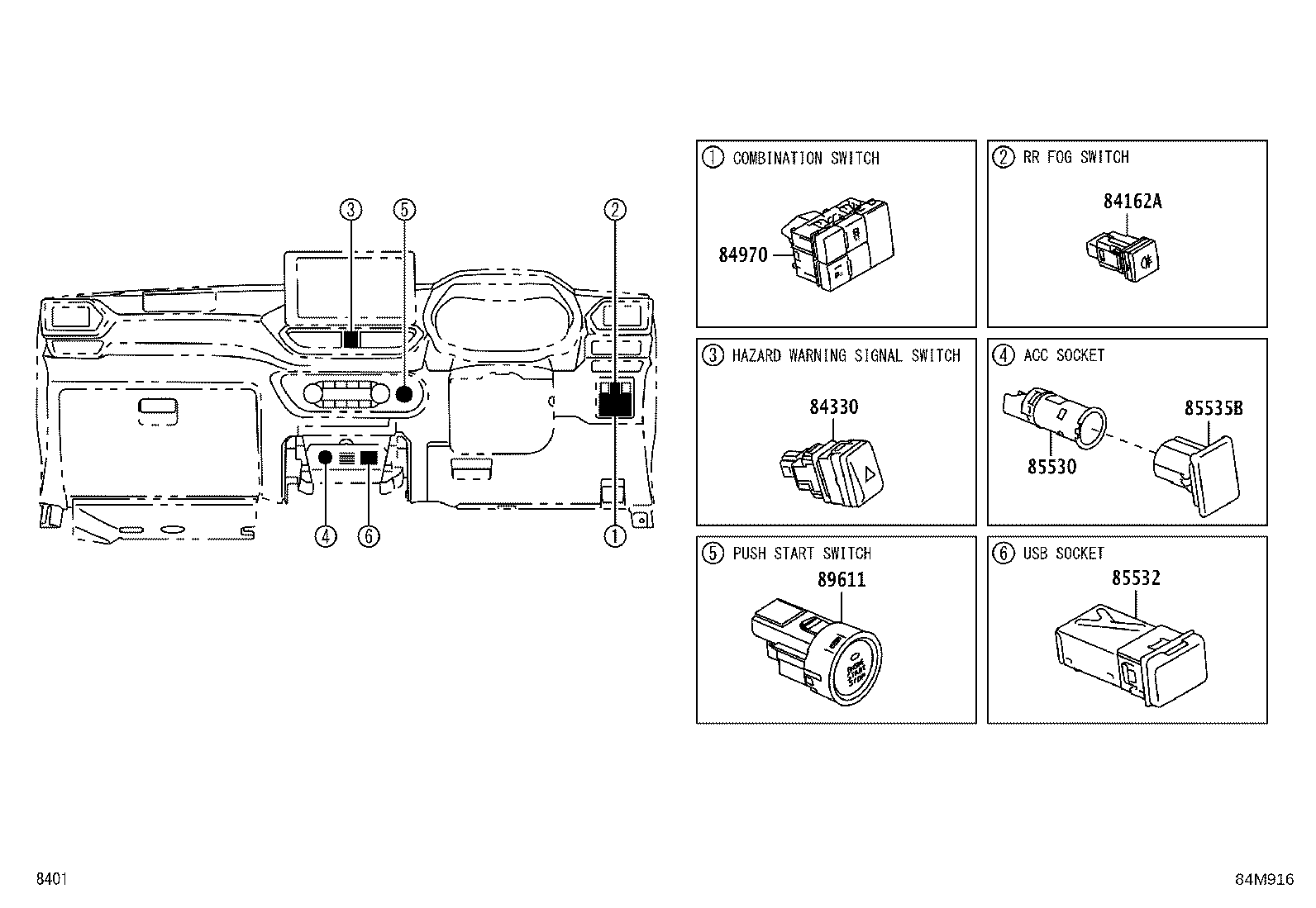

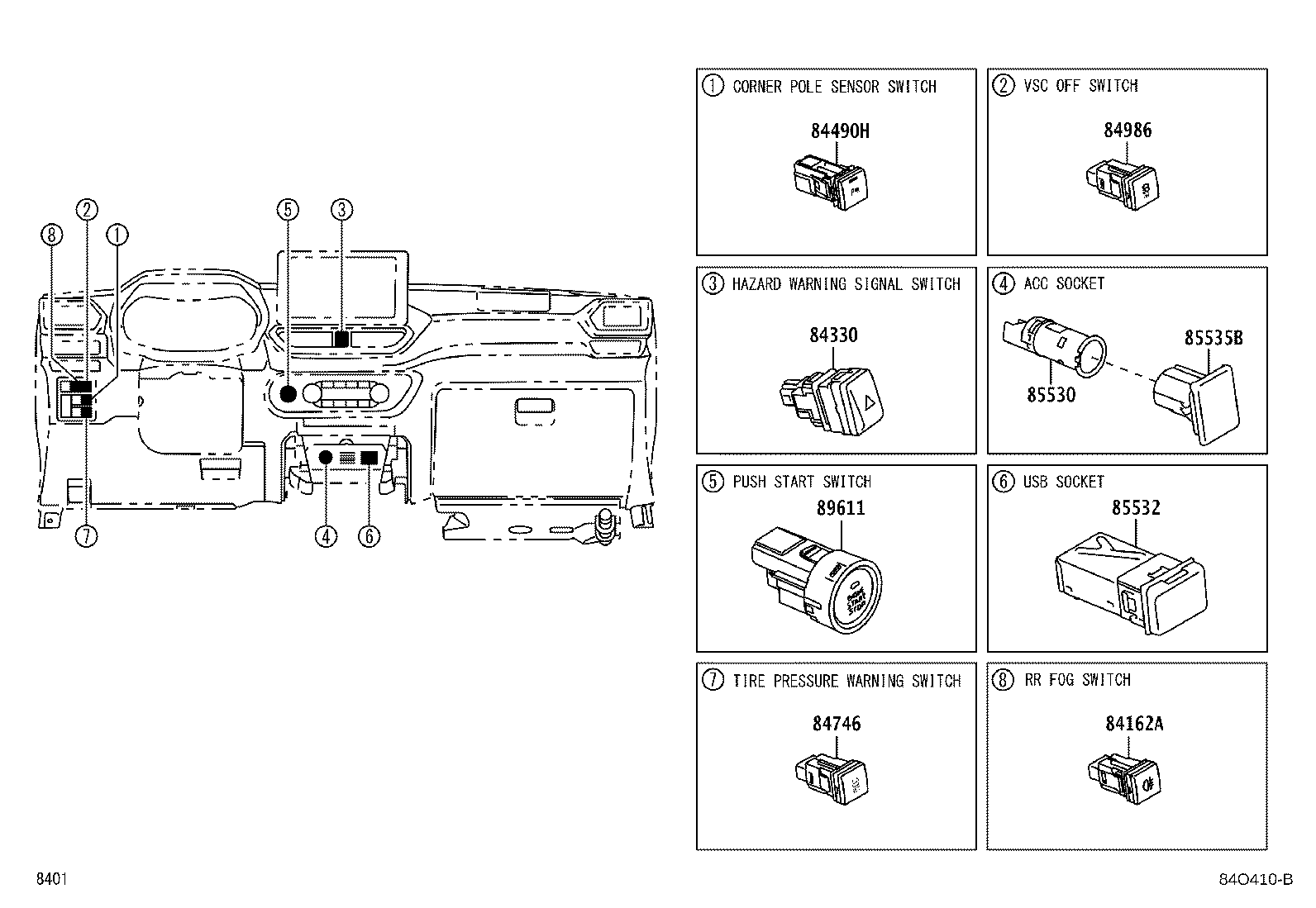

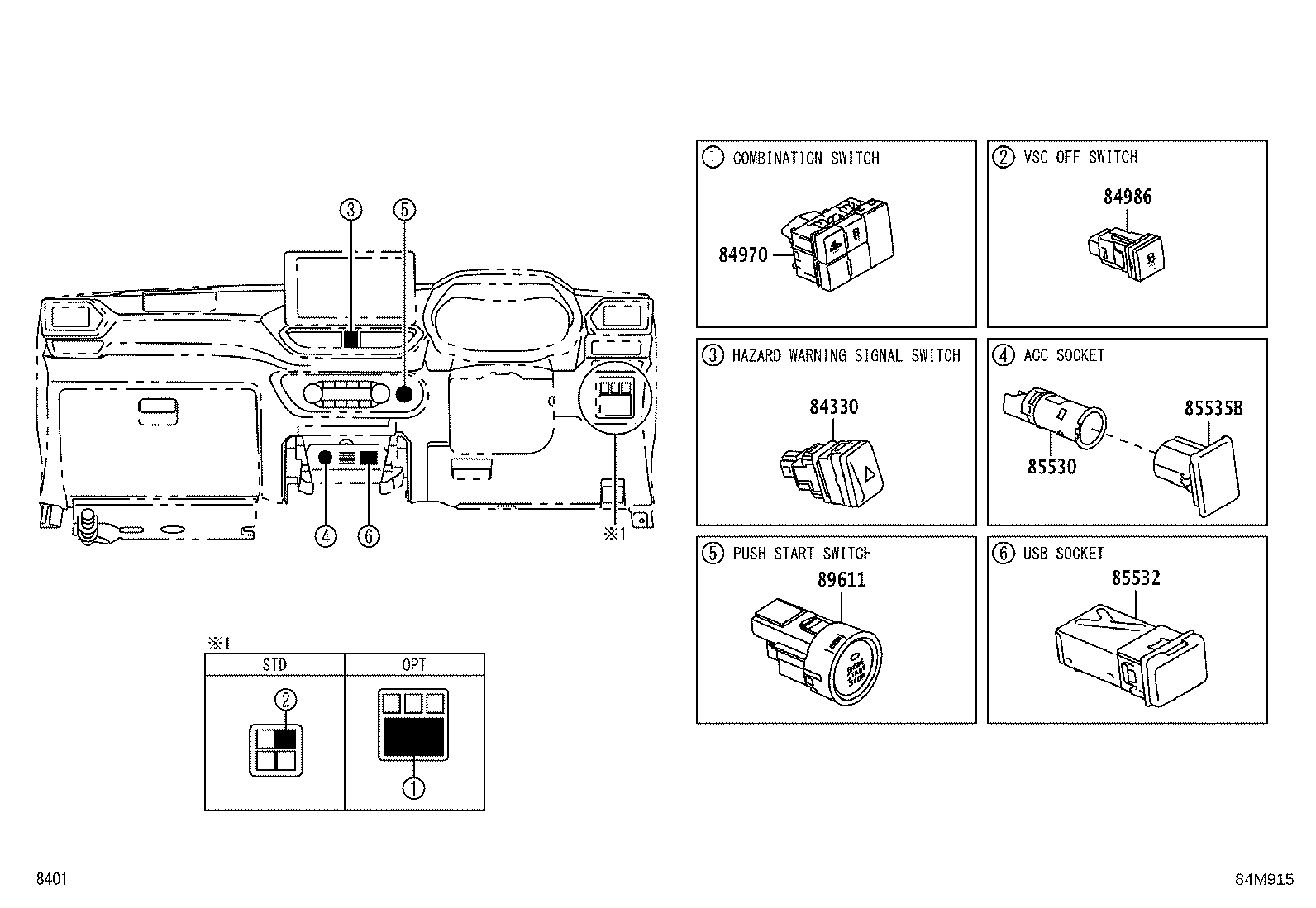

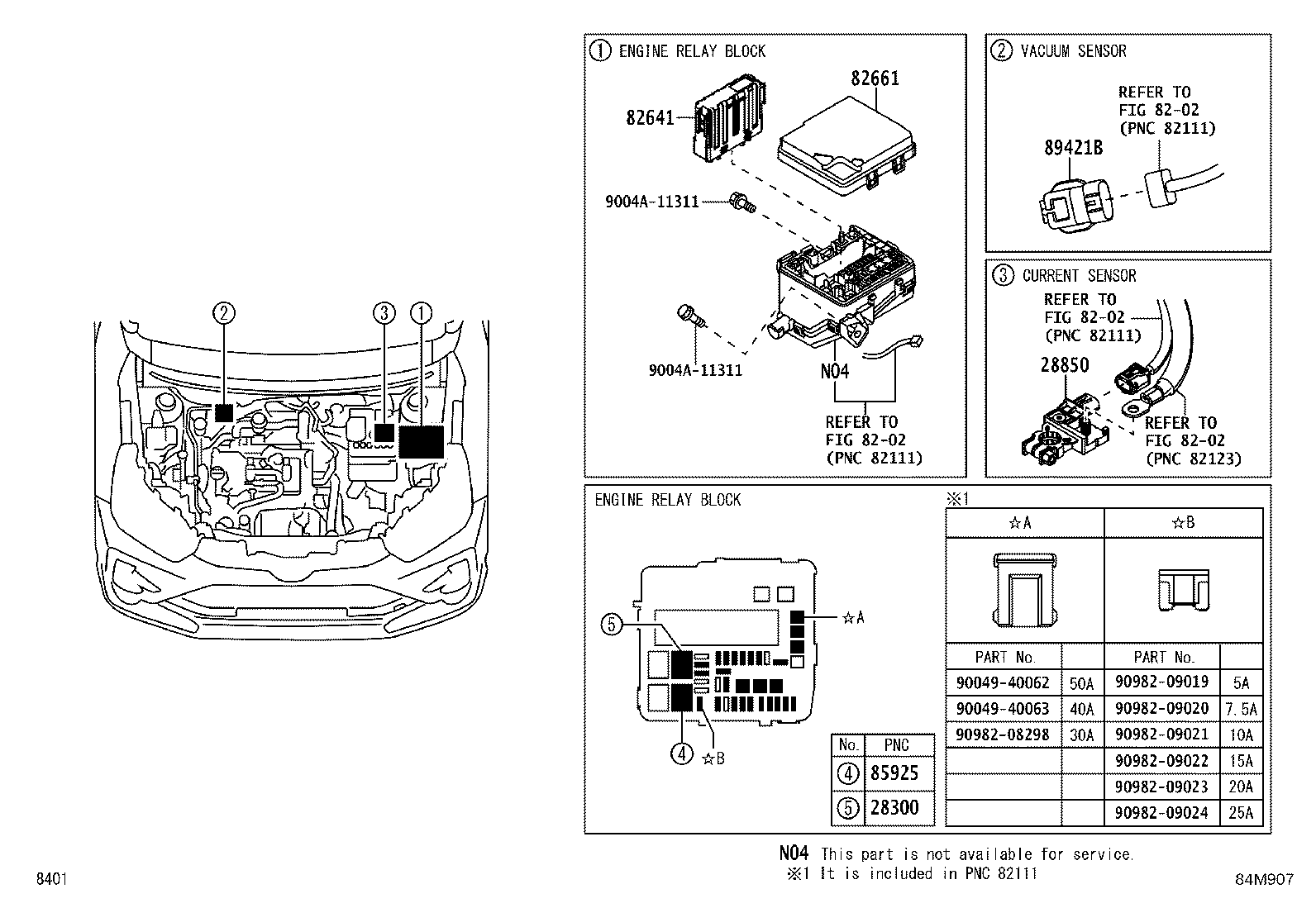

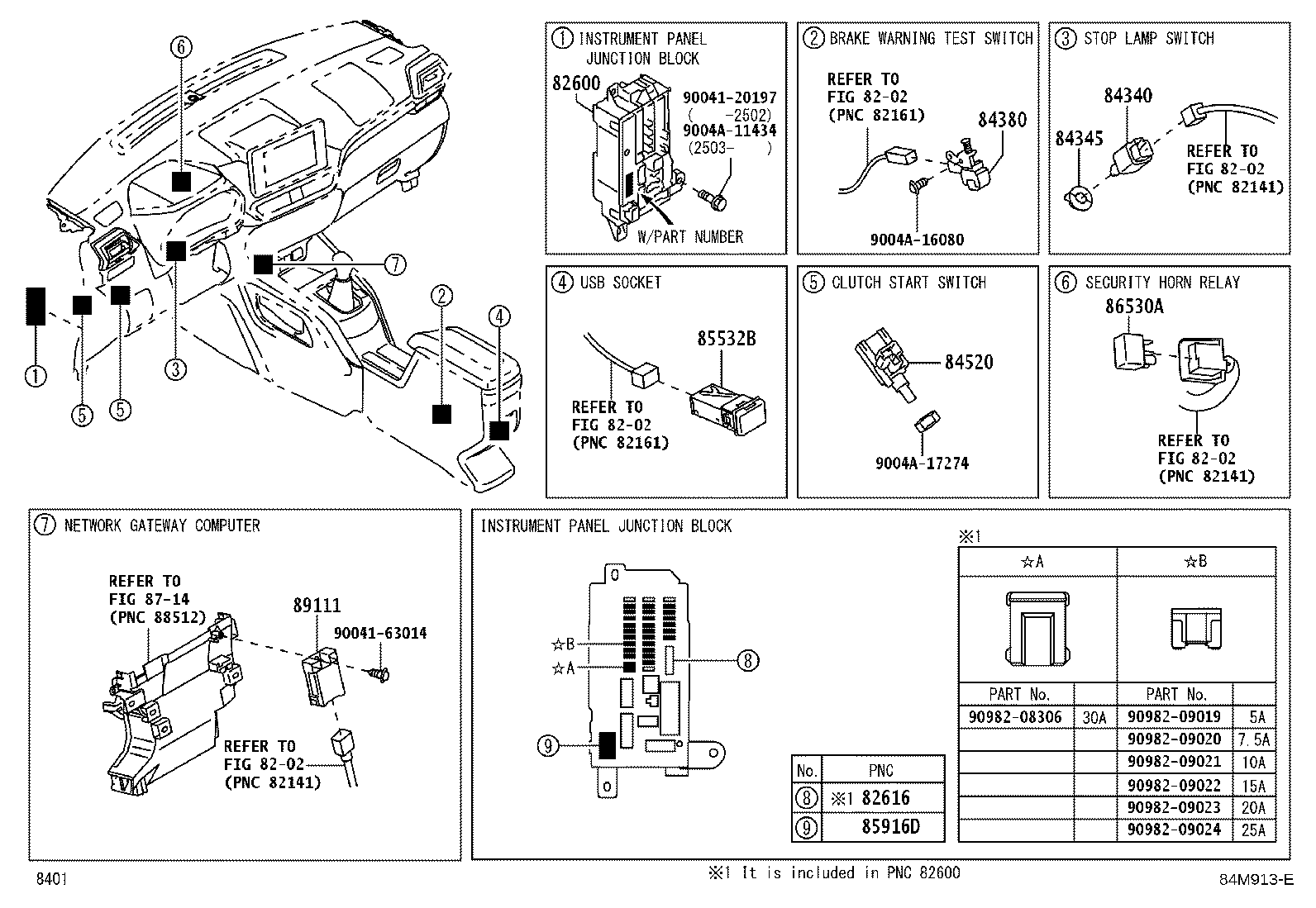

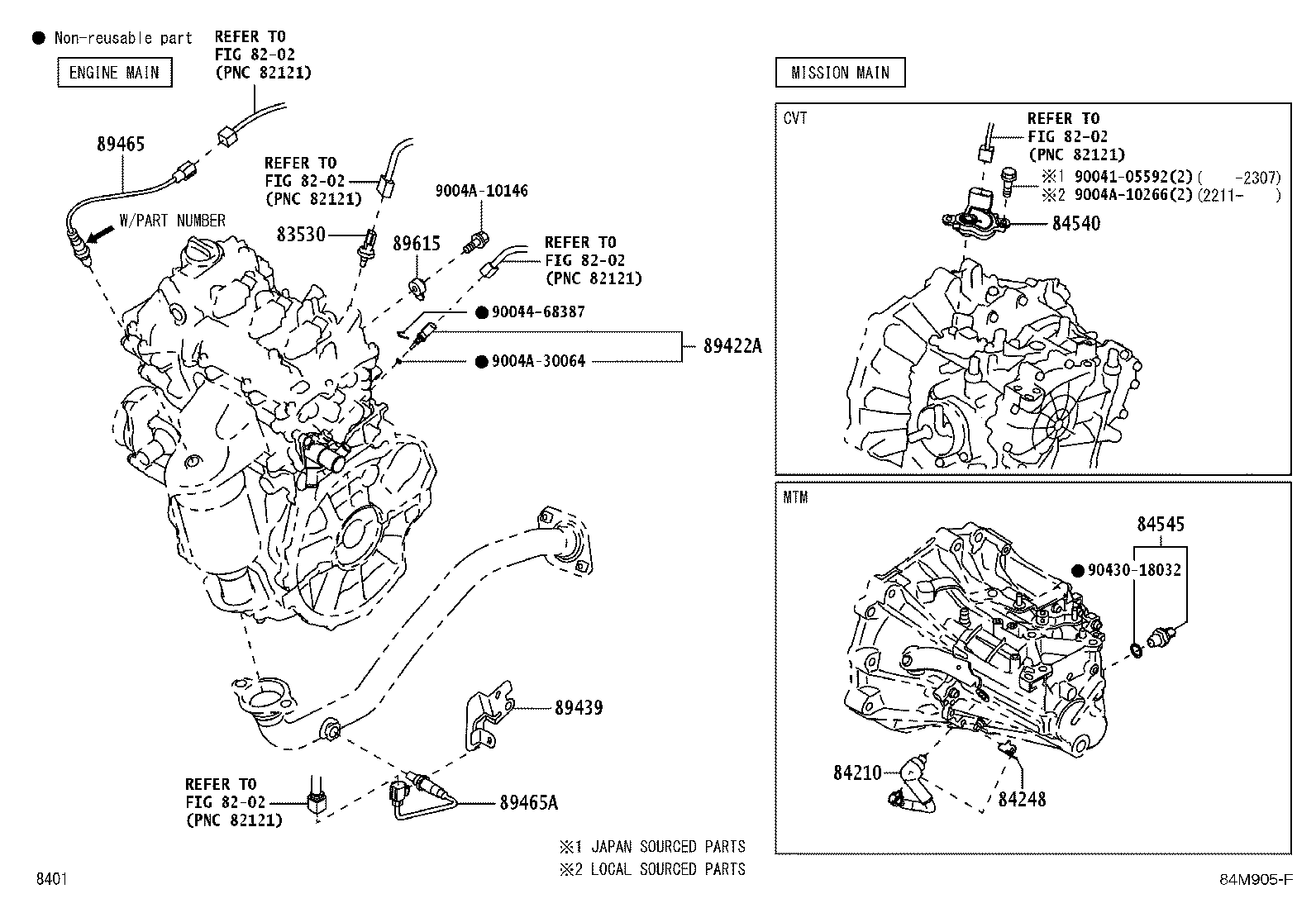

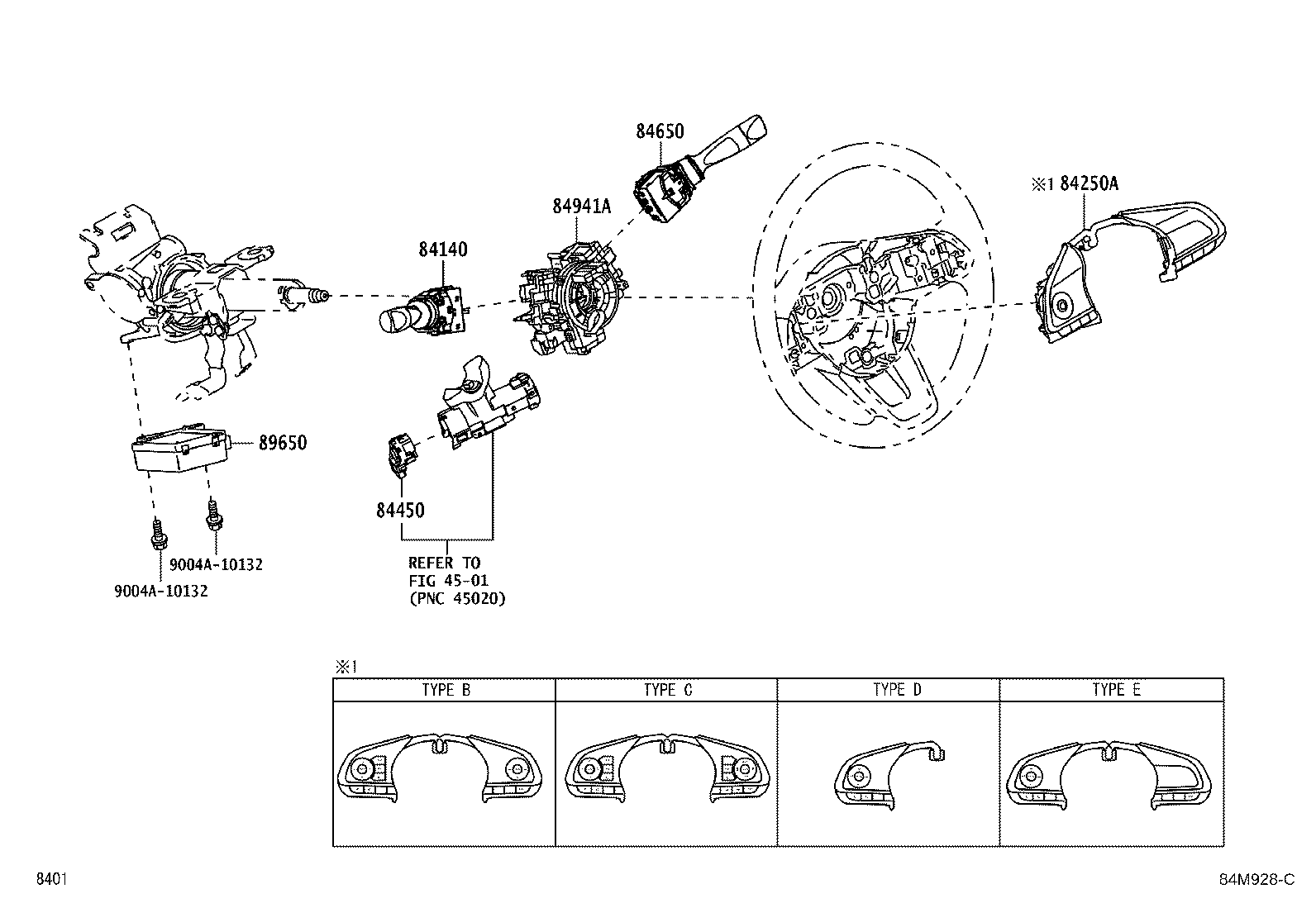

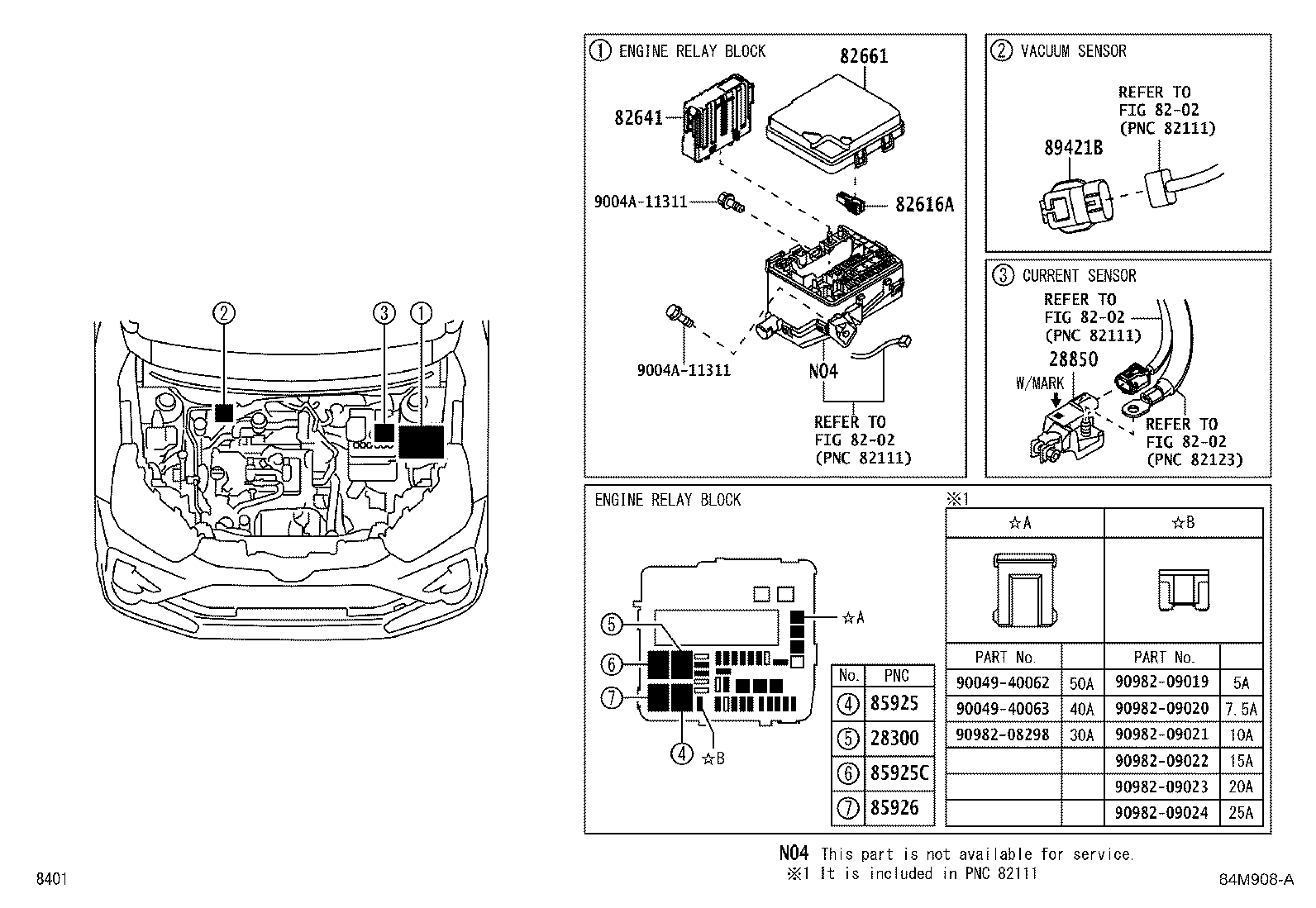

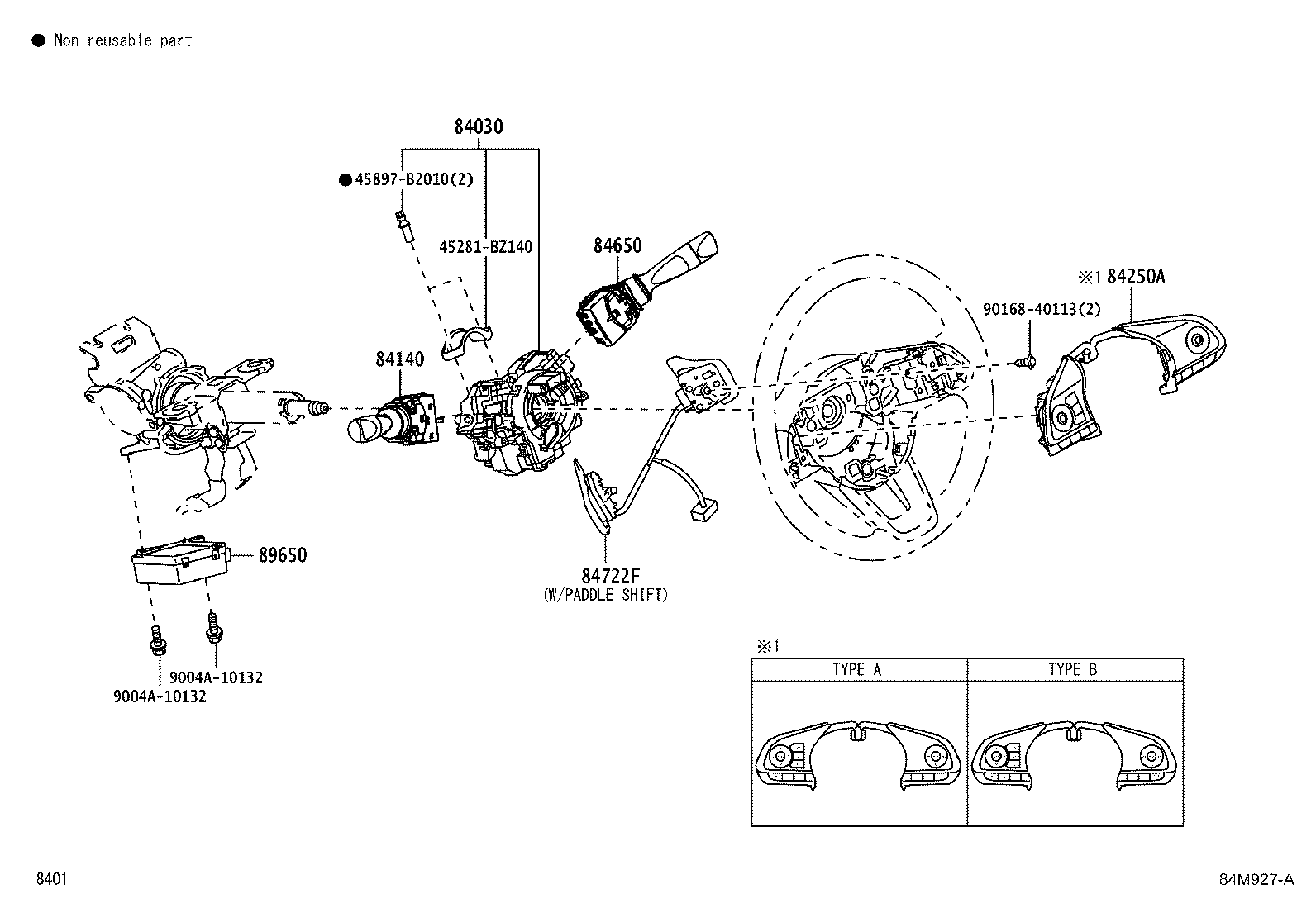

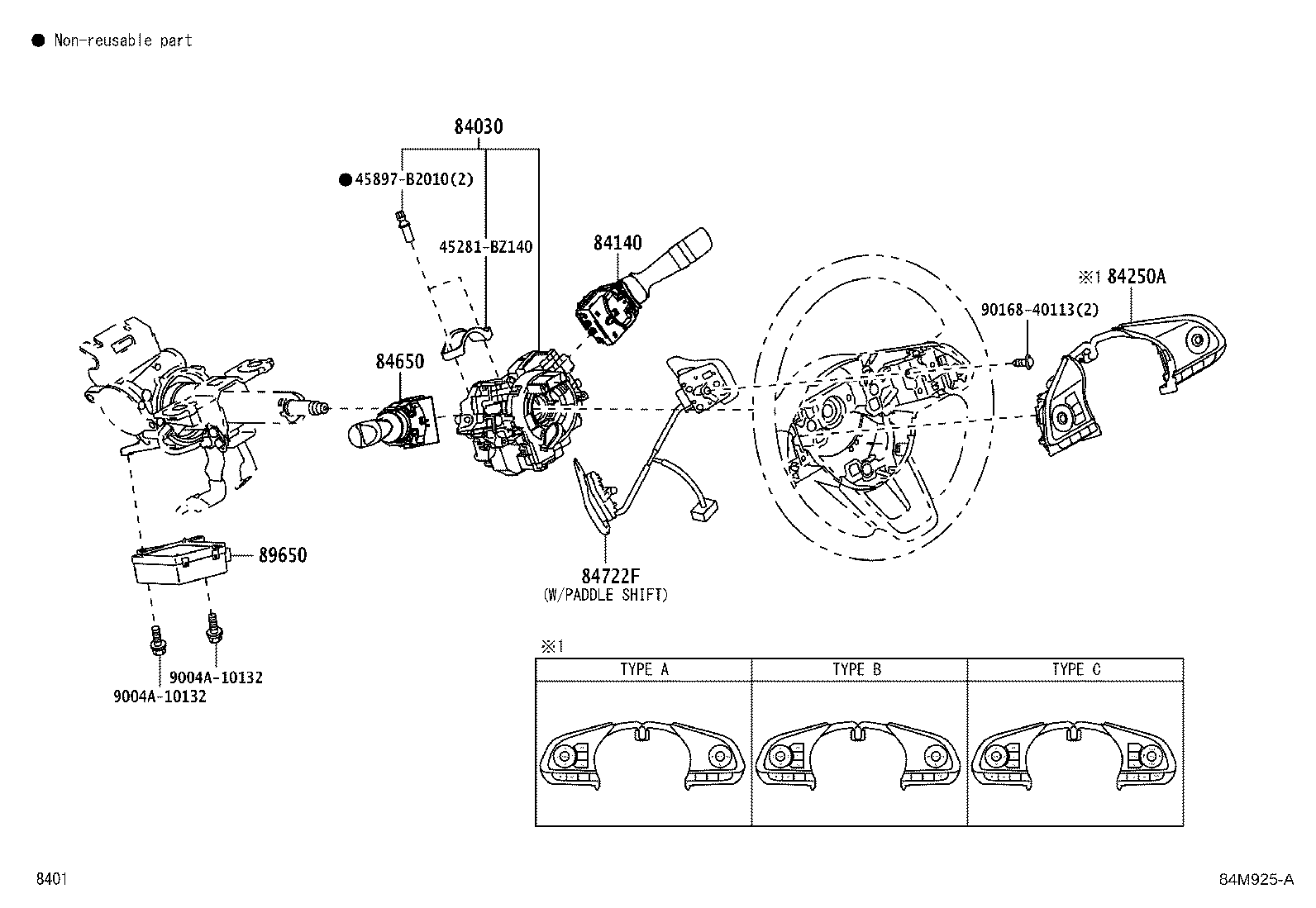

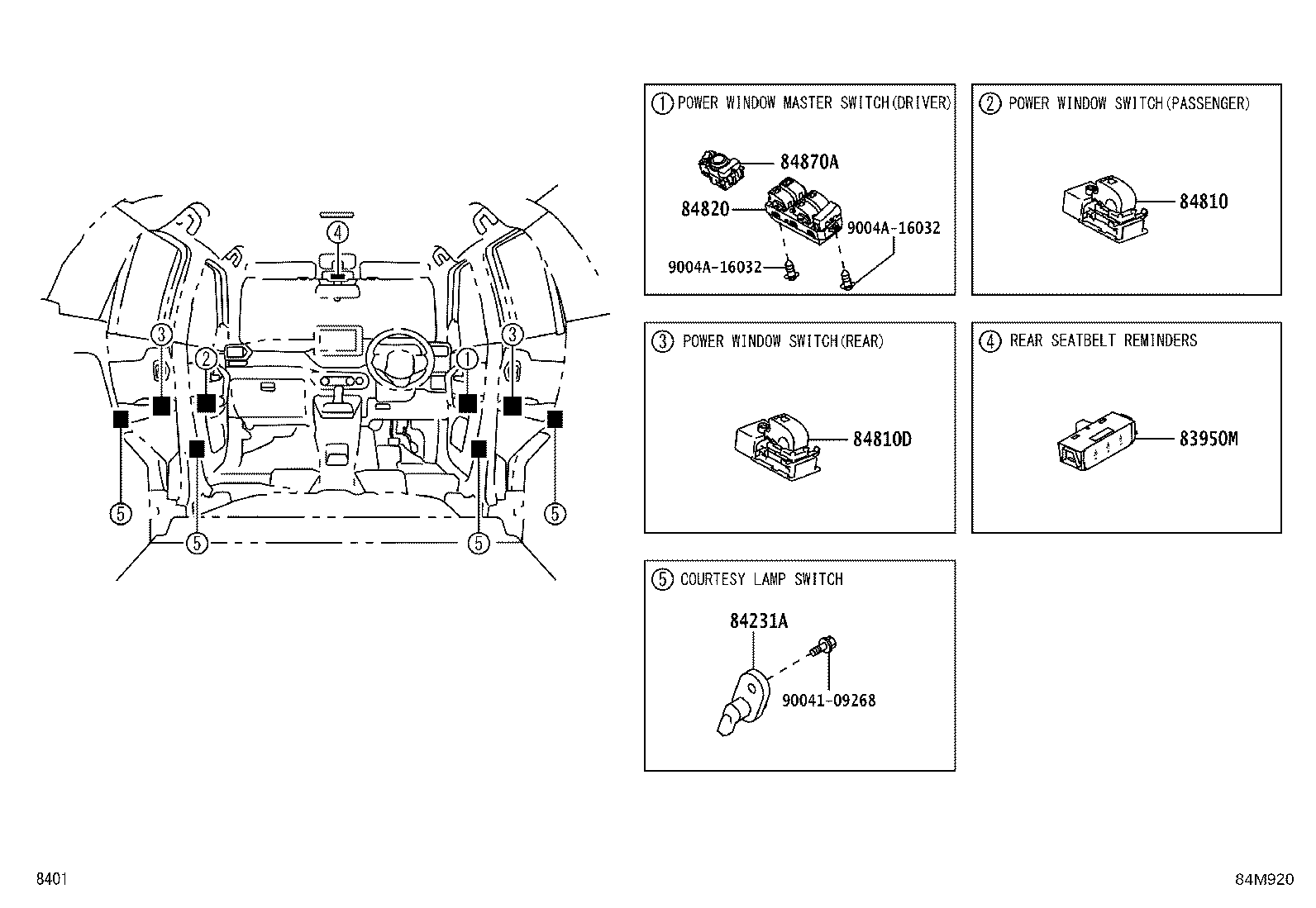

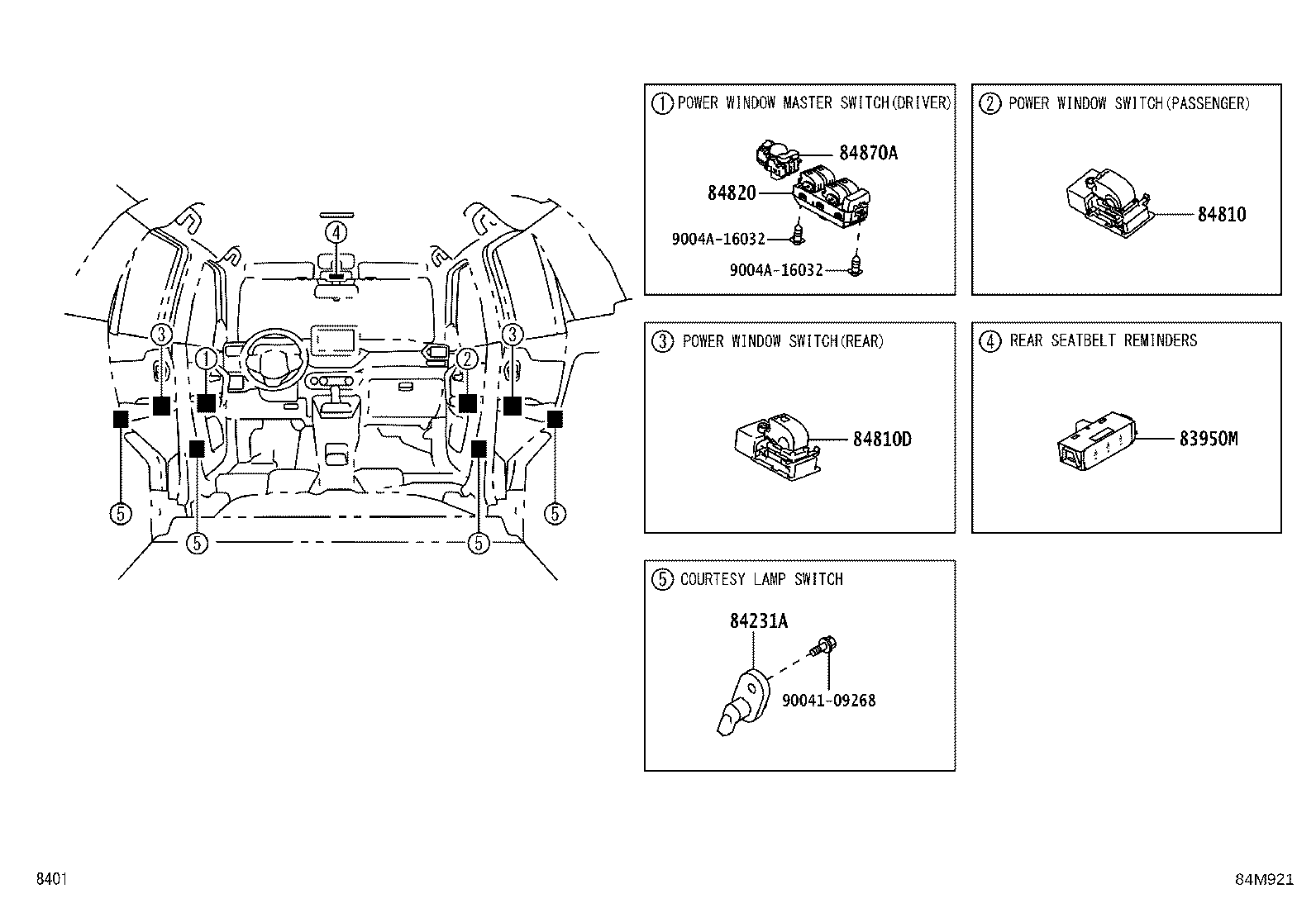

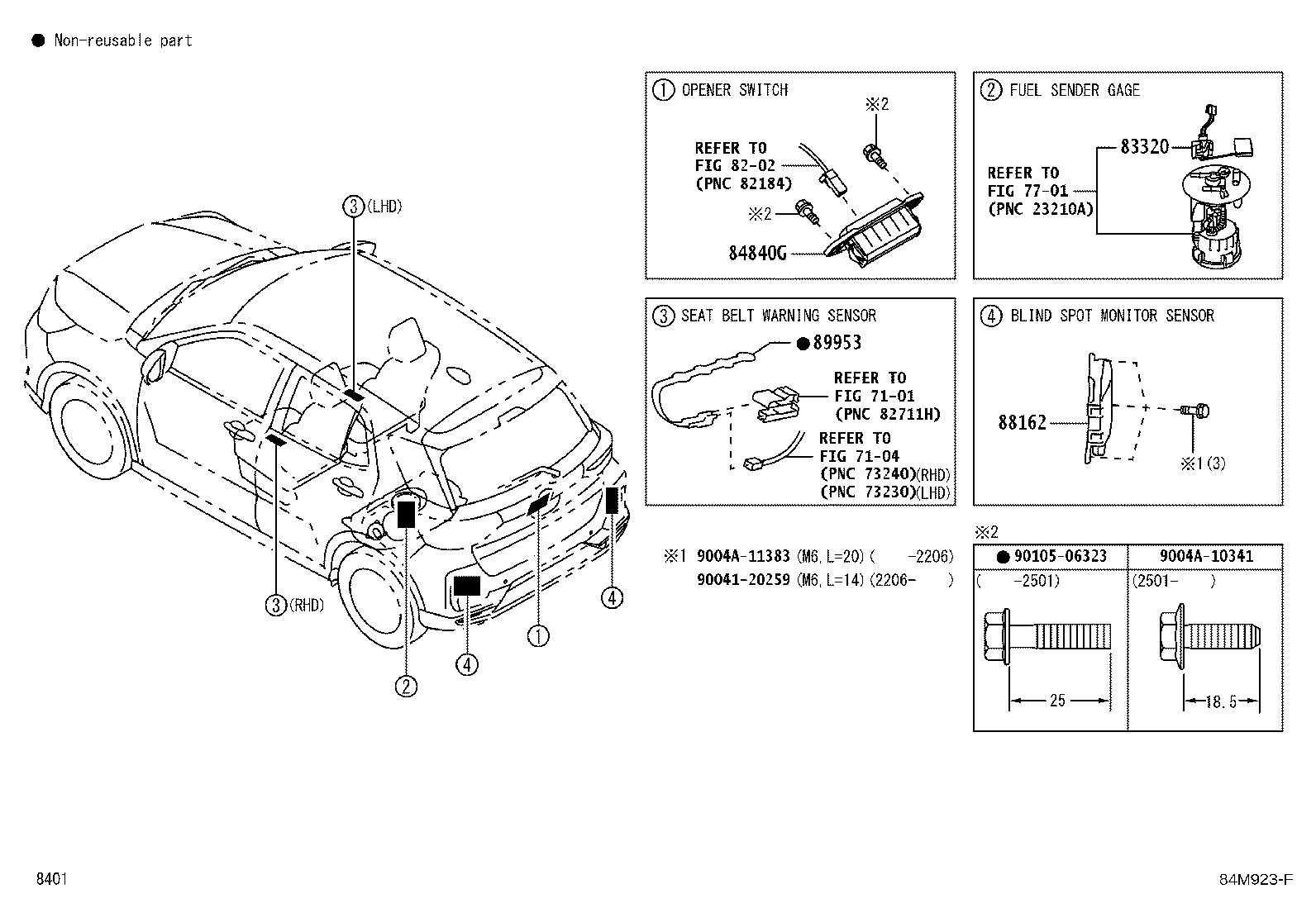

Figure 84Q039B 84Q039B 2021-04 → — Figure 84M905F 84M905F 2021-04 → — Figure 84M907 84M907 2021-04 → 2021-08 Figure 84M908A 84M908A 2021-08 → — Figure 84M910E 84M910E 2021-04 → 2026-06 Figure 84M910E 84M910E 2021-08 → 2026-07 Figure 84M913E 84M913E 2021-08 → 2026-07 Figure 84M913E 84M913E 2021-10 → 2026-08 Figure 84M915 84M915 2021-04 → 2026-06 Figure 84M916 84M916 2021-08 → — Figure 84O410B 84O410B 2021-08 → 2026-07 Figure 84O410B 84O410B 2021-10 → 2026-08 Figure 84M920 84M920 2021-04 → — Figure 84M921 84M921 2021-08 → — Figure 84M923F 84M923F 2021-04 → 2026-06 Figure 84M923F 84M923F 2021-08 → 2026-07 Figure 84M923F 84M923F 2021-10 → 2026-08 Figure 84M925A 84M925A 2021-04 → 2026-07 Figure 84M925A 84M925A 2021-08 → 2026-07 Figure 84M926C 84M926C 2021-08 → 2026-07 Figure 84M927A 84M927A 2021-08 → 2026-08 Figure 84M927A 84M927A 2021-10 → 2026-08 Figure 84M928C 84M928C 2021-08 → 2026-08 Figure 84M928C 84M928C 2021-10 → 2026-08

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
82600 Block Assy, Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84030 Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84248 Clamp, Center Cluster Module Switch Harness
84250A Switch Assy, Steering Pad
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84490H Switch Assy, Corner Pole Sensor
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84650 Switch Assy, Windshield Wiper
84722F Switch, Transmission Control
84746 Switch, Tire Pressure Warning
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85532 Socket, Usb Charger
85532B Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85916D Relay, Fog Lamp
85925 Relay, Radiator Fan
85925C Relay, Radiator Fan, NO.2
85926 Relay, Headlamp Dimmer
86530A Relay, Horn
88162 Sensor, Blind Spot Monitor, RH
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
