Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 6 illustrations

Illustrations

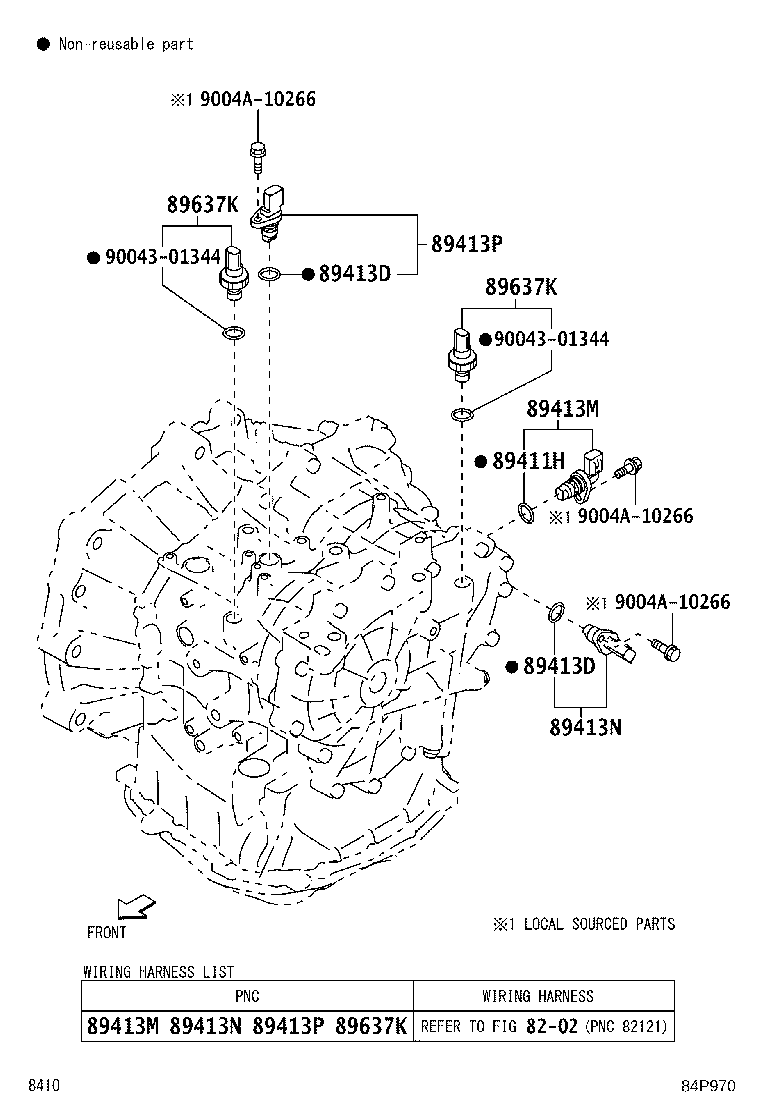

Figure 84P969 84P969 2021-04 → 2023-07 Figure 84P969 84P969 2021-04 → 2026-06 Figure 84P969 84P969 2021-04 → 2026-07 Figure 84P969 84P969 2021-04 → 2026-08 Figure 84P970 84P970 2022-11 → — Figure 84P970 84P970 2023-05 → —

Part groups

PNCDescription
89411H Ring, O
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413P Sensor, Transmission Revolution, (NIN)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
