Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09

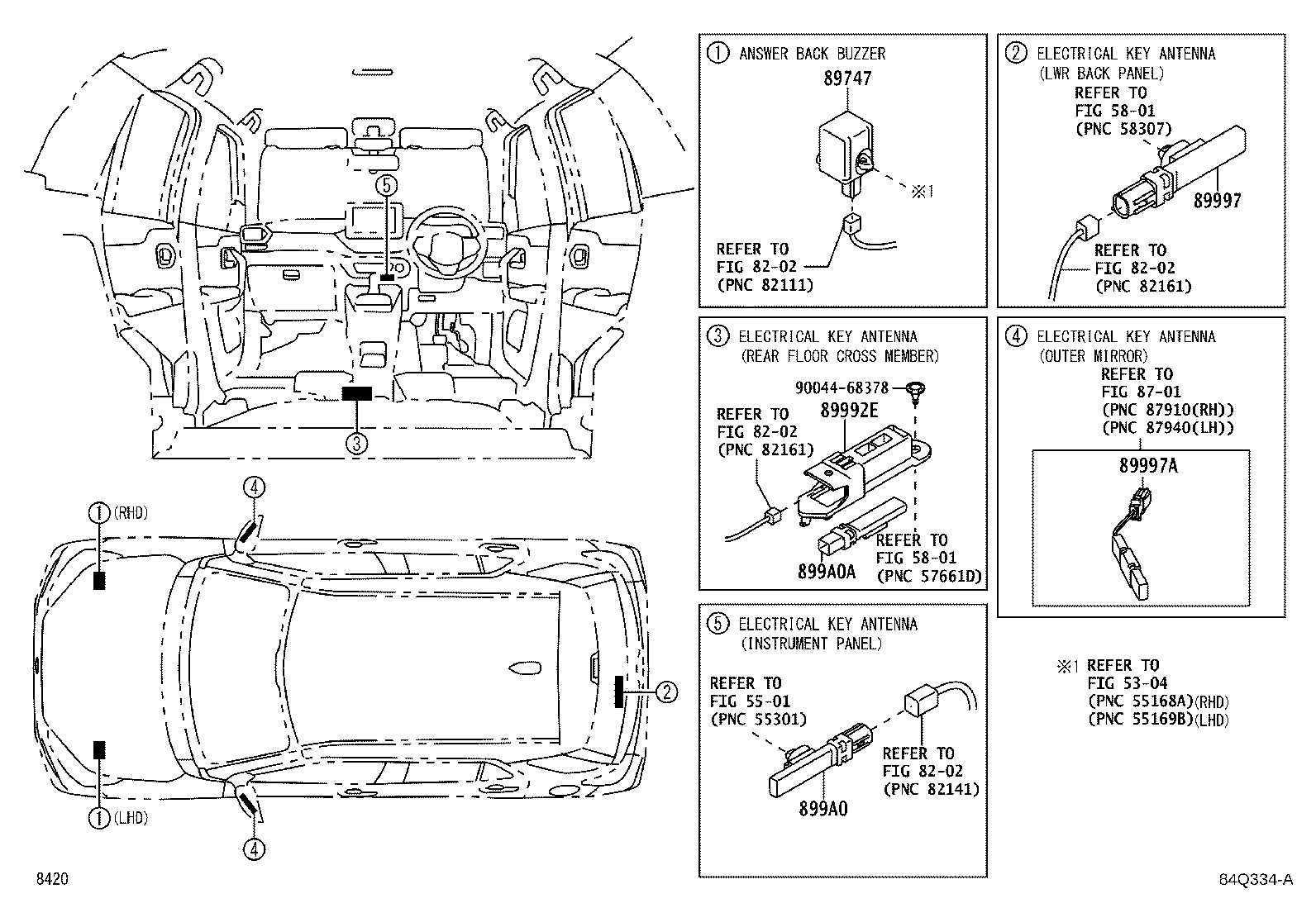

Wireless Door Lock
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89747 | Buzzer, Wireless Door Lock |
| 89992E | Case, Less Oscillator Electrical Key |
| 89997 | Antenna, Electrical Key |
| 89997A | Antenna, Electrical Key, NO.2 |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
