Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09
Telephone & Mayday

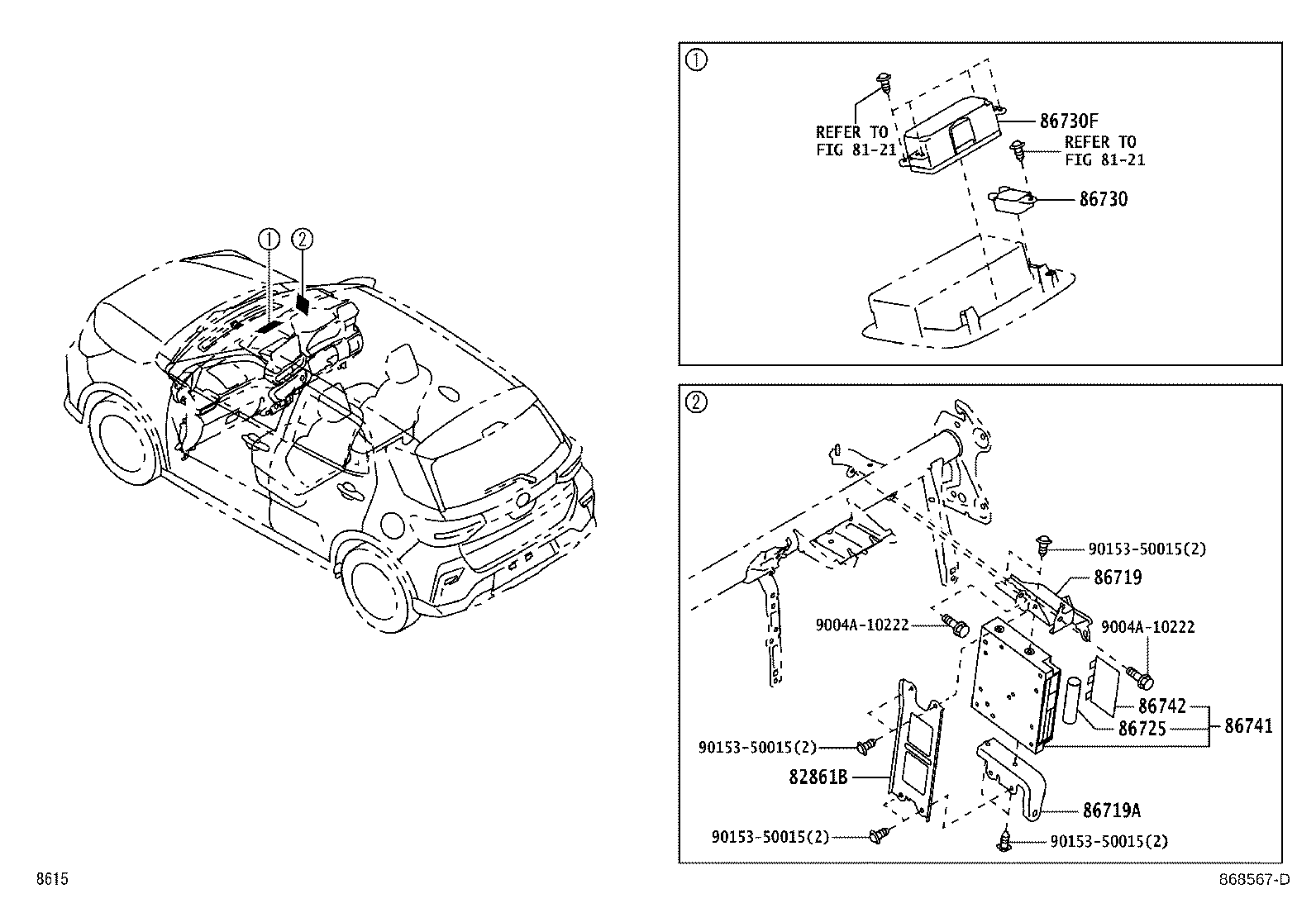

8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82861B | Bracket, Computer Integration |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86725 | Battery, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86730F | Microphone Assy |
| 86741 | Transceiver, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
